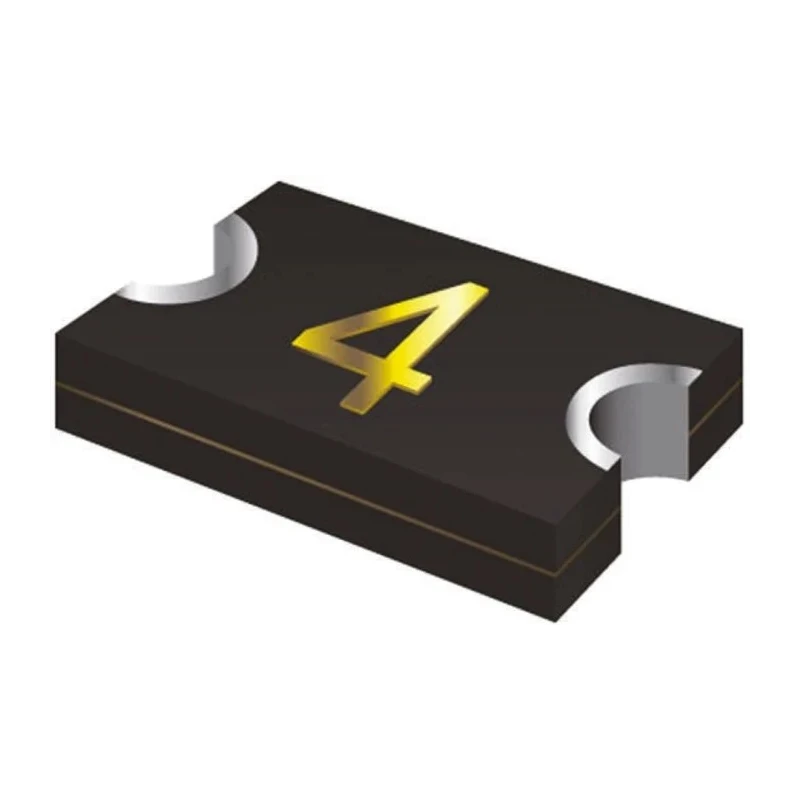

Bourns Resettable Fuse 0.1 A Current Rating 15V Voltage 0.5W Power Dissipation MF-PSMF010X-2
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 15V |
| Brand | Bourns |
| Height | 0.85mm |
| Length | 2.3mm |
| Model | MF-PSMF010X-2 |
| Width | 1.5mm |
| Current Rating | 40A |
| Series | MF-PSMF |
| Maximum Operating Temperature | 85°C |
| Package Type | Reel |
| Minimum Operating Temperature | -40°C |
| Package Size | 0805 |
| Trip Current | 0.3A |
| Power Dissipation | 0.5W |
| Terminal Material | Gold Plated Nickel |
| Standards/Approvals | RoHS, UL |
| Time to Trip | 1.5s |
| Hold Current | 0.1A |
| Minimum Resistance | 1Ω |
| Maximum Resistance | 7.5Ω |
Key Features
- The fuse features a quick trip time of 1.5 seconds to protect against overload.
- Compact 0805 package size reduces board space usage.
- Gold plated nickel terminals ensure reliable electrical connections.
- Power dissipation of 0.5W with a hold current of 0.1A enhances safety.
- Operates within a temperature range from -40°C to 85°C suitable for various environments.
- Designed for surface mount technology applications.
- Automatic reset capability allows maintenance-free protection over thousands of cycles.
- Suitable for USB port, mobile phones, PC motherboards, and electronic peripherals protection.
Product Description
Bourns MF-PSMF010X-2 Resettable Fuse rated at 0.1 A and 15V is engineered for reliable protection of electrical and electronic circuits against excessive currents. This resettable fuse rapidly switches from low resistance to a high resistance state during overload or short-circuit conditions and automatically resets once the fault condition is cleared.
The device features a compact 0805 size with a low profile of 0.85mm height and dimensions 2.3mm (length) by 1.5mm (width), allowing for space-saving board layouts. Gold plated nickel terminals provide excellent conductivity and durability.
It operates with a trip current of 0.3A and holds at 0.1A, with a quick 1.5 second reaction time to faults, delivering effective circuit protection. Power dissipation is rated at 0.5W, and the fuse withstands temperatures from -40°C to 85°C, suitable for a wide range of industrial and commercial electronic applications.
This resettable fuse is ideal for use in USB port protection for On the Go and USB 2.0 devices, PC motherboards, mobile phone batteries and ports, PDAs, digital cameras, and game console ports. Its maintenance-free automatic reset feature allows thousands of cycles without replacement, reducing downtime and maintenance costs.
The fuse provides compact protection saving board space with an 0805 footprint. It offers a very fast reaction to fault events protecting sensitive electronics. Manufactured with surface mount technology for easy assembly.
Complies with RoHS and UL standards ensuring quality and environmental compliance. Applications include security systems, power supplies, automotive, medical equipment, instrumentation, and telecommunications.
These features make the Bourns MF-PSMF010X-2 an essential component for electrical circuit protection in industrial, consumer electronics, and telecommunications sectors. Explore more products in the Resettable Fuse category on EnvMart for comprehensive electrical protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The current rating of this resettable fuse is 0.1 A.
The voltage rating for the Bourns MF-PSMF010X-2 is 15V.
This fuse can operate at a maximum temperature of 85°C.
The minimum operating temperature for this model is -40°C.
The dimensions of this fuse are 2.3mm in length, 1.5mm in width, and it has a height of 0.85mm.
The trip current for the Bourns MF-PSMF010X-2 is 0.3 A.
This resettable fuse has a trip time of 1.5 seconds.
The power dissipation rating for the Bourns MF-PSMF010X-2 is 0.5W.
The terminals of this model are made of gold plated nickel.
This resettable fuse complies with RoHS and UL standards.
It is suitable for applications such as USB port protection, mobile phones, PC motherboards, and various electronic peripherals.
This model comes in a reel package type.
