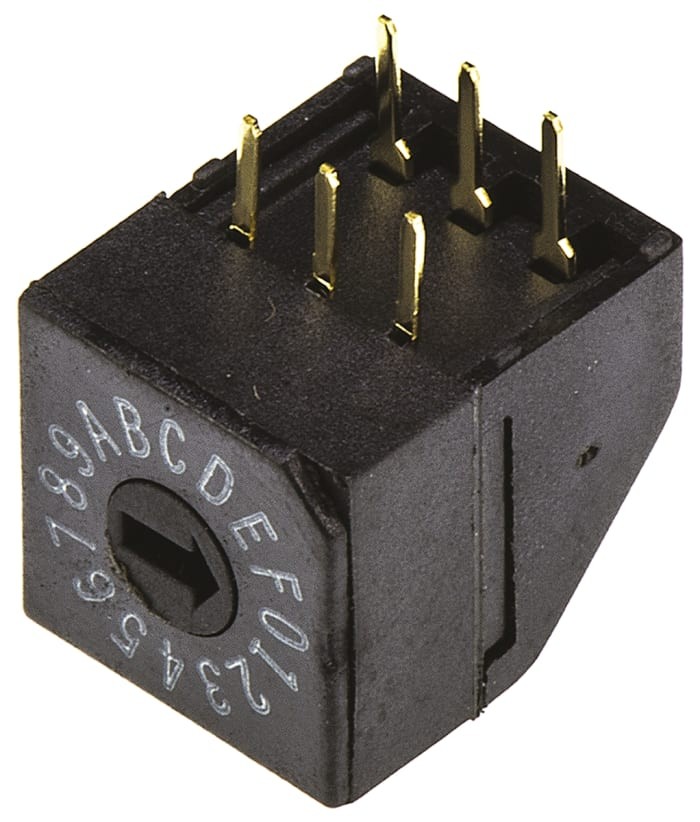

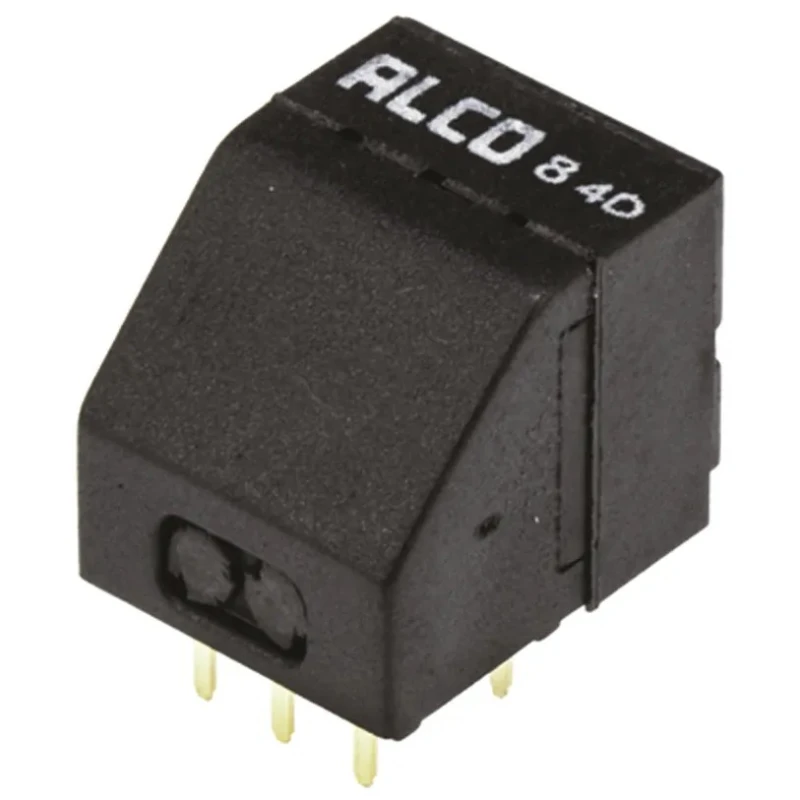

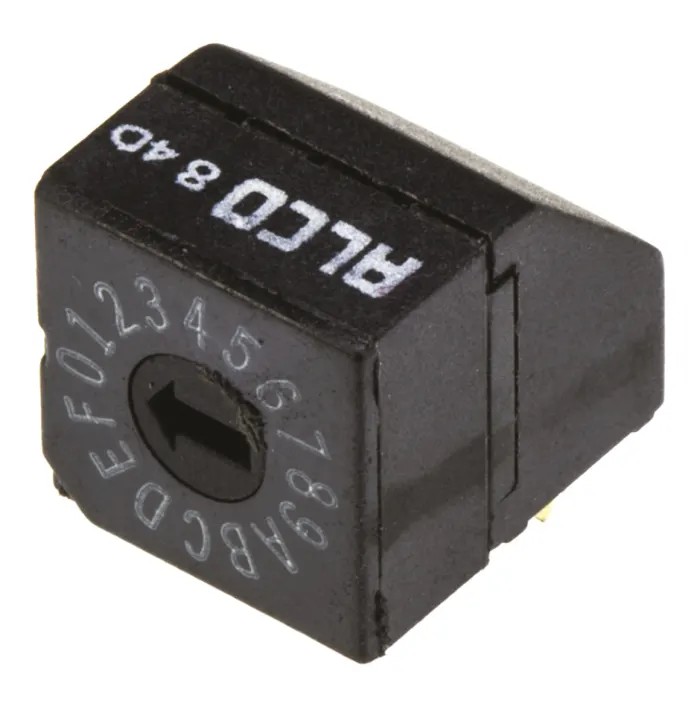

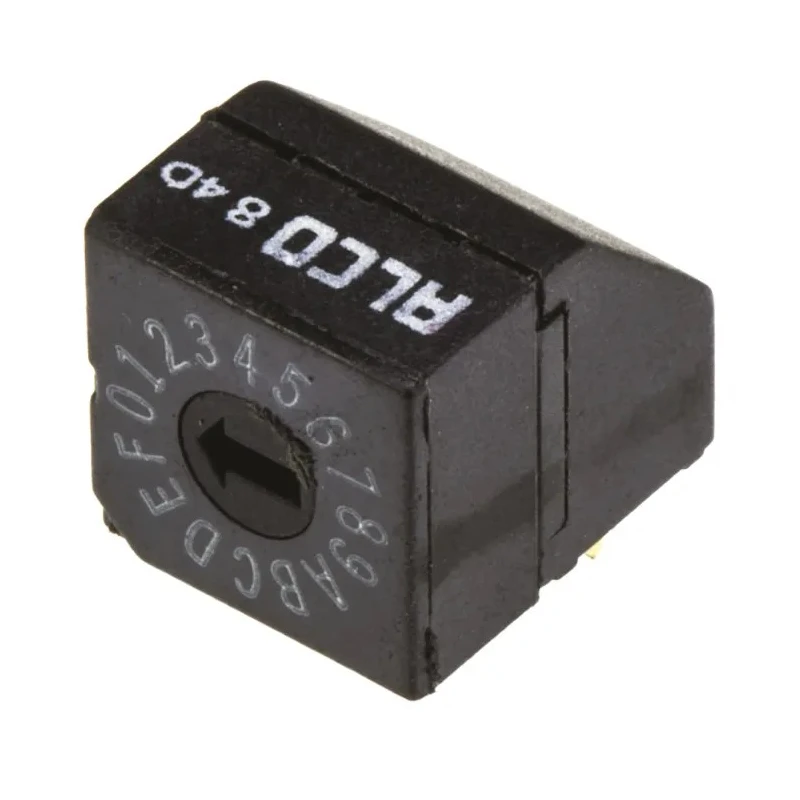

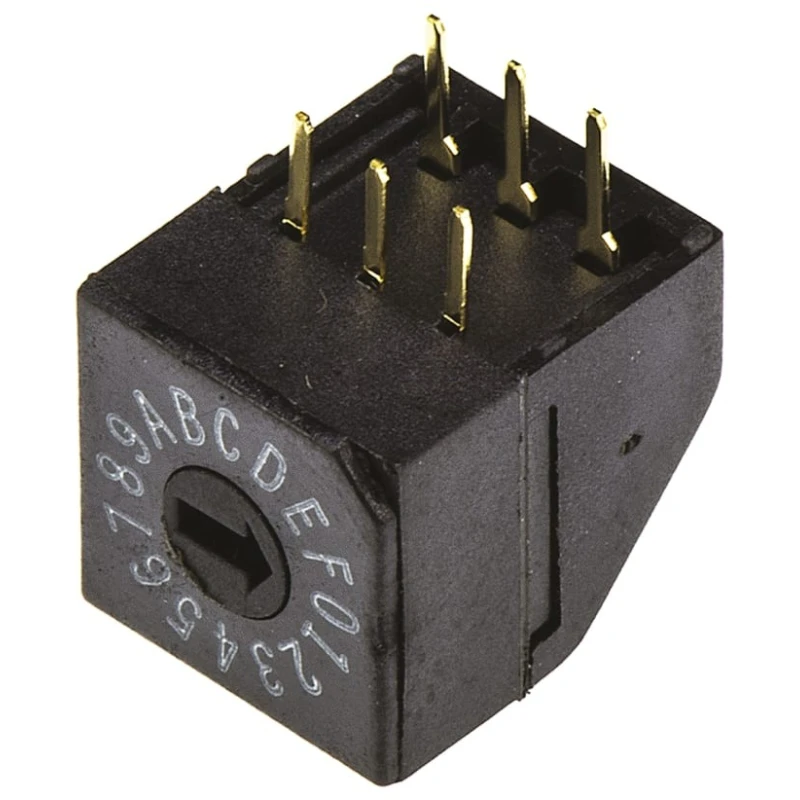

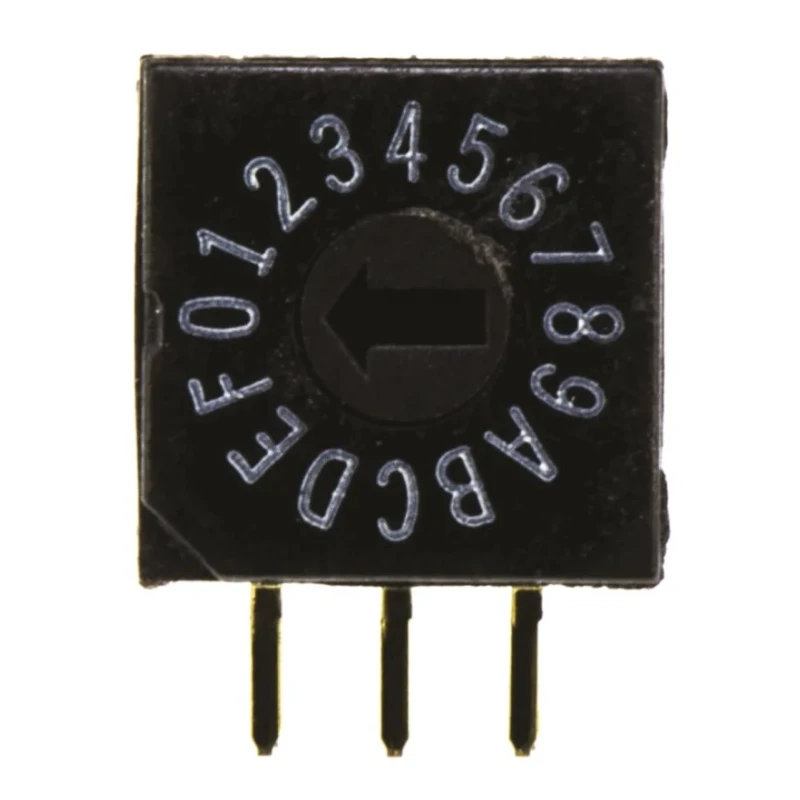

TE Connectivity Rotary Flush Rotary Coded DIP Switch DRD16RAE04
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Temperature range | -30 to +85°C |
| Model | DRD16RAE04 |
| Actuator Type | Rotary Flush |
| Contact Rating | 0.4VA @ 20Vdc max |
| Contact Resistance | 50mΩ max |
| Life Expectancy | 10000 rotations |
| TE Connectivity 10 Way Through Hole DIP Switch 10P, Rotary Flush ActuatorBrand | TE Connectivity |
| Hartmann Rotary Coded DIP SwitchBrand | Hartmann |
Key Features
- Features a rotary flush actuator for easy operation.
- Contact rating of 0.4VA at 20Vdc maximum ensures electrical safety.
- Low contact resistance rated at 50 milliohms maximum provides efficient conductivity.
- Designed for a life expectancy of 10,000 rotations for long service life.
- Operates reliably in a wide temperature range from -30 to +85 degrees Celsius.
- Resistant to wave soldering at 285 degrees Celsius for 5 seconds on 1.5mm PCB.
- Gold plated contacts enhance corrosion resistance and connectivity.
- Resistant to ultrasound cleaning with solvent containing 10% flux contamination.
Product Description
TE Connectivity DRD16RAE04 Rotary Flush Rotary Coded DIP Switch is a high-quality miniature rotary encoded switch designed for precise electrical switching applications. It features a rotary flush actuator type for smooth and accessible operation, suitable for various industrial, automation, and electrical control systems.
This switch supports a contact rating of 0.4VA at 20Vdc maximum, providing sufficient power handling for sensitive circuits. The contact resistance is maintained below 50 milliohms, ensuring minimal electrical loss and high reliability in signal transmission.
Built for durability, the DRD16RAE04 offers an impressive life expectancy of 10,000 rotations. It operates efficiently within a wide temperature range from -30 to +85 degrees Celsius, making it well-suited for use in diverse environmental conditions.
Manufactured with gold plated contacts, this DIP switch guarantees excellent corrosion resistance and longevity. It is also engineered to withstand a 5-second resistance to wave soldering at 285°C when mounted on a 1.5mm PCB, which ensures robustness during the assembly process.
The component is additionally resistant to ultrasound cleaning in solvent solutions with 10% flux contamination, enhancing its suitability for industrial cleaning processes. Its compact miniature design allows for easy PCB mounting in limited space environments.
Rotary flush actuator for user-friendly switching. Contact rating: 0.4VA at 20Vdc max for safe usage. Contact resistance maximum of 50 milliohms for efficiency. Rated for 10,000 rotations to ensure long-term reliability.
Wide operational temperature range from -30 to +85 degrees Celsius. Gold plated contacts for corrosion resistance. Wave soldering resistant at 285°C for 5 seconds on 1.5mm PCB. Resistant to ultrasound cleaning with flux contaminated solvent.
This TE Connectivity Rotary Coded DIP Switch is ideal for industrial automation, electronic control systems, instrumentation, and other applications requiring reliable rotary switching. Explore EnvMart's extensive inventory of TE Connectivity switches and electronic components for premium quality products suited for demanding industrial environments.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact rating is 0.4VA at a maximum of 20Vdc, ensuring safe usage for sensitive circuits.
The maximum contact resistance is rated at 50 milliohms, which provides efficient conductivity.
This switch has a life expectancy of 10,000 rotations, contributing to its long-term reliability.
It operates efficiently within a temperature range of -30 to +85 degrees Celsius, suitable for various environmental conditions.
It features a rotary flush actuator type, designed for smooth and accessible operation.
Yes, it is resistant to wave soldering at 285 degrees Celsius for 5 seconds when mounted on a 1.5mm PCB.
Yes, it is resistant to ultrasound cleaning in solvent solutions containing 10% flux contamination.
The contacts are gold plated, which enhances corrosion resistance and connectivity.
It is ideal for industrial automation, electronic control systems, instrumentation, and other applications requiring reliable rotary switching.
The country of origin for the TE Connectivity Rotary Flush Rotary Coded DIP Switch DRD16RAE04 is India.
Its compact miniature design allows for easy PCB mounting in limited space environments.
The low contact resistance of 50 milliohms maximum ensures minimal electrical loss and high reliability in signal transmission.
