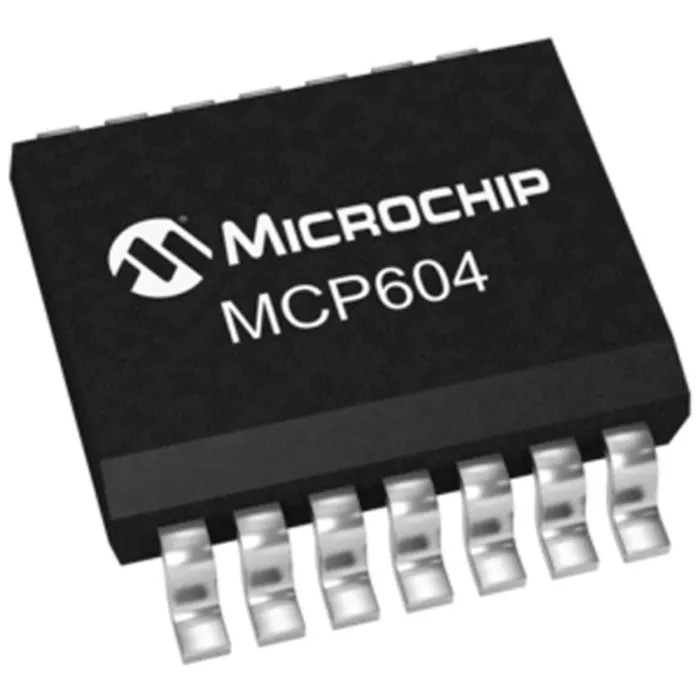

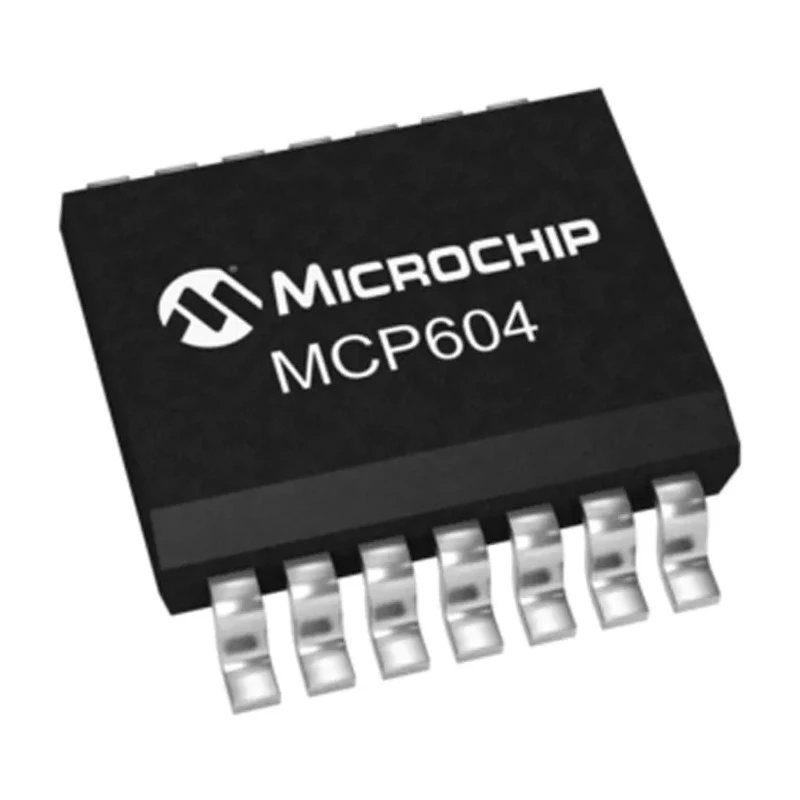

Microchip Operational Amplifier MCP604-I/SL, 2.8 MHz Gain Bandwidth, 14-Pin SOIC, 3-5V Supply
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.25mm |
| Length | 8.65mm |
| Model | MCP604-I/SL |
| Width | 3.9mm |
| Mount Type | Surface |
| Series | MCP604 |
| Output Current | 30mA |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 4 |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | 3V |
| GBP - Gain Bandwidth Product | 2.8MHz |
| Input Bias Current | 1 pA |
| Vos - Input Offset Voltage | 2 mV |
| Slew Rate | 2.3V/μs |
Key Features
- Operates within 3 to 5 volts supply voltage range.
- Input bias current is extremely low at 1 picoampere.
- Output current capability of 30 milliamperes allows versatile applications.
- Slew rate of 2.3 volts per microsecond supports fast response.
- Wide operating temperature range from -40°C to 85°C ensures reliability.
- RoHS compliant for environmental safety.
- Designed for surface mount with SOIC packaging.
- Suitable for industrial and consumer electronic circuits.
Product Description
Microchip MCP604-I/SL is a 4-channel operational amplifier designed for various semiconductor applications. It features an impressive gain bandwidth product of 2.8 MHz, making it suitable for precision signal amplification. Operating with a supply voltage range from 3V to 5V, this device supports low voltage circuits ensuring energy efficiency.
The MCP604 series offers an ultra-low input bias current of 1 pA and low input offset voltage of 2 mV, which enhances accuracy in analog electronic circuits. Its slew rate of 2.3 V/μs ensures quick transient response, suitable for dynamic signal processing.
Packaged in a compact 14-pin SOIC surface mount form factor, with dimensions measuring 8.65 mm length, 3.9 mm width, and 1.25 mm height, it supports high-density PCB designs. The maximum operating temperature of 85°C and minimum of -40°C allow it to function reliably in harsh environments.
The output current capability of 30mA allows driving moderate loads directly. It meets RoHS environmental standards, making it compliant with global environmental regulations. Operates within 3 to 5 volts supply voltage range.
Input bias current is extremely low at 1 picoampere. Output current capability of 30 milliamperes allows versatile applications. Slew rate of 2.3 volts per microsecond supports fast response. Wide operating temperature range from -40°C to 85°C ensures reliability.
RoHS compliant for environmental safety. Compact dimensions: 8.65 mm length, 3.9 mm width, and 1.25 mm height. Designed for surface mount with SOIC packaging. Suitable for industrial and consumer electronic circuits.
This operational amplifier is ideal for industrial electronics, telecommunications, instrumentation, and audio circuits that demand precision and reliability. It is a versatile component used in both new designs and repair applications, offering robust performance in a compact footprint.
For further technical details, reference technical datasheets, application notes, and RoHS certificates are recommended. Explore more Operational Amplifiers from Microchip and other semiconductor devices on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MCP604-I/SL has a gain bandwidth product of 2.8 MHz, making it suitable for precision signal amplification.
This model operates within a supply voltage range of 3V to 5V, ensuring compatibility with low voltage circuits.
It has an output current capability of 30 milliamperes, allowing it to drive moderate loads directly.
The input bias current is extremely low at 1 picoampere, enhancing accuracy in analog electronic circuits.
The slew rate is 2.3 volts per microsecond, which supports fast response for dynamic signal processing.
This operational amplifier operates reliably within a temperature range of -40°C to 85°C.
The MCP604-I/SL has dimensions of 8.65 mm in length, 3.9 mm in width, and 1.25 mm in height.
It is designed for surface mount and comes in a 14-pin SOIC package, suitable for high-density PCB designs.
This operational amplifier is RoHS compliant, ensuring it meets environmental safety standards.
This model features 4 channels, making it versatile for various applications.
The input offset voltage is 2 mV, which contributes to its accuracy in signal processing.
It is suitable for industrial electronics, telecommunications, instrumentation, and audio circuits that demand precision and reliability.
