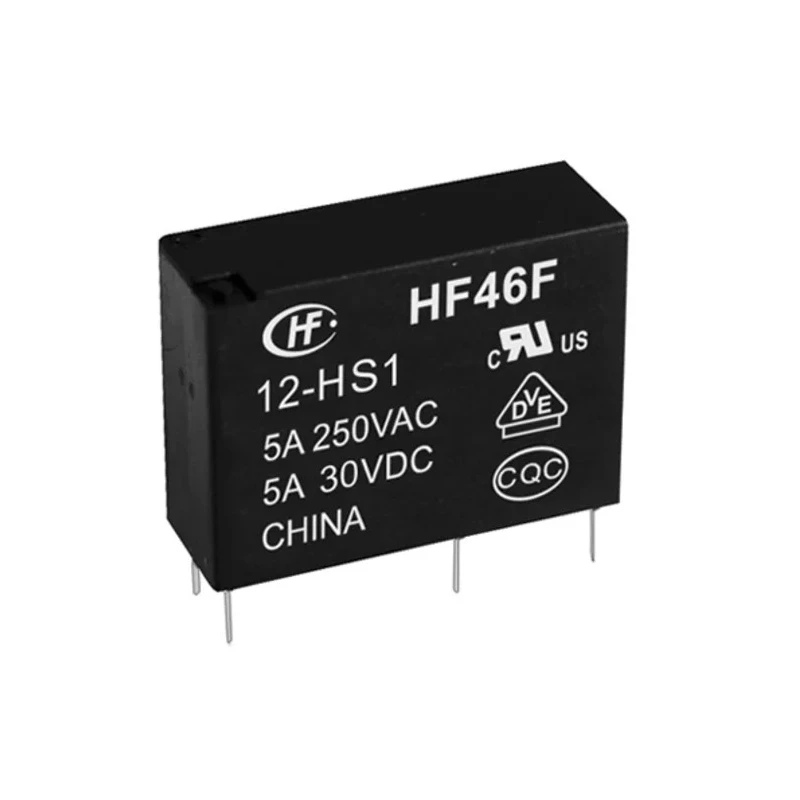

Hongfa Europe GMBH Power Relay PCB Mount SPST 24V DC Coil 5A Switching Current HF46F/24-HS1F(610)
Specifications
| Country of Origin | China |
|---|---|
| Brand | Hongfa Europe GMBH |
| Height | 15.3mm |
| Length | 20.5mm |
| Model | HF46F/24-HS1F(610) |
| Width | 7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | HF46F |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 5A |
| Terminal type | PCB Pin |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 2.9kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 277V |
| Coil Power | 200mW |
Key Features
- The relay supports high power switching up to 200mW coil power.
- It is constructed with silver alloy contacts for reliable conductivity.
- Operating temperature ranges from -40°C to 85°C suitable for harsh environments.
- Designed for subminiature intermediate power relay use with plastic sealed construction.
- The relay features a coil resistance of 2.9kΩ with a robust isolation of 10KV between coil and contact.
- It has compact dimensions of 20.5mm length, 7mm width, and 15.3mm height for space-efficient PCB mounting.
- Suitable for automotive, industrial machinery, medical equipment, telecommunication, and household appliances.
- Ensures durability of up to 5 million switching cycles for long service life.
Product Description
Hongfa Europe GMBH HF46F/24-HS1F(610) Power Relay is a high-performance PCB mount power relay with SPST contact configuration. Featuring a 24V DC coil and a switching current capacity of 5A, this relay is ideal for robust electronic and electrical control applications.
With a coil power rating of 200mW and a coil resistance of 2.9kΩ, it ensures efficient operation with minimal energy consumption. It withstands operating temperatures between -40°C and 85°C, making it suitable for industrial and commercial environments.
The relay uses silver alloy contacts with a contact resistance of 100mΩ, ensuring excellent conductivity and minimal signal degradation. Its compact dimensions (20.5mm length, 7mm width, 15.3mm height) allow integration into dense PCB layouts with ease.
Thanks to its plastic sealed construction and compliance with RoHS standards, the relay is environmentally friendly and reliable for long-term use. The device provides isolation voltage of 10KV between coil and contacts, ensuring safety and noise immunity in control circuits.
Applications include automotive engines, household appliances, industrial machinery, medical equipment, and telecommunication systems where precise and reliable switching is required. The relay's durability rating of up to 5 million cycles guarantees extensive operational lifetime under continuous use.
The relay supports high power switching up to 200mW coil power. Constructed with silver alloy contacts for reliable conductivity. Operation temperature range of -40°C to 85°C suits harsh environments. Plastic sealed construction offers environmental protection and durability.
Isolation between coil and contact up to 10KV enhances safety. Compact form factor measuring 20.5mm x 7mm x 15.3mm suitable for PCB mounting. Durability of up to 5 million operational cycles. Applications include automotive, industrial, medical, and telecom equipment.
Explore more Power Relays and electronic components at EnvMart for optimized industrial and commercial electrical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This power relay has a switching current capacity of 5A, making it suitable for various electronic control applications.
The coil voltage for this relay is 24V DC, which is essential for its operation.
It has compact dimensions of 20.5mm in length, 7mm in width, and 15.3mm in height, making it suitable for PCB mounting.
The relay operates within a temperature range of -40°C to 85°C, allowing it to function in harsh environments.
This model features an SPST (Single Pole Single Throw) contact configuration, which is common for simple switching applications.
The coil resistance of this relay is 2.9kΩ, which contributes to its efficient operation.
The contacts are made of silver alloy, ensuring reliable conductivity and minimal signal degradation.
This relay provides an isolation voltage of up to 10KV between the coil and contacts, enhancing safety in control circuits.
This relay is suitable for various applications, including automotive, industrial machinery, medical equipment, and telecommunication systems.
The coil power rating for this relay is 200mW, which indicates its low energy consumption during operation.
The contact resistance is rated at 100mΩ, which helps ensure efficient performance in switching operations.
Yes, this relay complies with RoHS standards, making it environmentally friendly and suitable for various applications.
