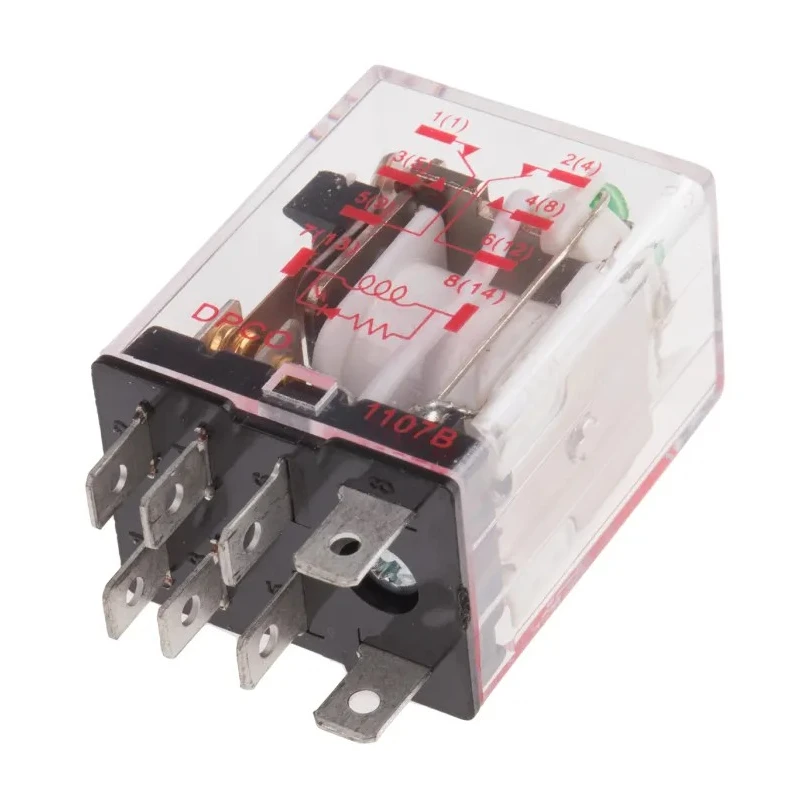

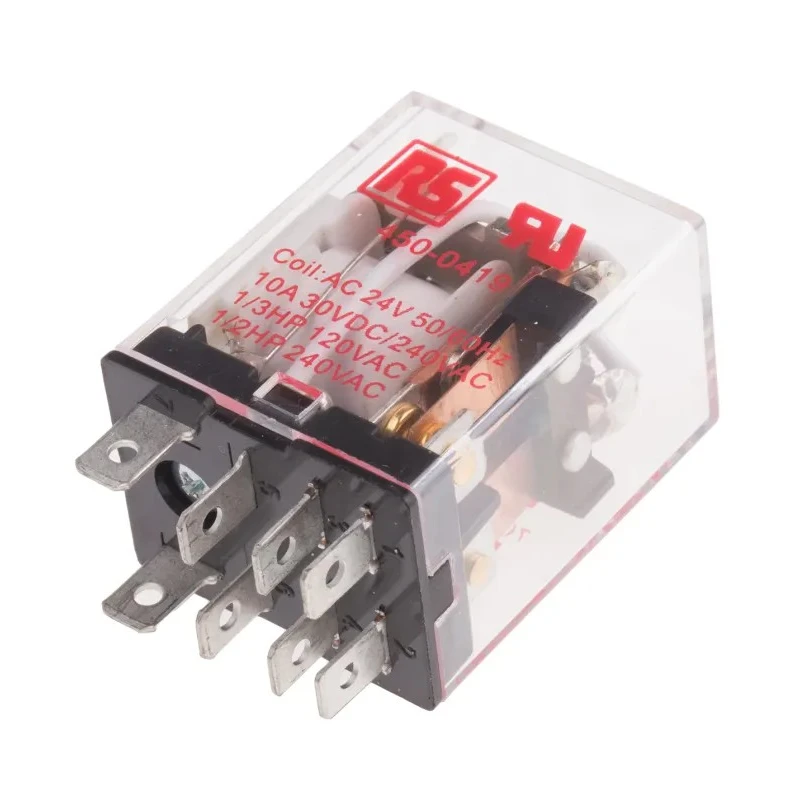

RS PRO Plug-in Power Relay 24V ac Coil 10A Switching Current DPDT 450-0419

RS PRO 450-0419 Plug-in Power Relay is designed for industrial and electrical automation applications requiring reliable and precise switching performance. Equipped with a 24V AC coil, it provides a steady and efficient control voltage that activates the relay contacts with minimal coil power consumption of 1.2 watts.

The relay features a DPDT (Double Pole Double Throw) contact configuration, allowing it to switch two independent circuits simultaneously. Its plug-in mount style with PCB pin terminals simplifies installation and PCB integration in control panels and automation systems.

This relay supports switching currents up to 10 amps, making it suitable for controlling moderate power loads in industrial machines, HVAC equipment, and commercial electrical devices. The contact material is silver alloy, offering excellent conductivity and resistance to wear, while the maximum contact resistance remains low at 50 milliohms, ensuring efficient signal transfer.

Operating in a temperature range from -45°C to 55°C, the relay withstands harsh environmental conditions common in industrial and laboratory settings. The compact size with dimensions of 28mm in length, 36mm in height, and 21.5mm in width facilitates space-efficient design in electrical enclosures.

Durability is enhanced by its mechanical life rating of 10 million operations and electrical life expectancy of 100000 cycles, ensuring long-term reliability and reduced maintenance. The relay holds certifications for CE, EN, and UL standards, confirming its adherence to international quality and safety requirements.

Coil voltage is 24 volts AC, suitable for industrial control systems. Double Pole Double Throw (DPDT) contact configuration enables versatile switching applications. Plug-in mount with PCB pin terminals ensures easy installation and replacement.

Rated switching current is 10 amperes for reliable load handling. Operating temperature range from -45°C to 55°C supports diverse environmental conditions. Compact dimensions: 28mm length, 36mm height, and 21.5mm width. Coil resistance measured at 180 ohms with a power rating of 1.2 watts.

Contact material is silver alloy with maximum contact resistance of 50 milliohms. Designed for durability with mechanical life rated at 10 million operations and electrical life of 100000 cycles. Complies with CE, EN, and UL standards for safety and quality assurance.

This RS PRO power relay is ideal for use in industrial automation, manufacturing machinery, HVAC systems, commercial electrical equipment, and other control applications that demand precise switching at moderate currents. Browse the extensive EnvMart catalog for more high-quality Power Relays and electrical components suitable for your industrial needs.
