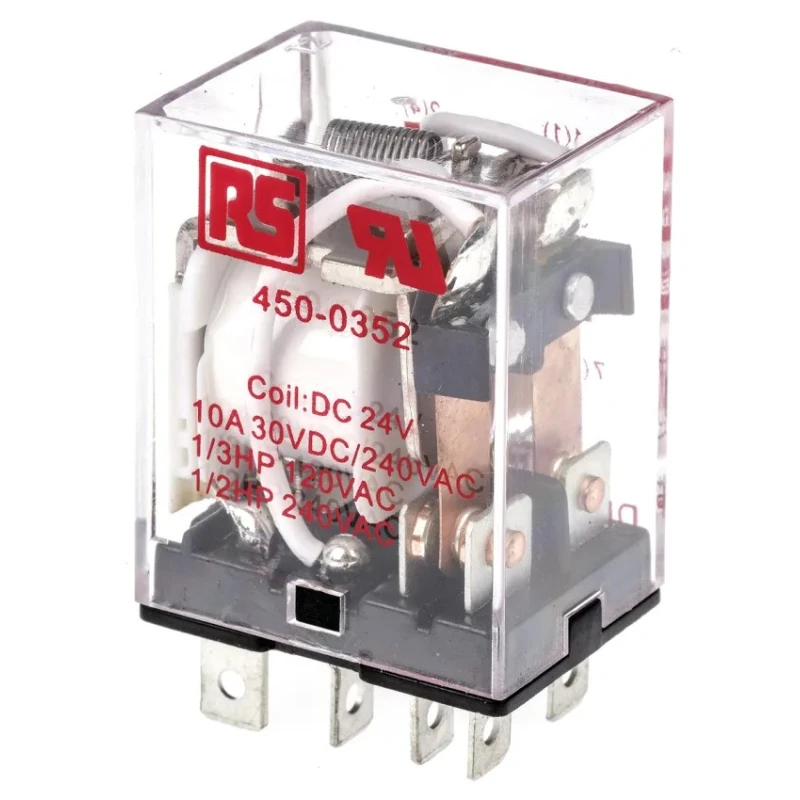

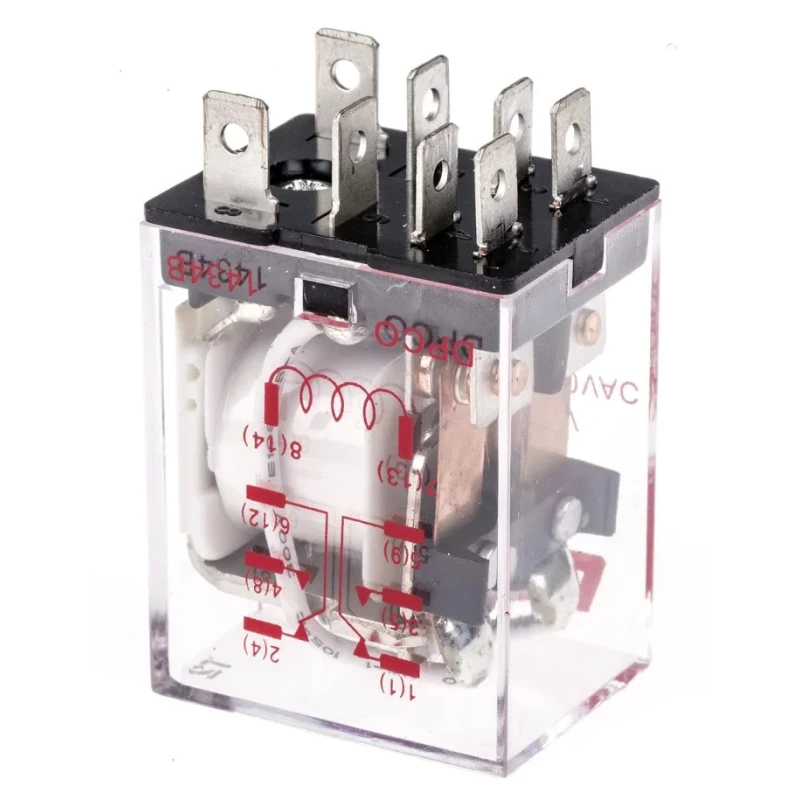

RS PRO Plug-in Power Relay 24V dc Coil 10A Switching Current DPDT 450-0352

RS PRO 450-0352 is a high-quality plug-in power relay featuring a 24V dc coil and double pole double throw (DPDT) contact configuration. This relay is designed for demanding industrial, electrical, and automation applications where reliable switching of loads up to 10A current is required.

With a plug-in mount and PCB pin terminals, installation is straightforward and ensures secure electrical connections. It supports a switching power of 2.4 kVA with AC switching voltages up to 240V and DC switching voltages up to 30V, suitable for a wide range of control circuits.

Constructed with silver alloy contacts, the relay offers minimal contact resistance, rated at a maximum of 50 milliohms, which contributes to efficient electrical performance and reduced wear. It operates effectively within a temperature range from -45°C to 70°C, making it suitable for harsh environmental conditions.

The coil resistance of 650Ω and coil power consumption of 900mW provide efficient energization of the relay coil. The device's lifespan is industrial grade, featuring a mechanical durability of 10 million operations and an electrical durability of 100,000 operations.

Its compact dimensions of 36mm in height, 28mm in length, and 21.5mm in width help save valuable panel space in control cabinets and other electrical assemblies. The relay complies with CE, EN, and UL standards, ensuring safety and quality adherence.

This power relay is ideal for automation systems, industrial control panels, HVAC equipment, manufacturing machinery, and other electrical switching applications requiring dependable performance.

Designed for industrial applications requiring DPDT contact configuration. Plug-in mount type with PCB pin terminals for easy installation. Operates reliably between -45°C and 70°C ambient temperatures. Switching capacity includes 2.4 kVA power and voltages up to 240V AC or 30V DC.

Constructed with silver alloy contact material ensuring low contact resistance of 50mΩ max. High mechanical life of 10 million operations and electrical life of 100,000 operations. Coil resistance rated at 650Ω with coil power consumption of 900mW.

Compact dimensions: 36mm height, 28mm length, 21.5mm width for space-saving layouts. Explore more Power Relays and electrical components within the RS PRO range at EnvMart for your industrial automation and control needs.
