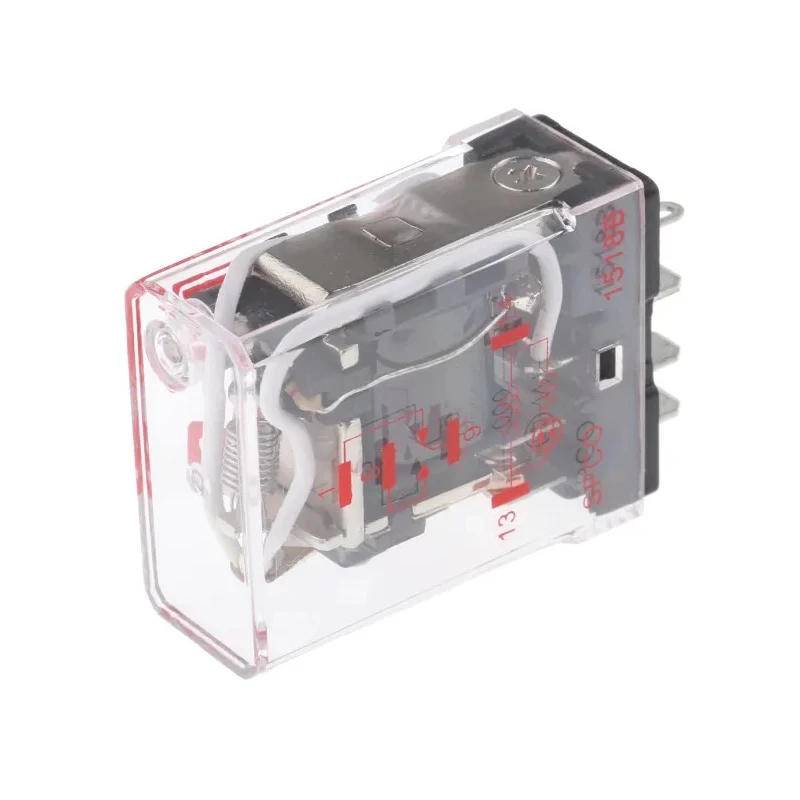

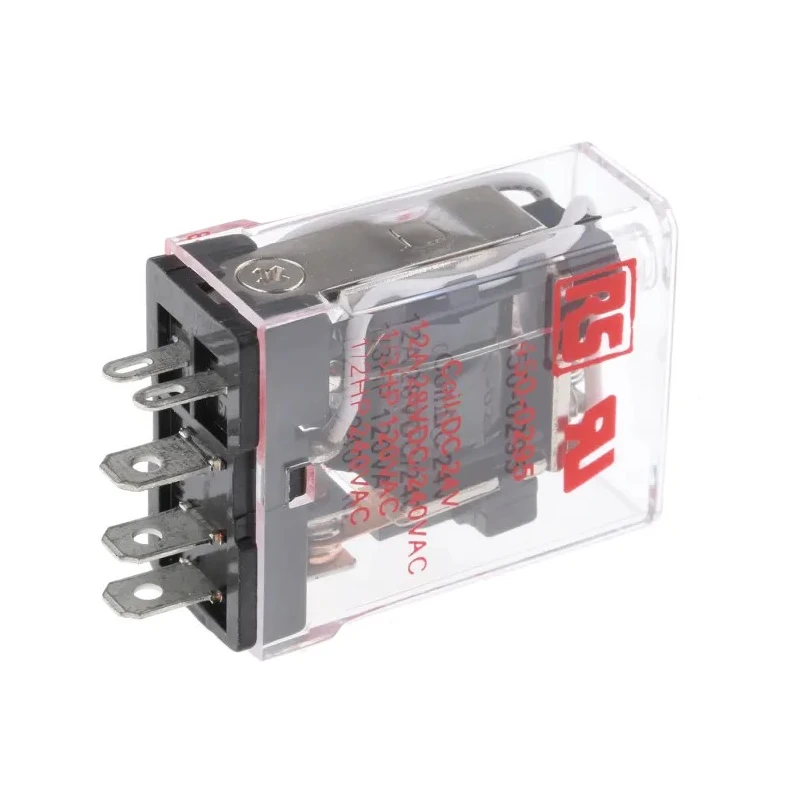

RS PRO PCB Power Relay 24V DC Coil 15A Switching Current SPDT 450-0295
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Height | 35.6mm |
| Length | 27mm |
| Model | 450-0295 |
| Width | 13.5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -45°C |
| Switching Current | 15A |
| Terminal type | PCB Pin |
| Contact Resistance | 50mΩ max |
| Standards/Approvals | CE, UL, EN |
| Mechanical Life | 10 million operations |
| Coil Resistance | 750Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 28V dc |
| Switching AC Voltage | 240V ac |
| Coil Power | 900mW |
| Electrical Life | 100000 operations |
| 10A SPCO RELAY+LED 24VDCBrand | Idec |
Key Features
- The relay features a coil resistance of 750 ohms and coil power of 900 mW.
- It supports switching voltages up to 28V DC and 240V AC with silver alloy contacts.
- Designed for PCB mounting with PCB pin terminals for easy integration.
- Operates reliably within temperature range of -45°C to 70°C.
- Mechanical life of 10 million operations and electrical life of 100000 operations ensures durability.
- Contact resistance max 50 milliohms for efficient current flow.
- Certified with CE, UL, and EN standards for quality assurance.
Product Description
RS PRO 450-0295 PCB Power Relay is engineered for industrial applications requiring robust switching capability with a 24V DC coil and a switching current rating of 15A in a Single Pole Double Throw (SPDT) contact configuration. This relay is designed to mount on printed circuit boards using PCB pins for secure and reliable installation, making it ideal for automated industrial controls and electrical equipment.
The relay coil exhibits a resistance of 750 ohms and consumes 900 mW coil power, ensuring efficient operation at 24V DC. It supports switching DC voltages up to 28V and AC voltages up to 240V, with silver alloy contacts that provide excellent conductivity and wear resistance. The device operates safely within a broad temperature range from -45°C to 70°C, facilitating use in harsh industrial environments.
Featuring a compact form factor with dimensions of 27 mm length, 13.5 mm width, and 35.6 mm height, the relay fits well into space-constrained control panels. It offers a low contact resistance of 50 milliohms maximum to minimize energy losses and operates with mechanical life expectancy of up to 10 million operations and an electrical life rated for 100,000 switching cycles, guaranteeing long-term reliability.
RS PRO 450-0295 adheres to stringent international standards including CE, UL, and EN, assuring quality and safety compliance. The relay's SPDT contact configuration enables versatile circuit applications. PCB pin terminal type ensures secure and simplified PCB assembly.
Mechanical and electrical life ratings deliver extended service life. Suitable for use in industrial automation, electrical control systems, HVAC, manufacturing, and laboratory equipment. Silver alloy contact material is chosen for reliable electrical performance and durability.
Originating from Taiwan, Province of China, this new condition power relay is a quality component suited for various electronic and electrical automation applications. Explore the extensive catalog of Power Relays and electronic components at EnvMart to find complementary products for industrial automation and control systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 24V DC.
This model supports a maximum switching current of 15A.
The dimensions of the relay are 27 mm in length, 13.5 mm in width, and 35.6 mm in height.
The relay features a Single Pole Double Throw (SPDT) contact configuration.
The maximum operating temperature for this relay is 70°C.
This relay is designed for PCB mounting with PCB pin terminals.
The mechanical life expectancy of this relay is rated for up to 10 million operations.
The maximum contact resistance is 50 milliohms.
It supports switching DC voltages up to 28V and AC voltages up to 240V.
The coil resistance is 750 ohms.
This relay is certified with CE, UL, and EN standards.
The coil power consumption is 900 mW.
