Abracon 33.333MHz XO Oscillator ±50 ppm CMOS 4-Pin Surface Mount ASE-33.333MHZ-LC-T

Free Delivery in India | Lowest Global Shipping Charges

Abracon 33.333MHz XO Oscillator ±50 ppm CMOS 4-Pin Surface Mount ASE-33.333MHZ-LC-T

Name: Abracon 33.333MHz XO Oscillator ±50 ppm CMOS 4-Pin Surface Mount ASE-33.333MHZ-LC-T
Brand: Abracon
SKU: 415103
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand Abracon Condition New

Specifications

Country of Origin	Taiwan
Brand	Abracon
Height	1.2mm
Length	3.2mm
Model	ASE-33.333MHZ-LC-T
Packaging	Tape & Reel
Width	2.5mm
Mount Type	Surface
Series	ASE
Maximum Operating Temperature	85°C
Output Frequency	33.333MHz
Package Type	Surface Mount
Minimum Operating Temperature	-40°C
Pin Count	4
Maximum Supply Voltage	3.47V
Minimum Supply Voltage	3.14V
Oscillator Type	XO
Output Level	CMOS

Key Features

Output frequency is 33.333MHz with ±50 ppm frequency stability.
Operates with a supply voltage range of 3.14V minimum to 3.47V maximum.
Low current consumption and low RMS jitter provide reliable performance.
Operating temperature range from -40°C to 85°C ensures suitability for various environments.
Features tri-state function with CMOS output level.
Package type is tape and reel, suitable for automated assembly processes.
The oscillator contains 4 pins suitable for surface mount PCB designs.
Manufactured under the ASE series by Abracon with country of origin Taiwan, Province Of China.

Product Description

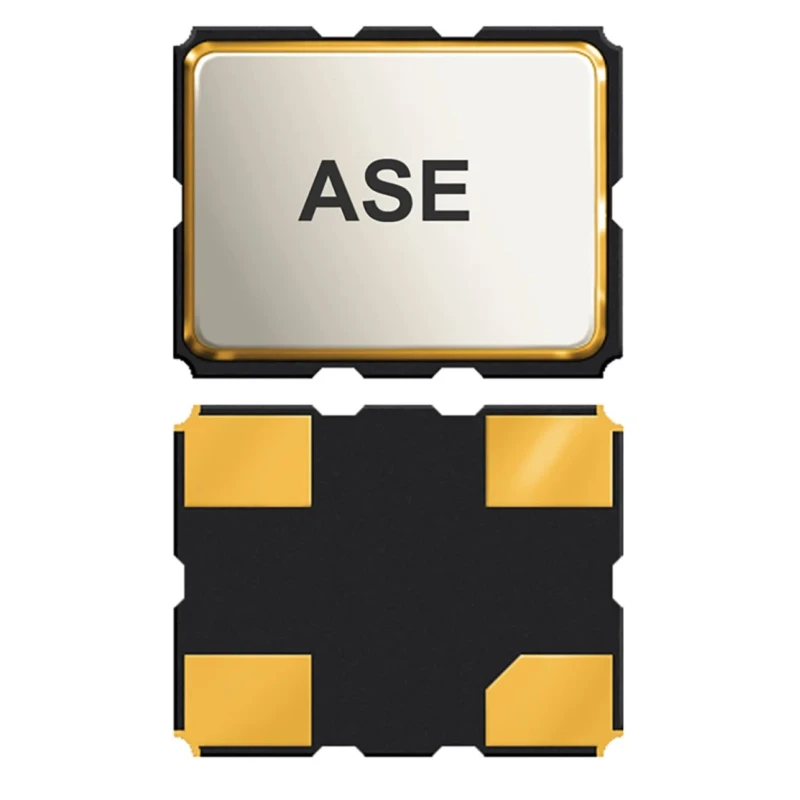

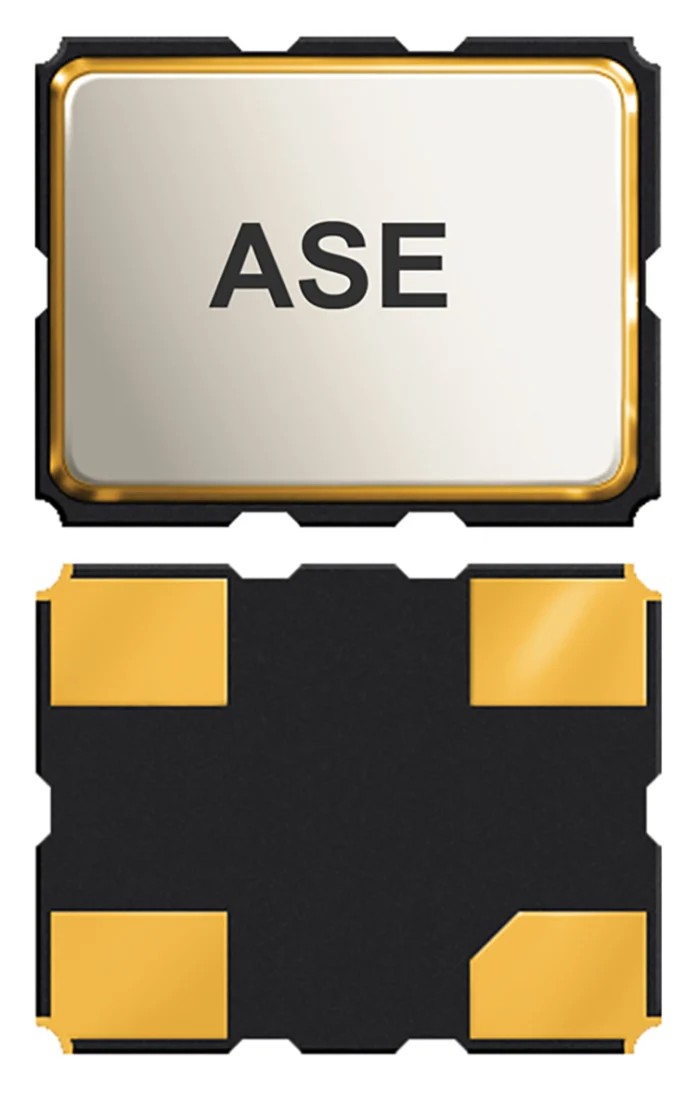

The Abracon ASE-33.333MHZ-LC-T is a 33.333MHz XO oscillator designed for precision timing applications. Featuring a CMOS output and a 4-pin surface mount package, it ensures easy integration into compact electronic devices.

This oscillator exhibits frequency stability of ±50 ppm, operating across a temperature range of -40°C to 85°C, which supports reliable performance in industrial, consumer electronics, and communication devices.

Its low current consumption and low RMS jitter make it suitable for high-performance applications including CCD clock for VTR cameras, PDA wireless communication, laptops, and solid-state drives (SSD).

The device is housed in a compact form factor with dimensions of 3.2mm length, 2.5mm width, and 1.2mm max height to fit space-constrained circuits. The oscillator is supplied in tape and reel packaging to facilitate automated assembly processes in manufacturing environments.

Output frequency 33.333MHz with ±50 ppm stability. Low current consumption with CMOS output. Compact 4-pin surface mount form factor. Operating temperature from -40°C to 85°C. Tape and reel packaging for efficient production.

Low RMS jitter ensures signal integrity. Tri-state function enhances control capabilities. ASE series oscillator from Abracon. Originates from Taiwan, Province Of China. This crystal oscillator is well-suited for industrial electronics, communication devices, and computing applications requiring precise and stable clock signals.
