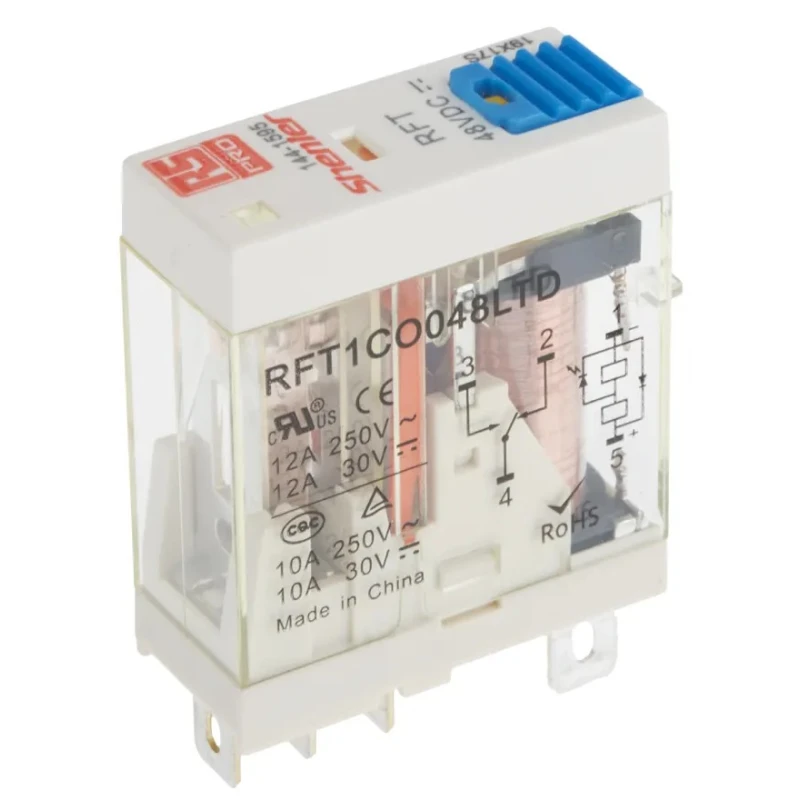

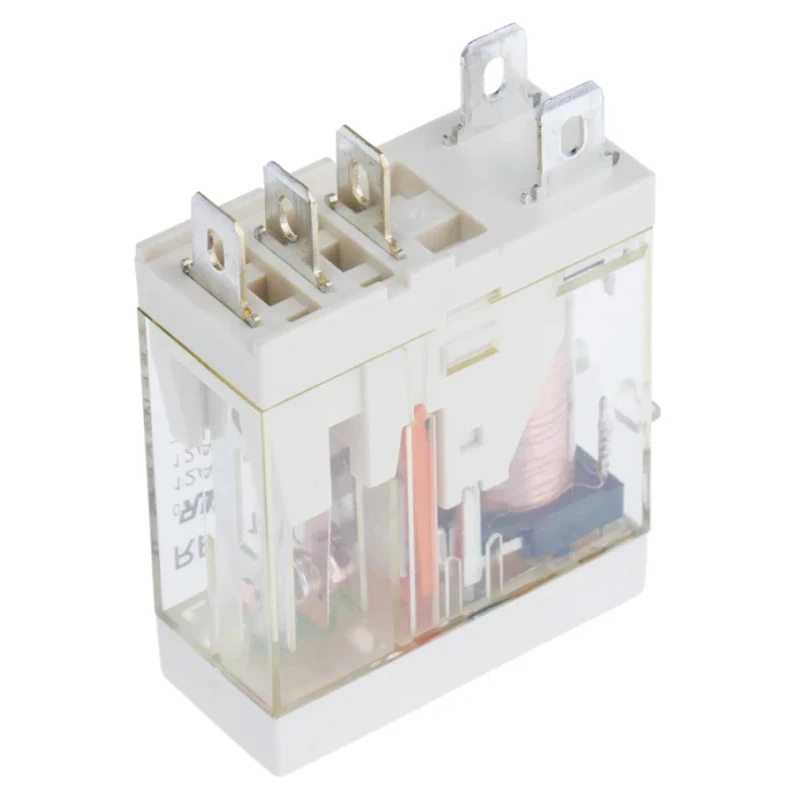

RS PRO Power Relay 48V Coil Voltage 12A Switching Current SPDT Model 144-1595

RS PRO 144-1595 Power Relay features a 48V coil and is rated for a switching current of 12A with Single Pole Double Throw (SPDT) contact configuration. It is designed for reliable switching in electronic and electrical industrial applications such as automation systems and control panels. The relay provides a compact size with dimensions of 29mm length, 12.6mm width, and 28mm height, allowing for easy PCB mounting with its PCB pin terminal type.

Constructed with a high-quality silver alloy contact material, the relay minimizes contact resistance to 50mΩ ensuring efficient current flow and reduced electrical losses. Its coil has a resistance of 4.3kΩ and power rating of 530mW, which together contribute to efficient operation and low power consumption.

The relay operates over a wide temperature range from -40°C minimum to 55°C maximum, making it suitable for industrial, HVAC, manufacturing, and automation environments requiring reliable performance in varying conditions. It can switch DC voltages up to 30V and AC voltages up to 250V with a switching power capacity of 3kVA.

This RS PRO model complies with RoHS standards, ensuring that the product meets applicable environmental requirements restricting hazardous substances. Coil voltage rating of 48 volts ensures efficient relay operations. Switching current capacity of 12 amps suitable for moderate load applications.

Single Pole Double Throw contact configuration for versatile switching. Compact dimensions and PCB pin terminal type for easy integration in circuit boards. Contact material is silver alloy offering high conductivity and durability.

Wide operating temperature range from -40°C to 55°C for harsh industrial environments. Low coil resistance and power consumption aid energy efficiency. Contact resistance of 50mΩ ensures minimal voltage drop during switching operation.

RoHS compliant for hazardous substance restriction. Suitable for Industrial, Automation, HVAC, and Manufacturing use cases.
