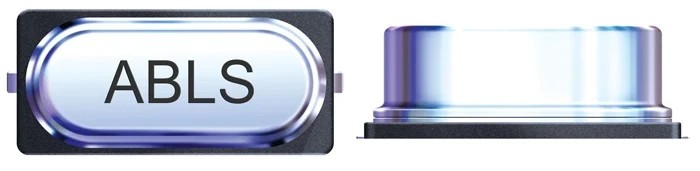

Abracon 8 MHz Surface Mount Crystal Unit ±30 ppm Load Capacitance 18 pF 2-Pin 12.7 x 4.7 x 4.2 mm ABLS-8.000MHZ-L4Q-T

Free Delivery in India | Lowest Global Shipping Charges

Abracon 8 MHz Surface Mount Crystal Unit ±30 ppm Load Capacitance 18 pF 2-Pin 12.7 x 4.7 x 4.2 mm ABLS-8.000MHZ-L4Q-T

Name: Abracon 8 MHz Surface Mount Crystal Unit ±30 ppm Load Capacitance 18 pF 2-Pin 12.7 x 4.7 x 4.2 mm ABLS-8.000MHZ-L4Q-T
Brand: Abracon
SKU: 414161
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand Abracon Condition New

Specifications

Country of Origin	India
Brand	Abracon
Height	4.2mm
Length	12.7mm
Model	ABLS-8.000MHZ-L4Q-T
Packaging	Tape & Reel
Width	4.7mm
Mount Type	Surface
Series	ABLS
Maximum Operating Temperature	125°C
Package Type	Surface Mount
Minimum Operating Temperature	-55°C
Standards/Approvals	RoHS
Pin Count	2
Standard Frequency	8MHz
Load Capacitance	18pF
Series Resistance	80Ω

Key Features

The standard frequency is 8 MHz with a frequency tolerance of ±30 ppm.
Surface mount package type allows compact PCB assembly.
Load capacitance is 18 pF optimized for stability.
It features a two-pin configuration suitable for tape and reel packaging for automated placement.
Operating temperature range spans from -55°C up to 125°C ensuring reliable performance in harsh environments.
Series resistance is rated at 80 Ω for consistent oscillation.
The crystal unit complies with RoHS standards ensuring environmental safety.
This crystal is ideal for computers, modems, microprocessors, and wireless communication devices.

Product Description

The Abracon ABLS-8.000MHZ-L4Q-T is a surface mount 8 MHz crystal unit delivering precise frequency control with a ±30 ppm tolerance, designed primarily for use in modern electronic devices requiring high reliability and stability.

Its surface mount design with two pins ensures easy integration into compact circuit boards, helping minimize board space without compromising performance. The crystal unit has a load capacitance of 18 pF, optimized to maintain frequency stability across varying environmental conditions.

Measuring 12.7 mm in length, 4.7 mm in width, and 4.2 mm in height, this component is compact yet capable of operating reliably in the wide temperature range from -55°C to 125°C. The series resistance of 80 Ω assures stable oscillation necessary for precise timing applications.

Packaged in tape and reel format, it supports efficient automated assembly lines used in high-volume electronics production.

This crystal unit is widely used in computers, modems, microprocessors, and wireless communication devices, making it suitable for industrial, commercial, and consumer electronic applications. Its stability and quality suit applications demanding reliable frequency generation and timing.

Standard frequency: 8 MHz with ±30 ppm tolerance. Compact surface mount with 2 pins. Load capacitance: 18 pF. Dimensions: 12.7 x 4.7 x 4.2 mm (LxWxH). Operating temperature range: -55°C to 125°C. Series resistance: 80 Ω.

RoHS compliant. Tape and reel packaging for automated assembly. Applications include computers, modems, microprocessors, wireless devices. Explore a wide range of crystal units and electronic components suitable for your industrial and manufacturing needs here at EnvMart.
