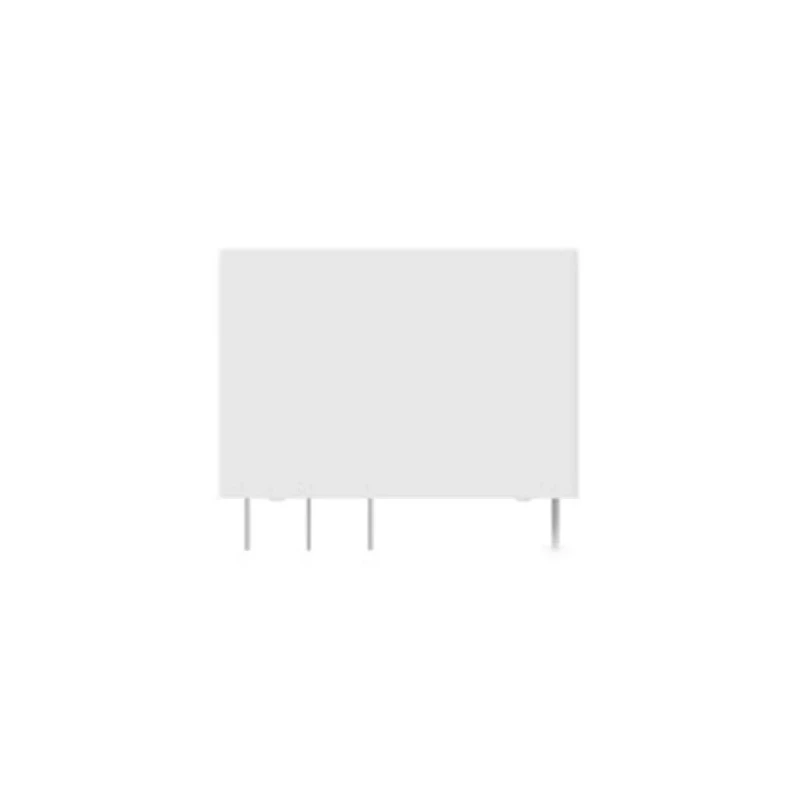

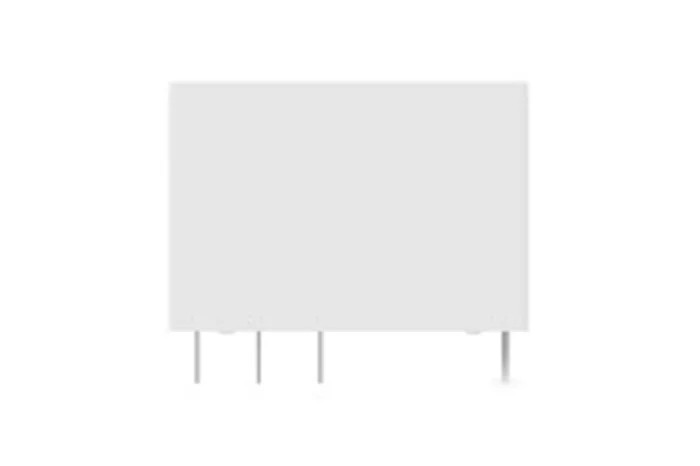

TE Connectivity PCB Power Relay 12V DC Coil 16A Switching Current SPDT OZ-SS-112L,200
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Height | 20.6mm |
| Length | 29.2mm |
| Model | OZ-SS-112L,200 |
| Width | 12.8mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | OZ |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -30°C |
| Switching Current | 16A |
| Terminal type | Through Hole |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 270Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 24V dc |
| Switching AC Voltage | 240V |
| Coil Power | 540mW |
Key Features
- The relay features a through hole terminal type suitable for PCB mounting.
- It operates effectively within a temperature range of -30°C to 70°C.
- The coil resistance is 270Ω with a power consumption of 540mW.
- Contact material is a durable silver alloy ensuring reliable conductivity.
- Its compact dimensions measure 29.2mm length, 20.6mm height, and 12.8mm width.
- The relay complies with RoHS standards for environmental safety.
- It supports switching voltages up to 24V DC and 240V AC for broad compatibility.
- Designed with isolation coil to contact rating of 4000Vac for electrical safety.
Product Description
TE Connectivity OZ-SS-112L,200 PCB Power Relay is a high-performance component designed for electronic and electrical circuit control applications. Featuring a 12V DC coil and SPDT contact configuration, this relay supports a switching current of 16A, making it suitable for demanding switching tasks.
The relay is designed for PCB mounting with through hole terminals, ensuring stable installation and reliable electrical connections. It operates under a wide temperature range from -30°C minimum to 70°C maximum, which enables its use in diverse environments.
Its coil resistance of 270Ω combined with a coil power consumption of 540mW ensures efficient operation with minimal energy loss. The contact material is silver alloy, selected for superior electrical conductivity and durability, and the contact resistance is minimized at 100mΩ.
This product offers switching capabilities at up to 24V DC and 240V AC, providing versatility for various electrical loads. It has an isolation voltage of 4000Vac between coil and contacts, enhancing electrical safety and preventing leakage currents.
The compact form factor of 29.2mm length, 20.6mm height, and 12.8mm width allows integration into constrained PCB layouts without sacrificing performance.
RoHS compliant, this relay meets environmental regulations and is suitable for use in industrial automation, consumer electronics, HVAC controls, and other domains requiring reliable relay switching solutions.
The relay features a through hole terminal type suitable for PCB mounting. It operates effectively within a temperature range of -30°C to 70°C. The coil resistance is 270Ω with a power consumption of 540mW. Contact material is a durable silver alloy ensuring reliable conductivity.
Its compact dimensions measure 29.2mm length, 20.6mm height, and 12.8mm width. The relay complies with RoHS standards for environmental safety. It supports switching voltages up to 24V DC and 240V AC for broad compatibility.
Designed with isolation coil to contact rating of 4000Vac for electrical safety. Explore reliable and efficient power control with TE Connectivity's high-quality relays available at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This relay supports a switching current of 16A, making it suitable for various electrical loads.
The required coil voltage for this relay is 12V DC.
The relay has compact dimensions of 29.2mm in length, 20.6mm in height, and 12.8mm in width.
This model features a Single Pole Double Throw (SPDT) contact configuration.
It operates effectively within a temperature range of -30°C to 70°C.
The relay utilizes through hole terminals suitable for PCB mounting.
The coil resistance is 270Ω, which contributes to its efficient operation.
The coil has a power consumption of 540mW.
This relay supports switching voltages up to 24V DC and 240V AC.
The contact material is a silver alloy, ensuring reliable conductivity.
The isolation voltage rating between the coil and contacts is 4000Vac, enhancing electrical safety.
Yes, this relay complies with RoHS standards for environmental safety.
