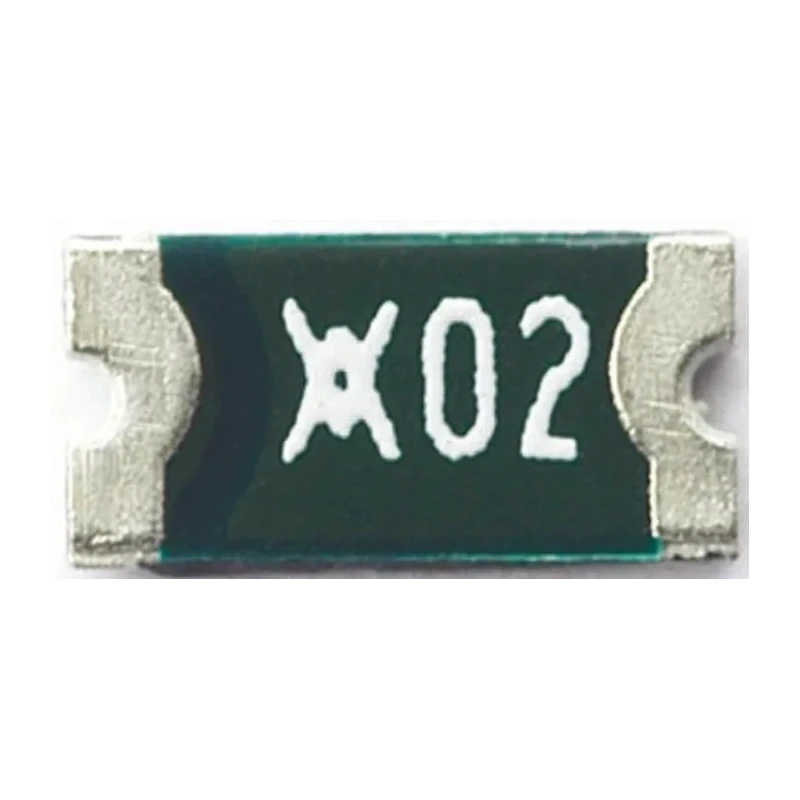

Littelfuse 0.2 A Resettable Fuse 24V DC nanoSMDC020F
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 24V dc |
| Brand | Littelfuse |
| Height | 0.82mm |
| Length | 3.4mm |
| Model | NANOSMDC020F |
| Width | 1.8mm |
| Current Rating | 200mA |
| Series | nanoSMDC020F |
| Maximum Operating Temperature | 85°C |
| Trip Current | 420mA |
| Power Dissipation | 0.6W |
| Terminal Material | Tin Plated |
| Time to Trip | 0.1s |
| Hold Current | 0.2A |
| Minimum Resistance | 0.65Ω |
| Maximum Resistance | 3.1Ω |
Key Features
- Designed with PolySwitch™ nanoSMDC technology for rapid response to overcurrent conditions.
- Compact surface mount device with dimensions 3.4mm x 1.8mm x 0.82mm.
- Automatic reset after fault removal, allowing for thousands of maintenance-free cycles.
- Rated for a hold current of 0.2A and trip current of 420mA, suitable for sensitive electronic applications.
- Suitable for use in security systems, power supplies, automotive equipment, and telecommunications.
- Maximum operating temperature 85°C supports a wide range of operating environments.
- Tin plated terminals ensure reliable electrical connectivity.
- Power dissipation rating of 0.6W enables efficient thermal performance.
Product Description
Littelfuse NANOSMDC020F is a high-quality 0.2 A resettable fuse designed to protect electrical and electronic circuits against overcurrent conditions at 24V DC. It features PolySwitch™ nanoSMDC series technology enabling rapid transition from low to high resistance during faults, ensuring timely circuit protection.
This surface-mount resettable fuse has compact dimensions of 3.4mm length, 1.8mm width, and 0.82mm height, making it suitable for high-density circuit board applications. Its automatic reset functionality allows it to return to low resistance after the fault clears without the need for replacement, enabling thousands of maintenance-free cycles.
The fuse holds a current of 0.2A with a trip current of 420mA and a rapid trip time of 0.1 seconds, providing precise current protection for sensitive devices. It operates effectively up to a maximum temperature of 85°C and has tin-plated terminals for enhanced electrical performance.
Typical applications include security systems, power supplies, transformers, automotive and medical equipment, instrumentation and control systems, computers and peripherals, as well as audio visual and telecommunications equipment.
PolySwitch™ nanoSMDC series technology for rapid overcurrent response. Compact SMT package with dimensions 3.4mm x 1.8mm x 0.82mm. Automatic reset capability for thousands of cycles without replacement. Rated hold current 0.2A and trip current 420mA.
Maximum operating temperature of 85°C for varied environments. Tin plated terminals for reliable connectivity. Power dissipation rating of 0.6W.
This Littelfuse Resettable Fuse is ideal for industrial, telecommunications, automotive, medical, and electronic device manufacturing sectors. It provides dependable circuit protection while reducing maintenance needs and downtime.
Explore a wide range of electronic components and fuses like NANOSMDC020F in the Electronics & Electricals category at EnvMart to support diverse industry applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The hold current rating of this resettable fuse is 0.2A.
The trip current for this model is 420mA.
This resettable fuse has dimensions of 3.4mm in length, 1.8mm in width, and 0.82mm in height.
The maximum operating temperature for this unit is 85°C.
This fuse has a rapid trip time of 0.1 seconds.
It features tin-plated terminals for reliable electrical connectivity.
The power dissipation rating of this resettable fuse is 0.6W.
Typical applications include security systems, power supplies, automotive equipment, and telecommunications.
It utilizes PolySwitch™ nanoSMDC technology for rapid response to overcurrent conditions.
The minimum resistance is 0.65Ω and the maximum resistance is 3.1Ω.
The country of origin for this resettable fuse is India.
