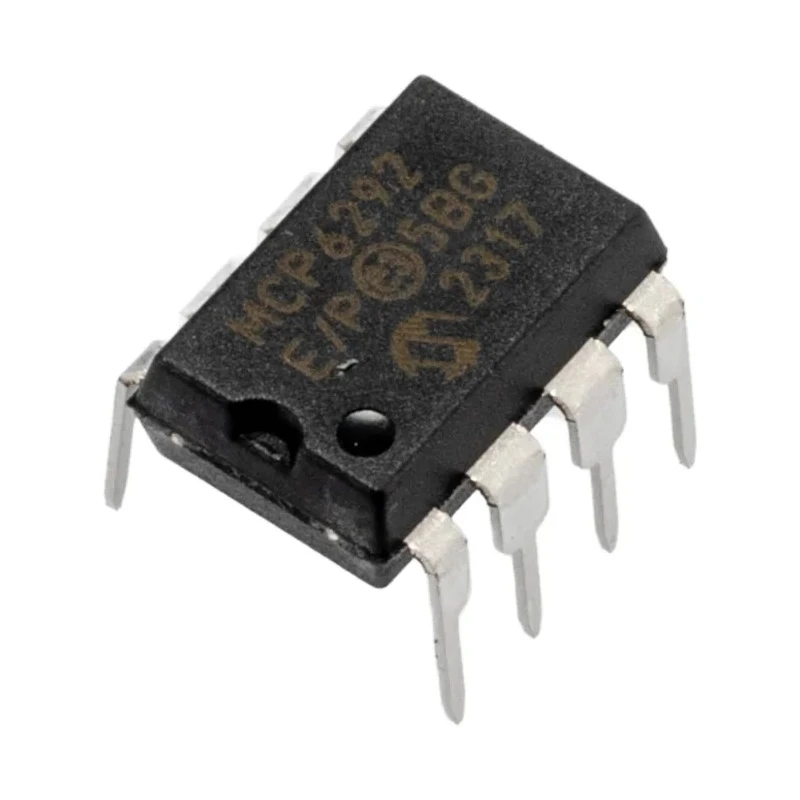

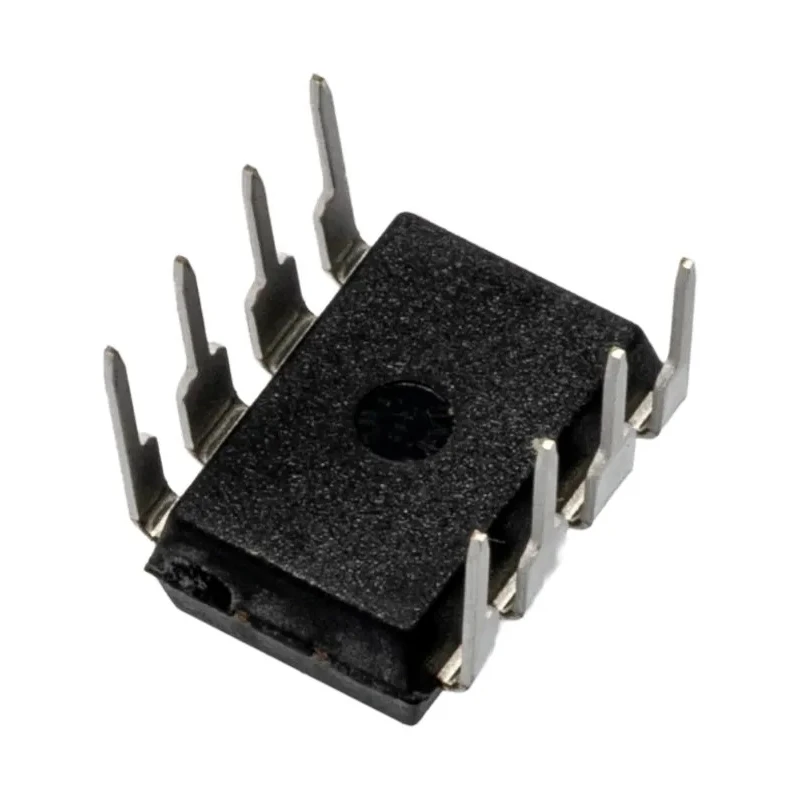

Microchip Operational Amplifier 10 MHz, 8-Pin PDIP, 2 Channels, 2.4-6V Supply, AEC-Q100 MCP6292-E/P
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 3.3mm |
| Length | 9.27mm |
| Model | MCP6292-E/P |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Series | MCP6292 |
| Output Current | 25mA |
| Maximum Operating Temperature | 125°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 6V |
| Minimum Supply Voltage | 2.4V |
| GBP - Gain Bandwidth Product | 10MHz |
| Input Bias Current | 1 pA |
| Vos - Input Offset Voltage | ±5 mV |
| Slew Rate | 7V/μs |
| Microchip, Operational Amplifier, 10 MHz, 8-Pin 6V PDIPBrand | Microchip |
Key Features
- Operates from 2.4V to 6V supply voltage range.
- Features a gain bandwidth product of 10 MHz with a slew rate of 7 V/μs.
- Has low input bias current of 1 pA and input offset voltage of ±5 mV.
- Provides output current capability of 25 mA suitable for driving various loads.
- Meets AEC-Q100 automotive standards ensuring reliability in harsh environments.
- Operates across a wide temperature range from -40°C to +125°C.
- Available in a through-hole PDIP package with 8 pins for easy PCB mounting.
Product Description
Microchip MCP6292-E/P is a high-performance dual operational amplifier designed for low voltage operation with a maximum supply voltage of 6V and a minimum of 2.4V. The device offers a gain bandwidth product of 10 MHz and a slew rate of 7 V/μs, making it suitable for precision amplification tasks in industrial, automotive, and general-purpose applications.
This operational amplifier features extremely low input bias and offset currents (1 pA and ±5 mV respectively), enhancing accuracy in signal processing. The output current rating of 25 mA enables the device to drive moderate loads effectively.
Designed to meet AEC-Q100 automotive standards, this amplifier ensures reliable performance over wide operating temperature ranges from -40°C to 125°C, suitable for automotive and harsh environmental conditions.
The MCP6292-E/P is housed in a standard 8-pin PDIP through-hole package, measuring 9.27 mm in length, 6.35 mm in width, and 3.3 mm in height. This form factor facilitates easy integration into through-hole PCB layouts commonly used in prototyping and production environments.
Operates with a supply voltage range of 2.4V to 6V. Gain bandwidth product: 10 MHz. Slew rate: 7 V/μs. Low input bias current and offset voltage for precision applications. Complies with RoHS standards. Meets automotive AEC-Q100 standards.
Compact PDIP 8-pin package.
This operational amplifier is suitable for use in industrial control systems, automotive electronics, instrumentation, sensor signal conditioning, and audio applications. Its low noise, high accuracy, and automotive qualification make it an excellent choice for demanding electronic designs.
Explore more Microchip Operational Amplifiers and semiconductor components available for various electronics manufacturing and laboratory needs on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This operational amplifier operates with a supply voltage range of 2.4V to 6V.
The MCP6292-E/P features a gain bandwidth product of 10 MHz, which is suitable for various amplification tasks.
It has an output current capability of 25 mA, allowing it to drive moderate loads effectively.
The device operates across a wide temperature range from -40°C to 125°C, making it suitable for harsh environments.
This operational amplifier comes in a PDIP package measuring 9.27 mm in length, 6.35 mm in width, and 3.3 mm in height.
The MCP6292-E/P has a slew rate of 7 V/μs, which is beneficial for fast signal processing applications.
This model features a low input bias current of 1 pA, enhancing its accuracy in signal processing.
The input offset voltage for this operational amplifier is ±5 mV, which contributes to its precision.
It is housed in a standard 8-pin PDIP through-hole package, facilitating easy integration into PCB layouts.
Yes, it meets AEC-Q100 automotive standards, ensuring reliability in automotive applications.
The MCP6292-E/P is suitable for industrial control systems, automotive electronics, instrumentation, sensor signal conditioning, and audio applications.
This operational amplifier complies with RoHS standards, ensuring it meets environmental regulations.
