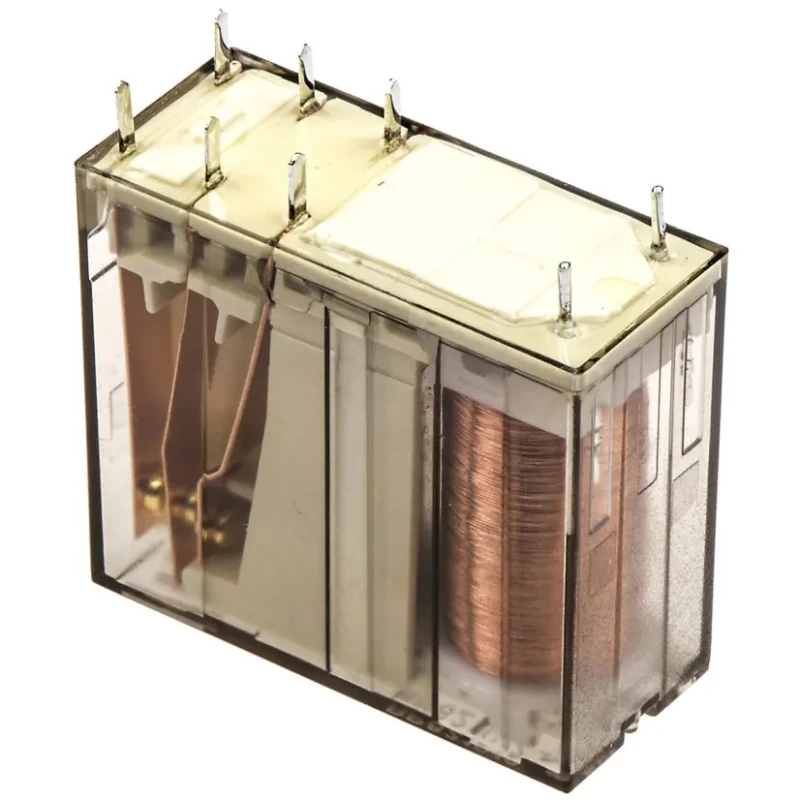

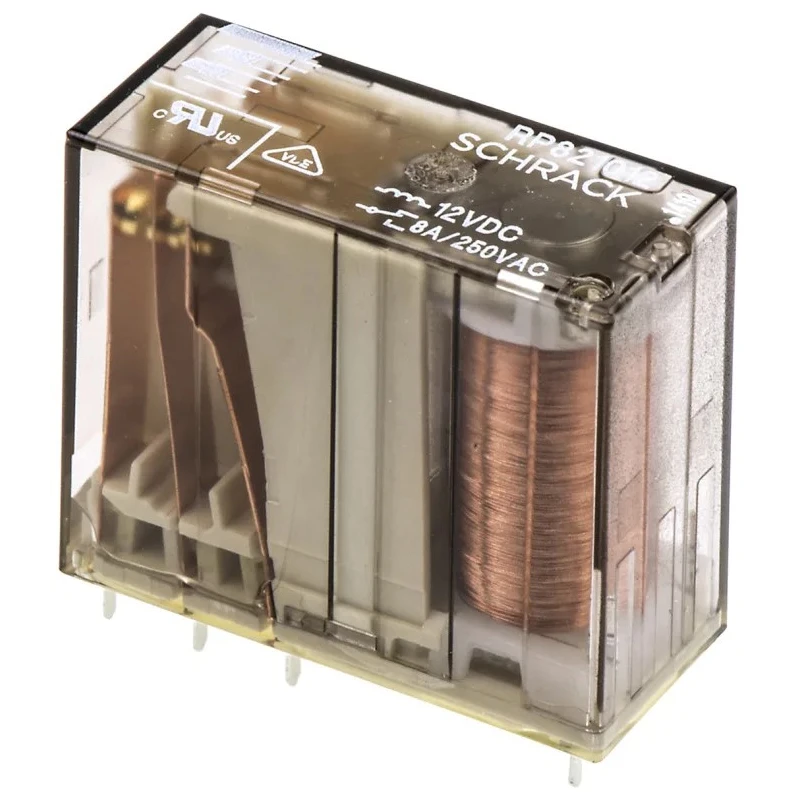

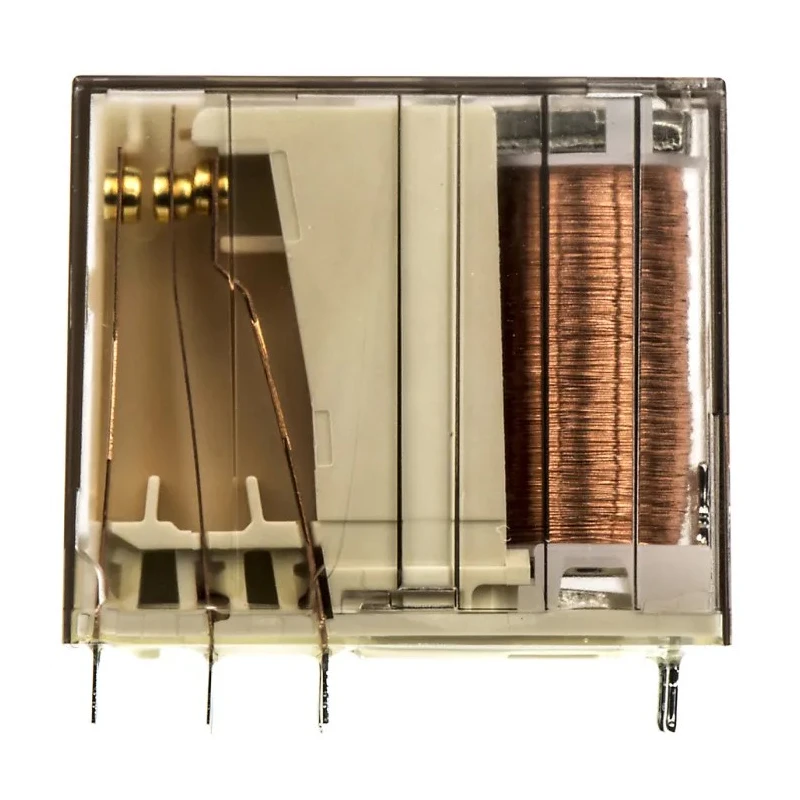

TE Connectivity PCB Non-Latching Relay 12V DC Coil 8A Switching Current DPDT RP821012
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | TE Connectivity |
| Height | 25.5mm |
| Operating Temperature Range | -40 to +70°C |
| Length | 29mm |
| Model | RP821012 |
| Width | 12.6mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | RPII |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Solder |
| Standards/Approvals | RoHS, IEC 61810 |
| Coil Resistance | 270Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 500mW |
| Creepage and clearance | 8mm |
Key Features
- Designed for PCB mounting with solder terminal type.
- Operating temperature range from -40 to 70°C ensuring broad environmental tolerance.
- Features silver alloy contacts for improved conductivity and durability.
- Low coil power consumption of 500mW for efficient operation.
- Switching AC voltage up to 400V AC suitable for diverse applications.
- Compliance with RoHS and IEC 61810 standards for environmental and safety requirements.
- Applications include power supplies, domestic equipment, and heating control systems.
- Manufactured in Czech Republic ensuring quality production standards.
Product Description
TE Connectivity RP821012 is a high-quality PCB Non-Latching Relay featuring a 12V DC coil voltage with an 8A switching current. This relay uses a DPDT (Double Pole Double Throw) contact configuration, making it ideal for power switching in industrial and domestic electrical control systems. The relay is optimized for PCB mounting with solder terminals, facilitating a secure and durable installation.
The relay's coil power rating is 500mW, contributing to its energy-efficient operation. It supports an operating temperature range from -40°C to 70°C, allowing it to perform reliably under challenging environmental conditions. The relay's switching AC voltage capacity is up to 400V AC, making it versatile for various electrical applications.
It features silver alloy contacts to ensure high conductivity and long service life. Compact dimensions of 29mm length, 12.6mm width, and 25.5mm height allow for space-efficient mounting in electronic assemblies. The RPII Series relay complies fully with RoHS and IEC 61810 standards, guaranteeing environmental safety and operational reliability.
Typical applications for this relay include power supplies, domestic equipment, heating control, and other industrial automation tasks requiring robust relay performance. Designed for PCB mounting with solder terminal type.
Operating temperature range from -40 to 70°C ensuring broad environmental tolerance. Features silver alloy contacts for improved conductivity and durability. Low coil power consumption of 500mW for efficient operation. Switching AC voltage up to 400V AC suitable for diverse applications.

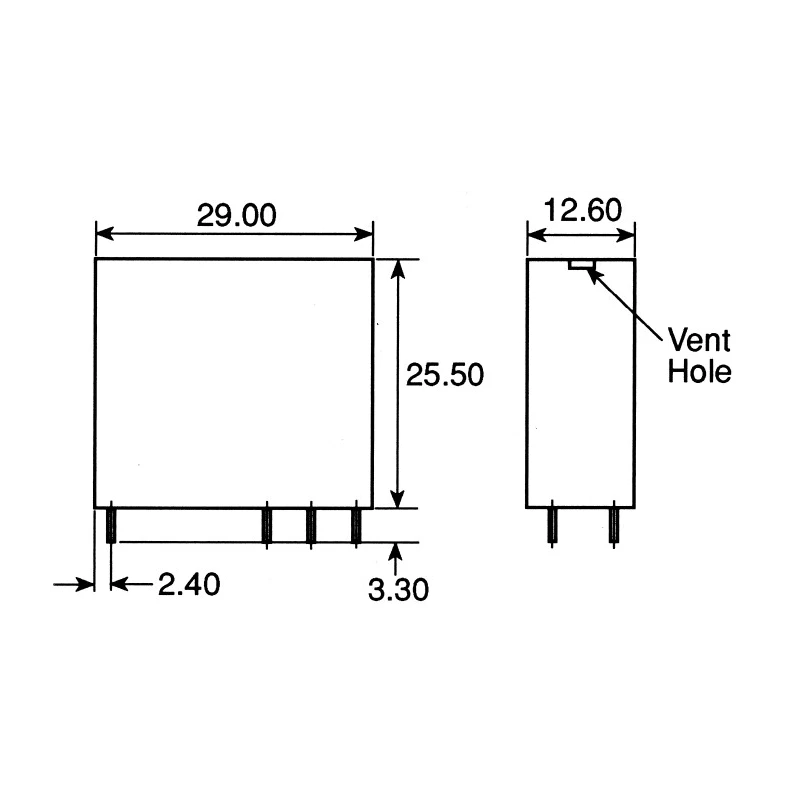

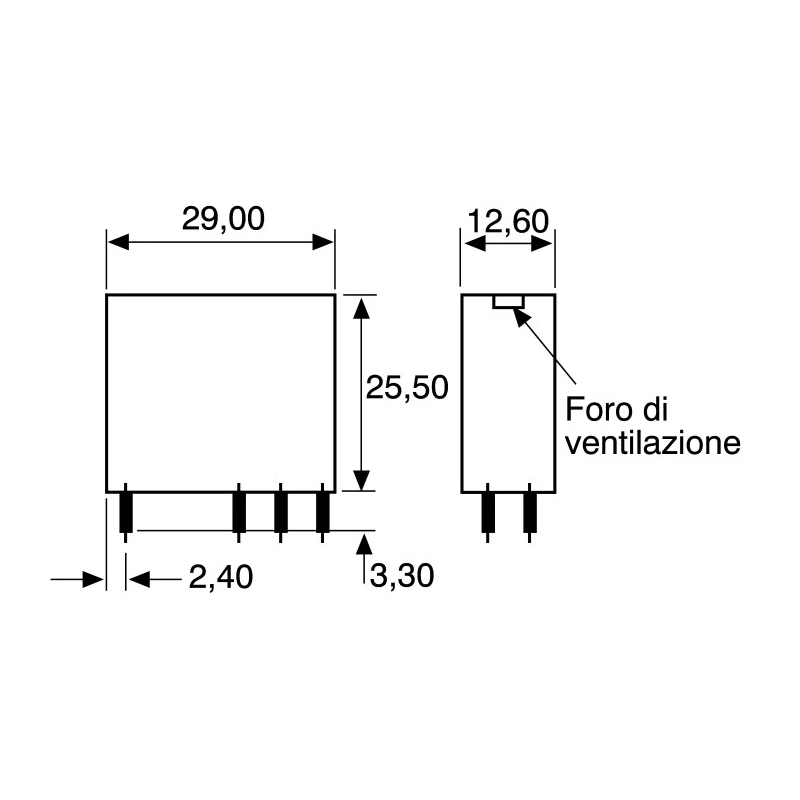

Dimensions: 29mm length, 12.6mm width, and 25.5mm height for compact integration. Compliance with RoHS and IEC 61810 standards for environmental and safety requirements. Applications include power supplies, domestic equipment, and heating control systems.
Manufactured in Czech Republic ensuring quality production standards. Explore EnvMart’s extensive electrical components for industrial and automation solutions.
Explore more products in our Power Relay category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The RP821012 relay operates with a coil voltage of 12V DC.
This model can switch a maximum current of 8A.
It features a DPDT (Double Pole Double Throw) contact configuration.
The operating temperature range for this relay is from -40°C to +70°C.
It can switch AC voltage up to 400V AC.
This relay is designed for PCB mounting with solder terminals.
The contacts are made of silver alloy, which improves conductivity and durability.
The coil power consumption is 500mW, contributing to its energy-efficient operation.
The dimensions are 29mm in length, 12.6mm in width, and 25.5mm in height.
This relay complies with RoHS and IEC 61810 standards for environmental and safety requirements.
Typical applications include power supplies, domestic equipment, and heating control systems.
It is manufactured in the Czech Republic, ensuring quality production standards.
