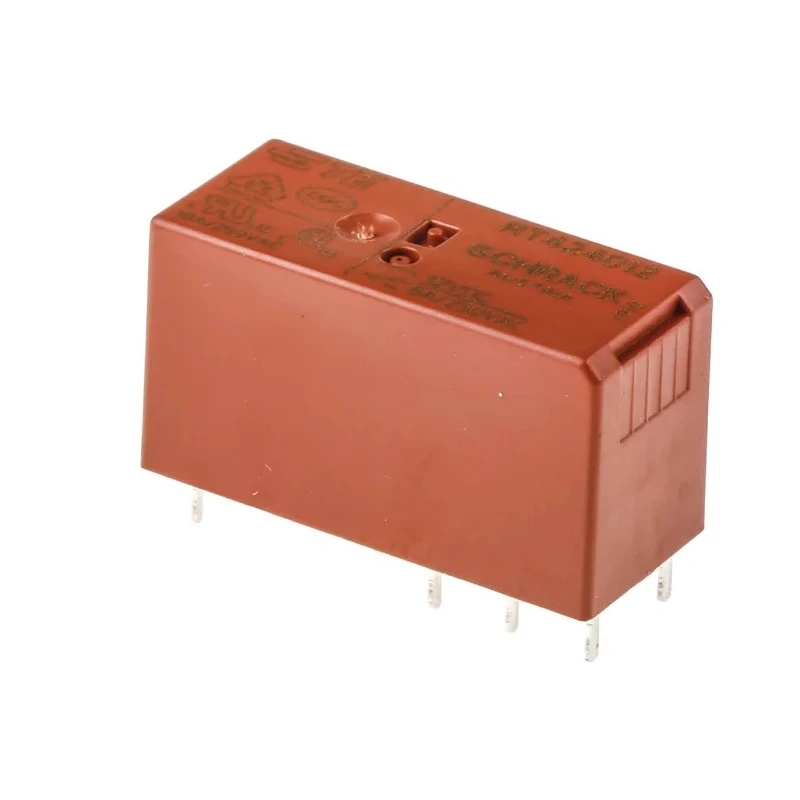

TE Connectivity PCB Power Relay 6V dc Coil 8A Switching Current DPDT RT2 Series 6-1393243-1
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | RT2 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | PCB Pin |
| Standards/Approvals | cULus, VDE |
| Coil Resistance | 90Ω |
| Coil Voltage | 6V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 400mW |
Key Features
- The relay is designed for PCB mounting with PCB pin terminals ensuring secure connections.
- It belongs to the RT2 series and supports a switching AC voltage of up to 400V ac.
- The coil resistance is 90Ω and the coil power rating is 400mW for efficient operation.
- The relay operates reliably within -40°C to 85°C temperature range.
- Constructed with silver alloy contacts to provide durability and effective conductivity.
- Compact dimensions include length 29mm, width 12.7mm, and height 15.7mm for versatile PCB space fitting.
- Approved to comply with cULus and VDE standards, offering safety and reliability assurance.
- This relay is suitable for automation, interface, domestic applications, security lighting, and heating systems.
Product Description
TE Connectivity 6-1393243-1 PCB Power Relay is a reliable electrical component designed for circuit board applications requiring precise switching control. Featuring a 6V dc coil and an 8A switching current capacity, this DPDT (Double Pole Double Throw) relay offers versatility for various low-power and control circuits.
Part of the RT2 series, it ensures enhanced performance with PCB pin terminals for easy soldering and mounting onto printed circuit boards. The relay’s compact form factor, with dimensions of 29mm in length, 12.7mm in width, and 15.7mm in height, makes it ideal for diverse industrial and commercial environments where PCB space is limited.
The coil power consumption is low at 400mW, and the coil resistance of 90Ω allows for efficient electromagnetic activation. Operating temperature ranges from -40°C to 85°C ensure reliable function in harsh environmental conditions.
The contact material uses high-quality silver alloy, which provides excellent conductivity and resistance to wear, extending the relay life and operational stability under electrical load up to 400V AC.
Certified under cULus and VDE standards, this relay meets stringent safety and quality requirements for industrial, automation, and domestic electrical system applications. The relay performs well in interface circuits and automation controls.
It is ideal for domestic appliance control and security lighting systems. Used extensively in heating system controls and other HVAC equipment for switching high loads. The RT2 series includes flux-proof PCB relays designed for through-hole mounting.
This product is manufactured in Austria, ensuring high engineering standards and quality.
Choose TE Connectivity PCB Power Relay 6-1393243-1 for robust, efficient switching in your next electronics or electrical automation project. Explore more Power Relays and connectors in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This relay has a switching current capacity of 8A, making it suitable for various low-power and control circuits.
The coil voltage for this model is 6V DC, which is necessary for its operation.
The relay has compact dimensions of 29mm in length, 12.7mm in width, and 15.7mm in height, allowing for versatile PCB space fitting.
It supports a maximum switching AC voltage of up to 400V AC, suitable for various applications.
The coil resistance is 90Ω, which contributes to its efficient electromagnetic activation.
This relay operates reliably within a temperature range of -40°C to 85°C, making it suitable for harsh environments.
It features a DPDT (Double Pole Double Throw) contact configuration, providing versatility in switching applications.
The contacts are made from silver alloy, which provides effective conductivity and durability.
This relay is approved to comply with cULus and VDE standards, ensuring safety and reliability.
The coil power rating is 400mW, which allows for efficient operation of the relay.
This relay is designed for PCB mounting, featuring PCB pin terminals for secure connections.
It is suitable for automation, interface, domestic applications, security lighting, and heating systems.
