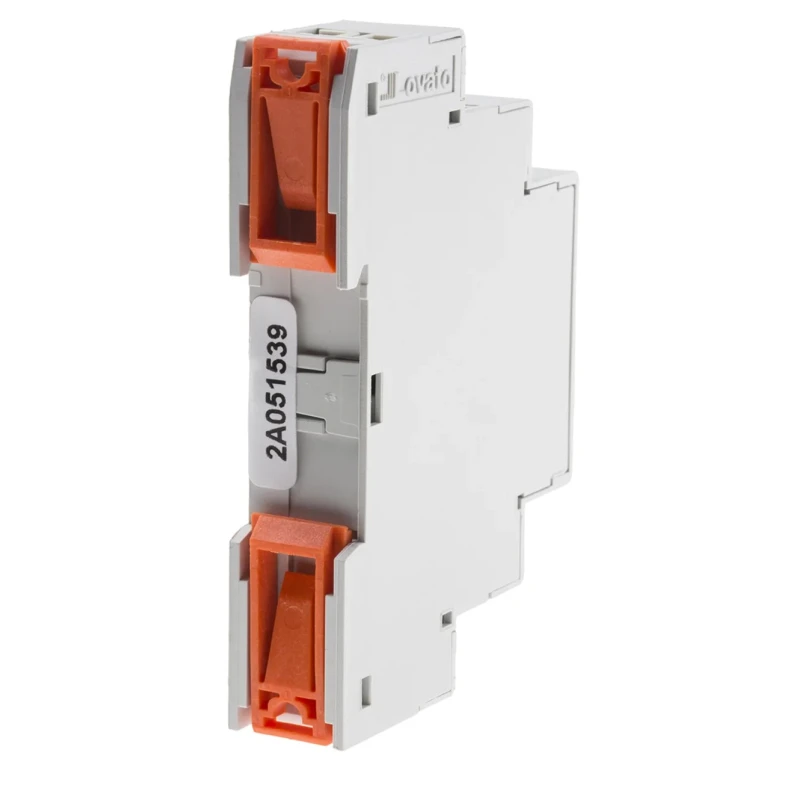

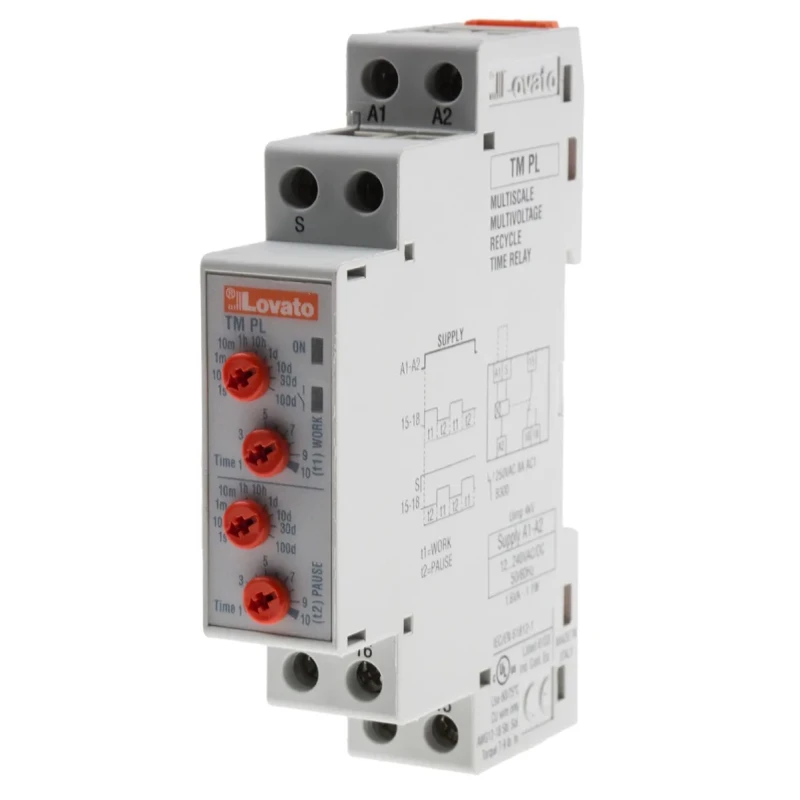

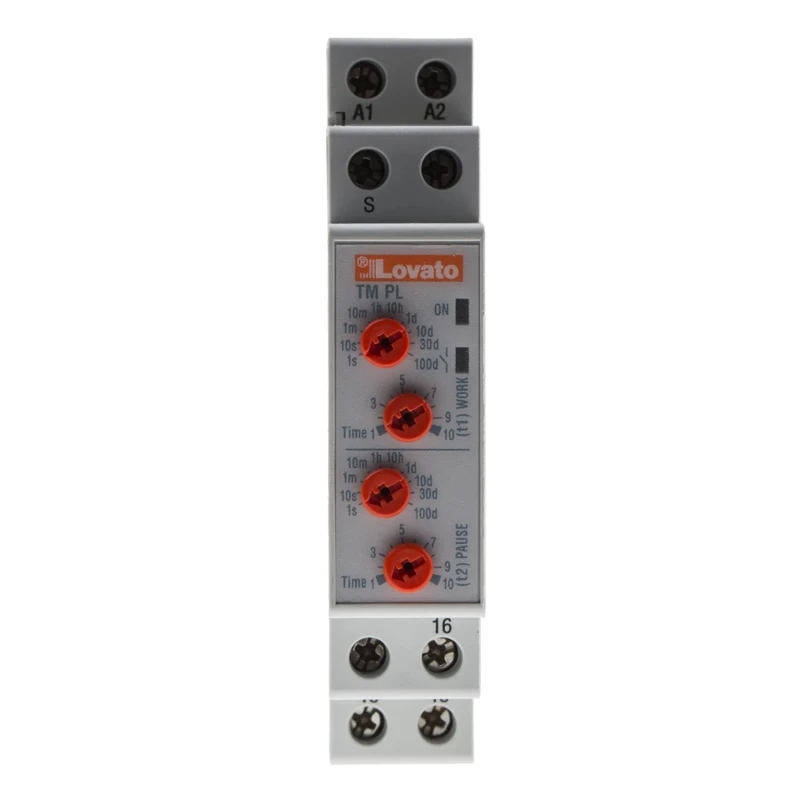

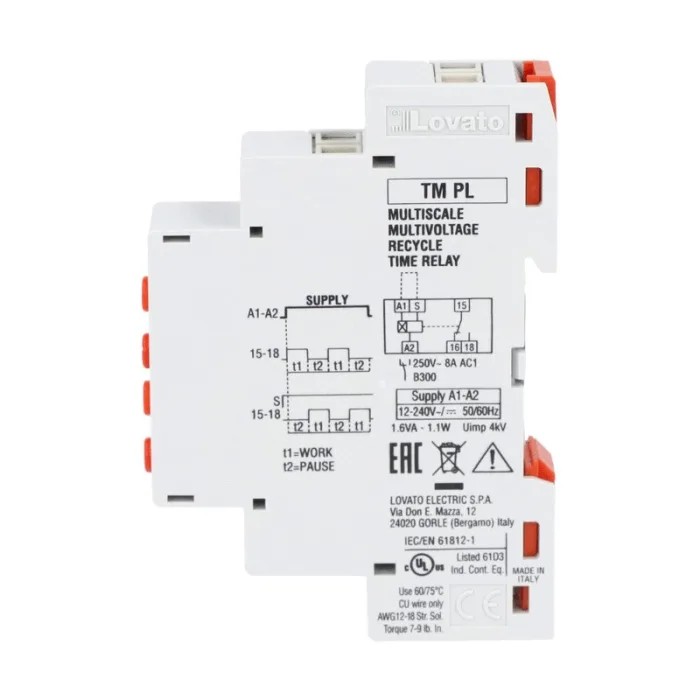

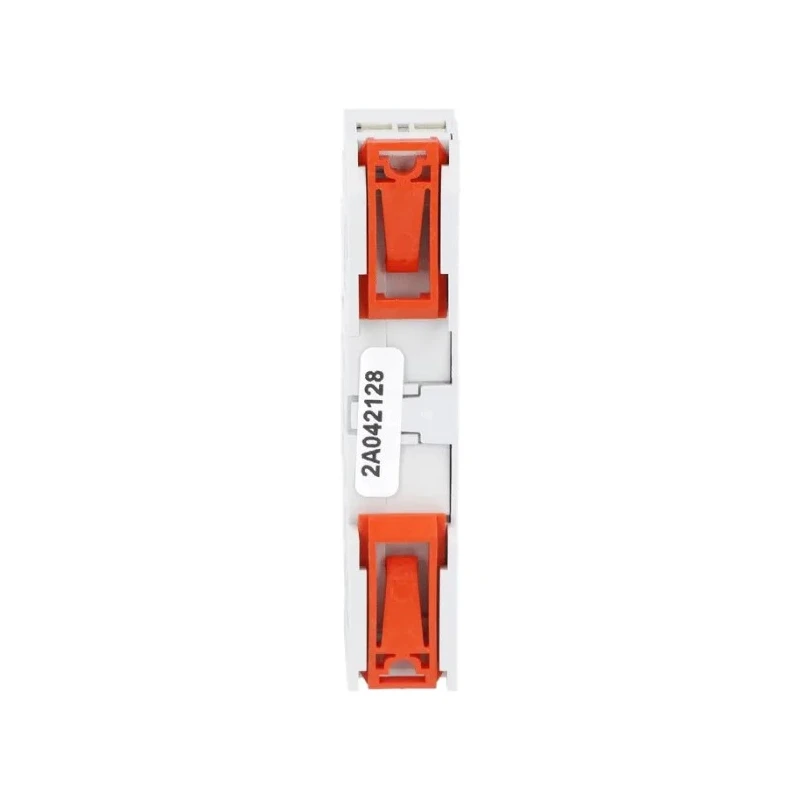

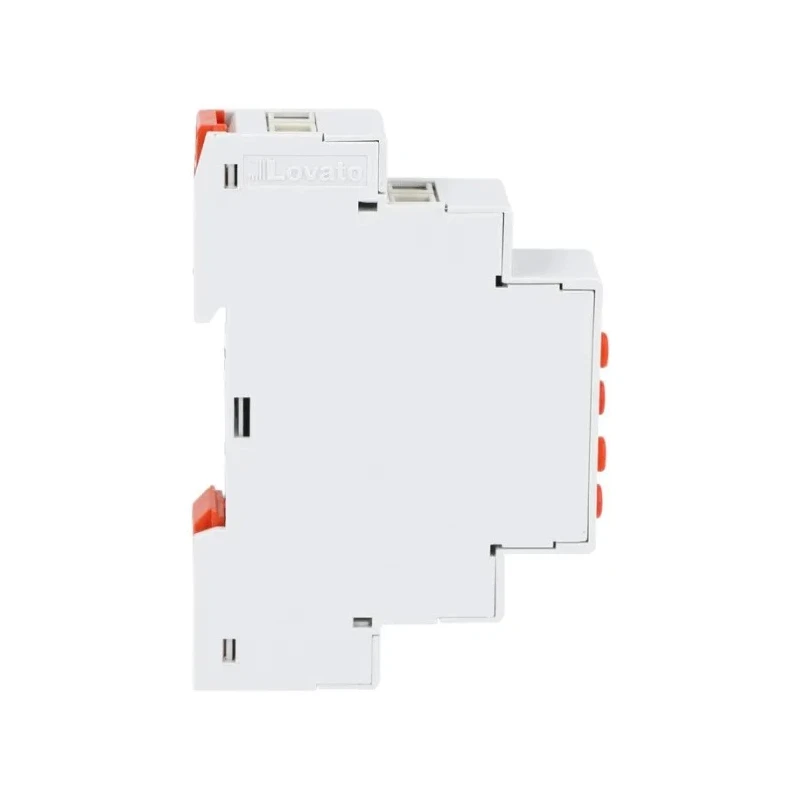

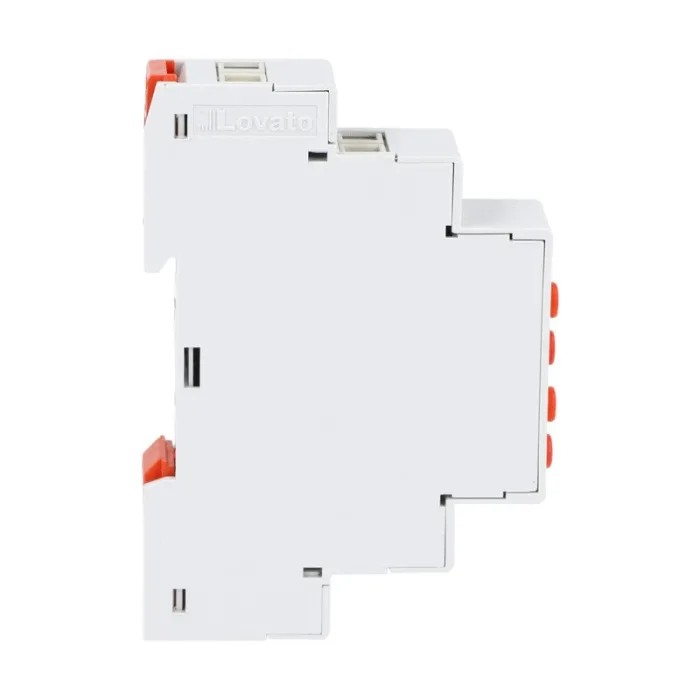

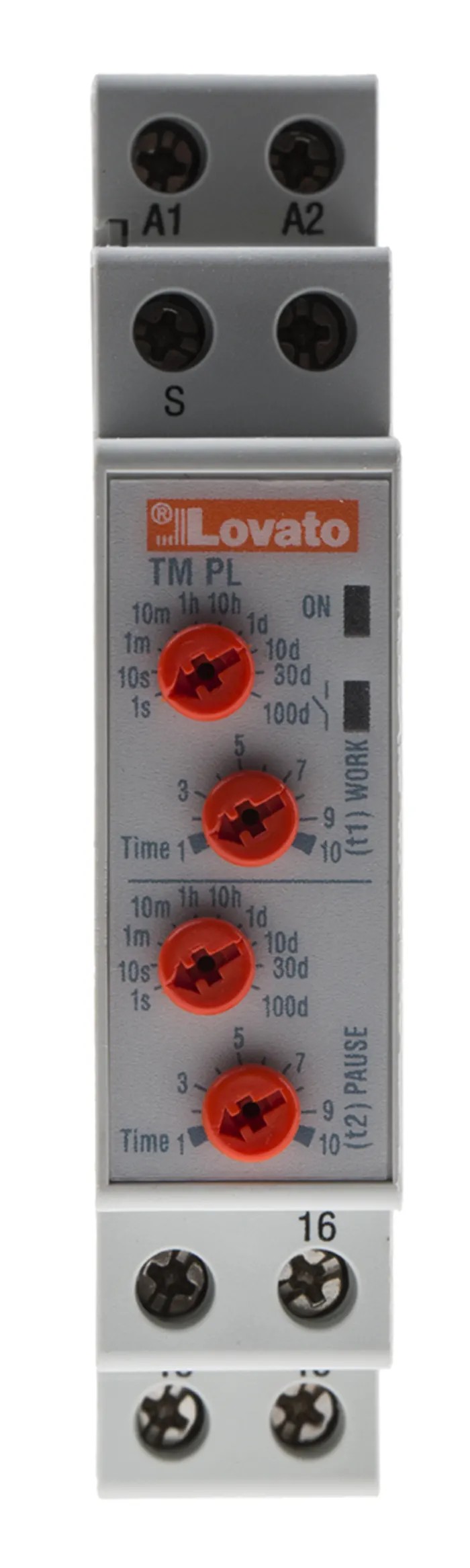

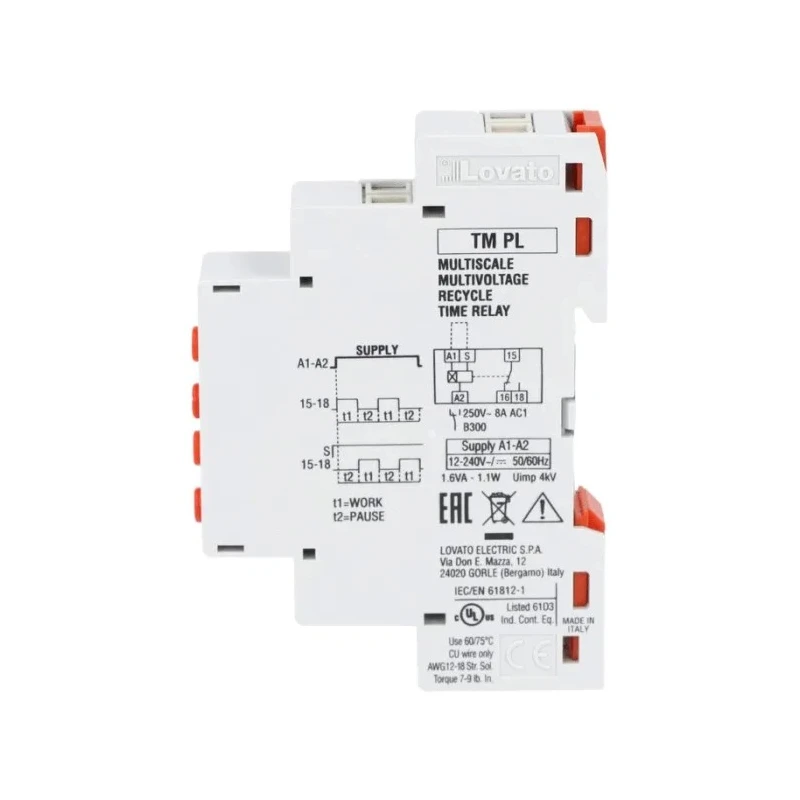

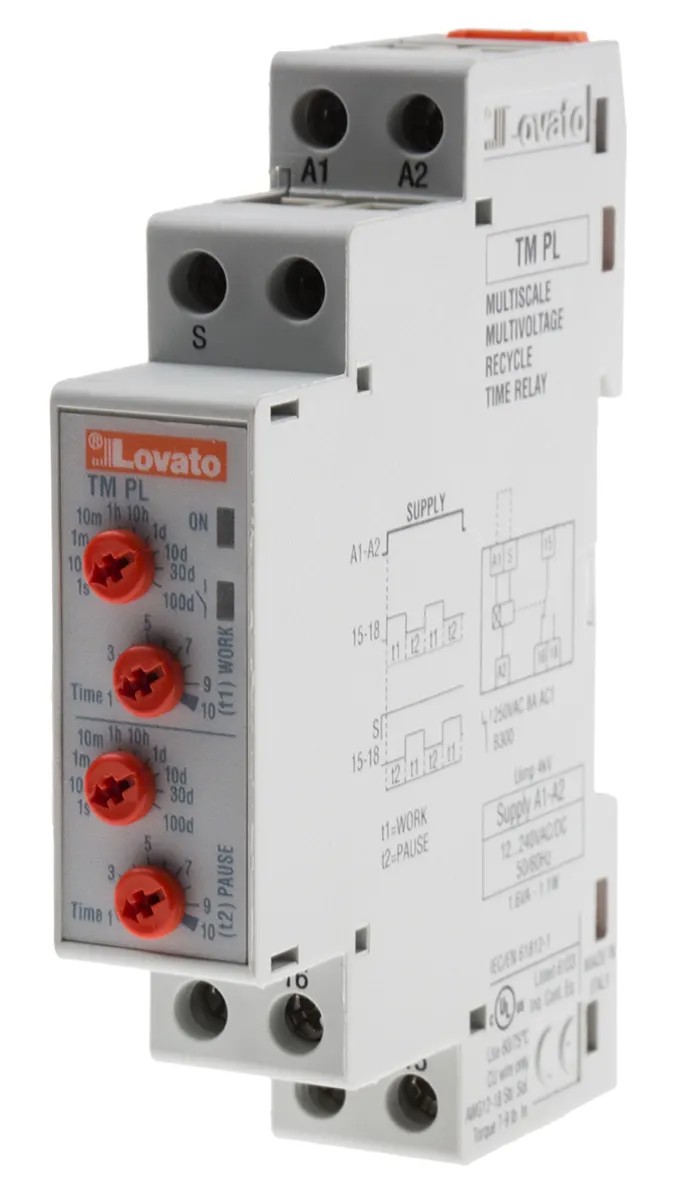

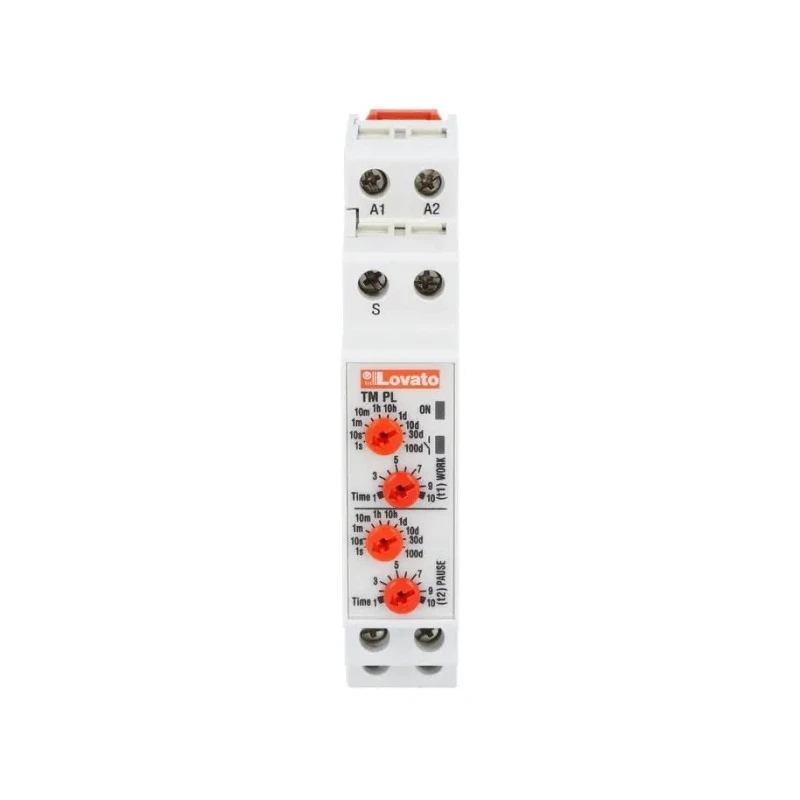

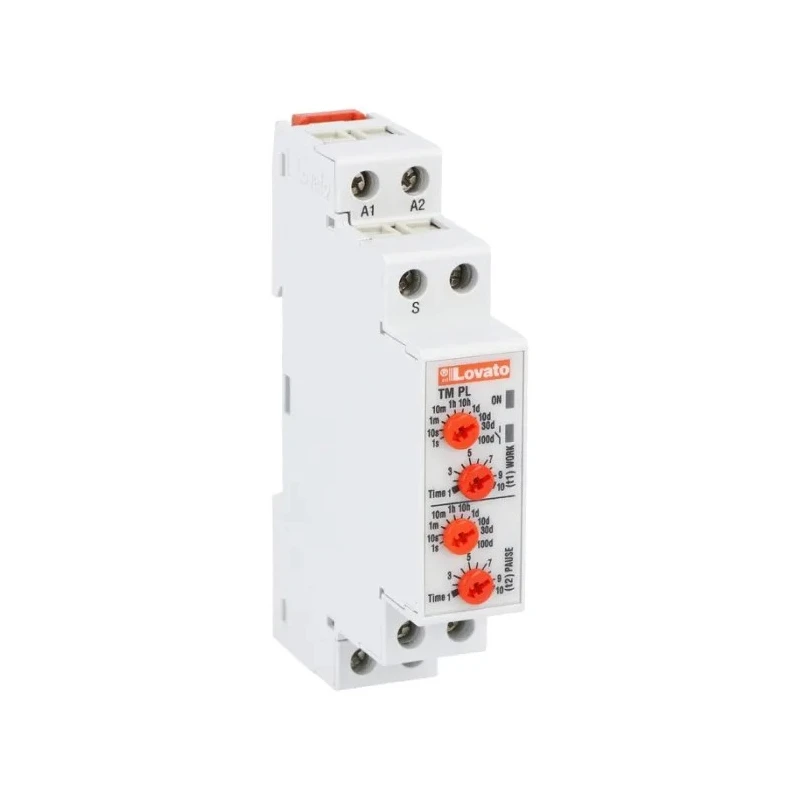

Lovato Electric TM PL Series DIN Rail Timer Relay, 2-Contact, 12 to 240 V DC, 12 V AC, 240 V AC, Time Range 0.1 s to TMPL

Lovato Electric TMPL DIN Rail Timer Relay is a multifunctional timer device designed for precise control in industrial automation and electrical systems. Supporting a voltage supply range of 12 to 240 V DC and 12 V to 240 V AC, this relay accommodates a broad spectrum of control requirements.

The relay employs an SPDT (Single Pole Double Throw) contact configuration enabling flexible switching operations. Its multifunction timer functions include programmable asymmetrical recycle time modes, providing users with customization suitable for diverse timing applications.

Engineered for installation on DIN rails, the compact form factor (Height: 64.9 mm, Width: 104.7 mm, Length: 17.5 mm) allows for space-saving mounting within control panels and electrical enclosures. Reliable screw terminals ensure secure wiring and connections.

The device carries an IP40 ingress protection rating and operates efficiently between -20°C and 60°C, making it suitable for a variety of indoor industrial environments. Rated for a contact current of 8A at 250 V AC, the relay is capable of switching various types of electrical loads safely.

Applications for the TMPL timer relay include control panels for machinery, timing automation in production processes, lighting control in commercial settings, and HVAC system scheduling. Its robust construction and adherence to standards such as IEC/EN 61812-1, UL 508, IEC/EN 61000-6-2, and CSA C22.2 No 14 affirm its quality and compliance.

SPDT contact configuration provides versatile switching. Wide supply voltage range of 12 to 240 V DC and 12 to 240 V AC. DIN rail mount design for space-efficient installation. Multifunction timer with programmable asymmetrical recycle modes.

Screw terminals offer secure and convenient connection. IP40 rated for indoor use with operating temperatures from -20°C to 60°C. Contact current rating of 8A at 250 V AC. Compact dimensions enhance panel integration. Suitable for industrial automation, HVAC, lighting, and production timing applications.

Manufactured in Italy with extensive international certifications. Explore the extensive range of Lovato Electric products and related Timer Relays available on EnvMart for your industrial automation needs.
