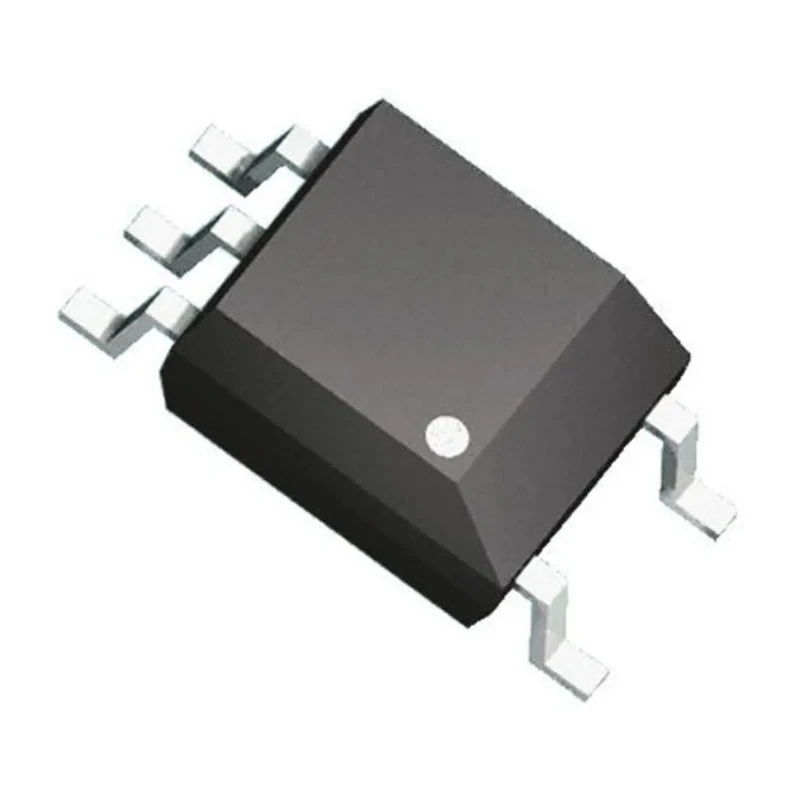

onsemi DC Input Surface Mount Optocoupler 5-Pin Mini-Flat 1 Channel 1.8V Max Forward Voltage FODM8061R2

Free Delivery in India | Lowest Global Shipping Charges

onsemi DC Input Surface Mount Optocoupler 5-Pin Mini-Flat 1 Channel 1.8V Max Forward Voltage FODM8061R2

Name: onsemi DC Input Surface Mount Optocoupler 5-Pin Mini-Flat 1 Channel 1.8V Max Forward Voltage FODM8061R2
Brand: onsemi
SKU: 412167
Price: 3.21 USD
Availability: InStock



Category Optocoupler Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Model	FODM8061R2
Packaging	Tape & Reel
Mount Type	Surface
Series	FODM
Maximum Operating Temperature	110°C
Package Type	Mini-Flat
Minimum Operating Temperature	-40°C
Maximum input current	50mA
Number Of Channels	1
Standards/Approvals	UL and VDE, C-UL
Maximum Forward Voltage	1.8V
Number of Pins	5
Input Current Type	DC
Typical Rise Time	20ns
Typical Fall Time	10ns
Isolation Voltage	3750V ac

Key Features

Suitable for surface mounting on printed circuit boards.
Maximum forward voltage of 1.8 volts ensures low power consumption.
Typical rise time of 20 nanoseconds and fall time of 10 nanoseconds for efficient switching.
Isolation voltage rated at 3750 volts AC for high safety standards.
Operates reliably within a temperature range of -40°C to 110°C.
Logic output capability compatible with standard interfaces.
Input DC current type with maximum input current of 50 mA.
Packaged in tape and reel format for automated assembly processes.

Product Description

onsemi FODM8061R2 is a DC input optocoupler designed for surface mounting with a 5-pin mini-flat package. It features a single channel logic output that supports reliable signal isolation in electronic circuits.

The device has a maximum forward input voltage of 1.8 V and a maximum input current of 50 mA, making it suitable for low power applications. Its typical rise and fall times of 20ns and 10ns respectively allow fast switching performance.

The isolation voltage of 3750 V AC offers high electrical isolation between input and output, ensuring protection in sensitive electronic environments. It operates efficiently over a wide temperature range from -40°C to 110°C to meet industrial conditions.

This optocoupler is supplied in tape and reel packaging to support automated surface mount assembly, enhancing production efficiency. Compliance with UL and VDE, including C-UL approvals, confirms the product meets international safety standards.

The FODM8061R2 series is broadly utilized in electronic components for power supply monitoring, logic signal isolation, telecommunications, and industrial control systems. Suitable for surface mount applications on printed circuit boards.

Maximum forward voltage limits power loss to 1.8 V. Fast switching with typical rise/fall times of 20ns/10ns. High isolation voltage of 3750 V AC for safety. Wide operating temperature range from -40°C to 110°C. Logic output compatible with industrial controls.

DC input current type, max input 50 mA. Tape and reel packaging for manufacturing automation. Certified to UL, VDE, and C-UL standards. FODM series for reliable high-performance isolation. Ideal for use in industrial automation, power monitoring, telecommunications, and other electronic system designs requiring signal isolation and noise immunity.
