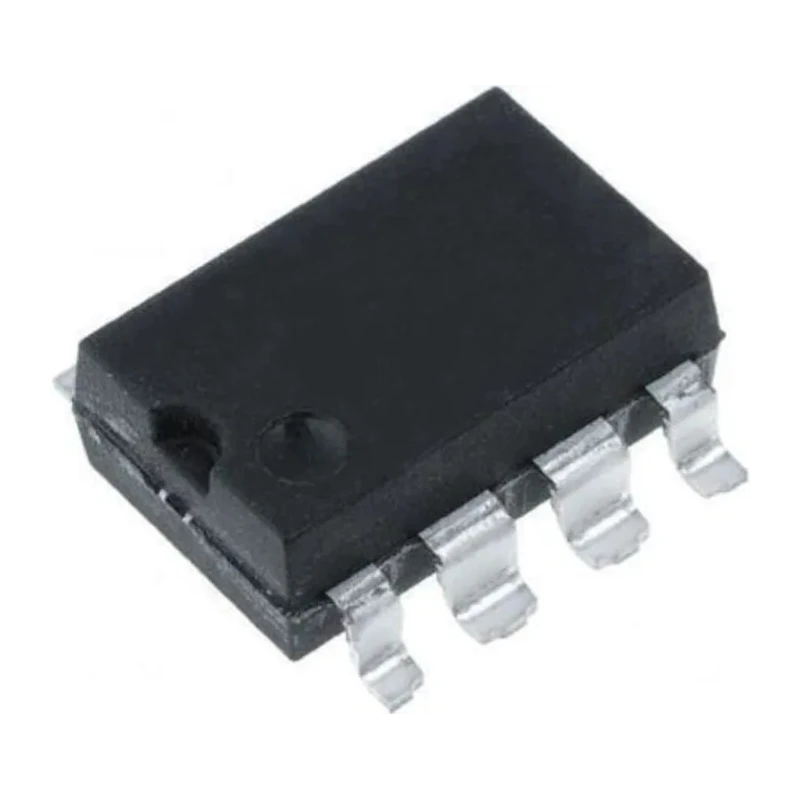

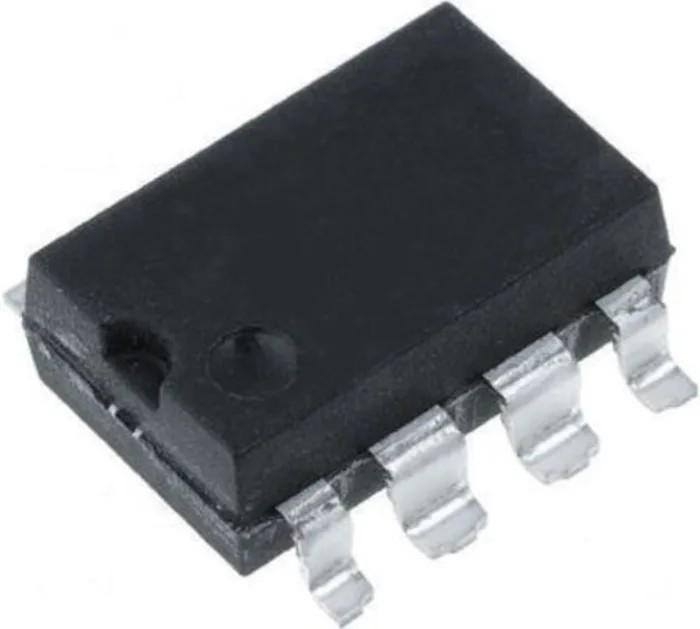

onsemi DC Input Phototransistor Output Optocoupler Surface Mount 8-Pin DIP 6N136SDM

onsemi 6N136SDM DC Input Phototransistor Output Optocoupler is a high-performance electronic component designed for electrically isolating inputs from outputs in electronic circuitry. This surface mount device comes in an 8-pin DIP package, optimized for signal transmission in power and signal isolation applications within industrial, electronic, and communication systems.

The device supports a maximum forward voltage of 1.8V and accepts a DC input current type, with a maximum rating of 200mA. It offers excellent isolation voltage of 5000V AC which safeguards circuits in noisy or high-voltage environments.

Operating reliably over a minimum temperature of -40°C up to 100°C, the 6N136SDM is designed to handle a wide range of operating conditions encountered in industrial and electronic applications. The output is logic-compatible and produced by an integrated phototransistor, facilitating controlled signal communication.

This model is packaged in tape and reel for automated PCB assembly, enhancing manufacturing efficiency. It complies with major international standards including IEC, EN, and UL, ensuring safety and reliability in various electronic systems and devices.

Operates with a maximum forward voltage of 1.8V ensuring low power consumption. Features a single-channel configuration with 8 pins for secure connectivity. Designed for DC input current type with a maximum input current rating of 200mA.

Provides high isolation voltage of 5000V AC for safety and noise immunity. Operating temperature range from -40°C to 100°C suitable for varied environments. Logic output enabled for easy interface with logic circuits. Supports a maximum current transfer ratio of 50% and minimum of 7% for reliable performance.

Packaged in tape and reel format for automated assembly processes. Compliant with IEC, EN, and UL standards for quality assurance. Part of the 6N136 series with no automotive standard compliance.

This optocoupler is ideal for industrial electronics, power control, communication devices, and any application requiring reliable electrical isolation and signal transmission with phototransistor output. Explore the full range of Optocoupler components to find the optimal solution for your electronic design and manufacturing needs at EnvMart.
