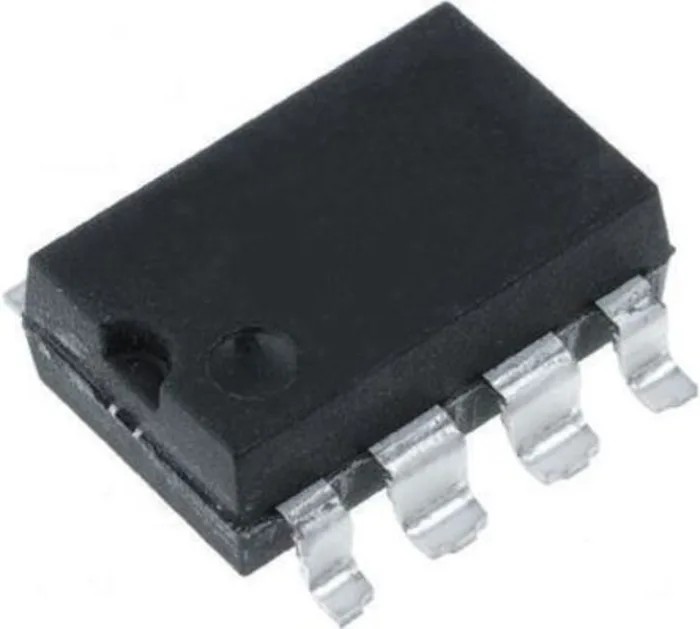

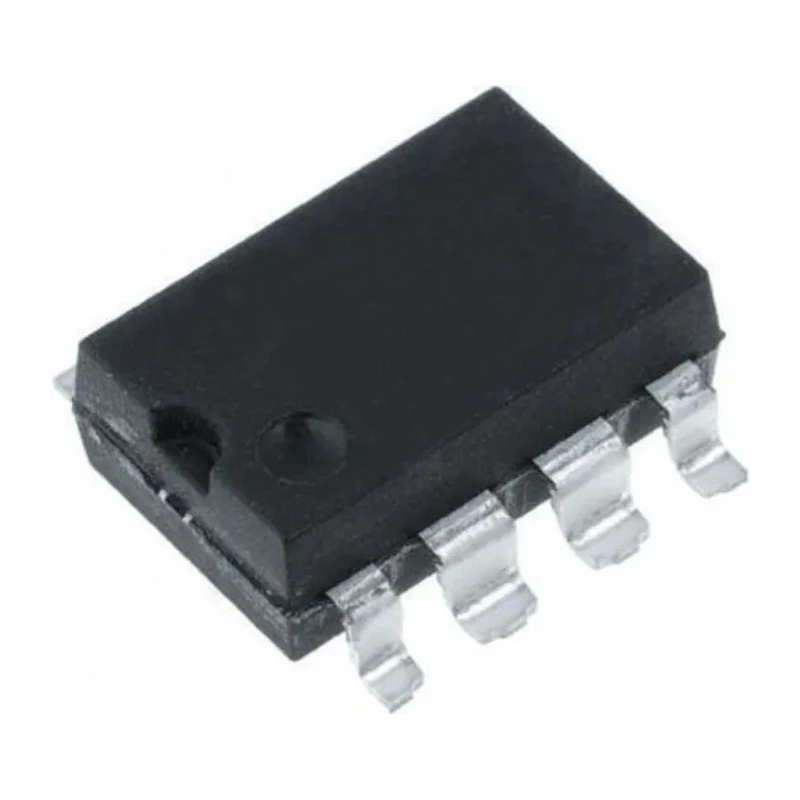

onsemi DC Input Optocoupler Surface Mount 8-Pin DIP 1 Channel Maximum Forward Voltage 1.8V 6N137SDM

The onsemi 6N137SDM DC Input Optocoupler is a surface mount electronic component designed for signal isolation and logic output in electronic circuits. Featuring an 8-pin DIP package and a single channel configuration, it is ideal for use in industrial, electronic manufacturing, and automation applications.

This device delivers a maximum forward voltage of 1.8V and supports input current up to 200mA, making it suitable for various control and interfacing requirements. The typical rise and fall times of 30ns and 10ns respectively enable rapid switching, essential for high-speed digital signal transmissions.

The optocoupler provides high isolation voltage rated at 5000V AC, ensuring electrical isolation between input and output, which protects sensitive equipment and enhances system reliability. Its operation temperature range from -40°C to 100°C supports usage in demanding environmental conditions.

The component meets recognized standards including UL, IEC, and EN, reflecting its compliance with safety and performance benchmarks. Packaged in tape and reel form, it supports efficient automated assembly processes in high-volume production.

This product is widely employed in industrial control systems, telecommunications, computer peripherals, and instrumentation circuits, where signal integrity and isolation are critical. Its robust construction and fast response times make it a dependable choice for electronic system designers.

This optocoupler features surface mount design suitable for modern PCB assemblies. The device has 8 pins in a DIP package format for ease of integration. It has a typical rise time of 30ns and fall time of 10ns ensuring fast signal switching.

The Optocoupler supports an isolation voltage of 5000V ac for safety and signal integrity. Operates reliably within a temperature range from -40°C to 100°C. Input current type is DC, with a maximum input current of 200mA for robust performance.

Complies with industry standards UL, IEC, and EN for quality assurance. The packaging is tape and reel, facilitating automated placement in manufacturing. Explore the extensive onsemi range at EnvMart for reliable optoelectronic components suited to demanding industrial and electronic applications.
