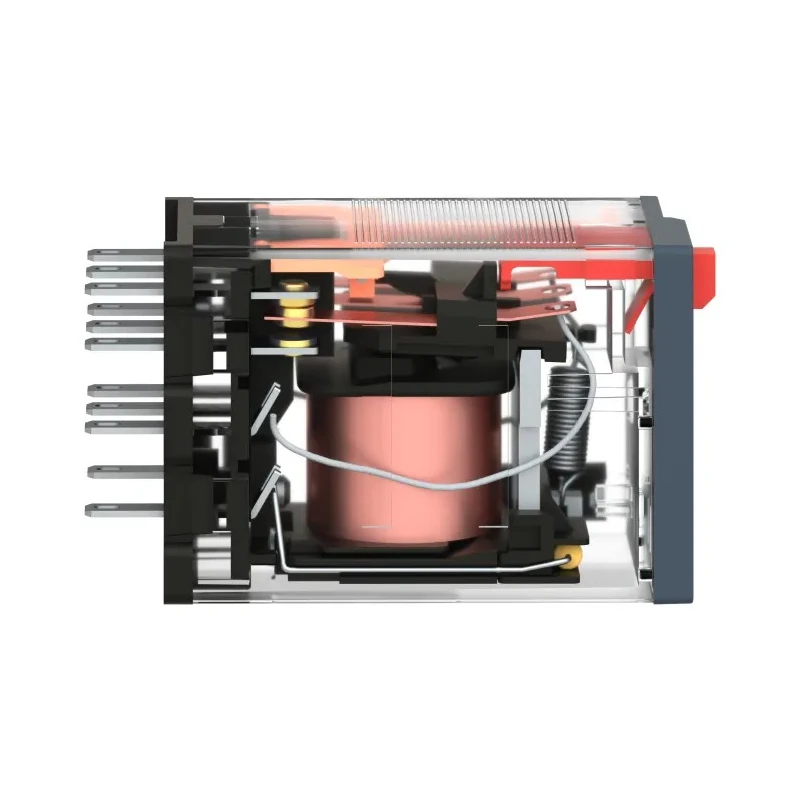

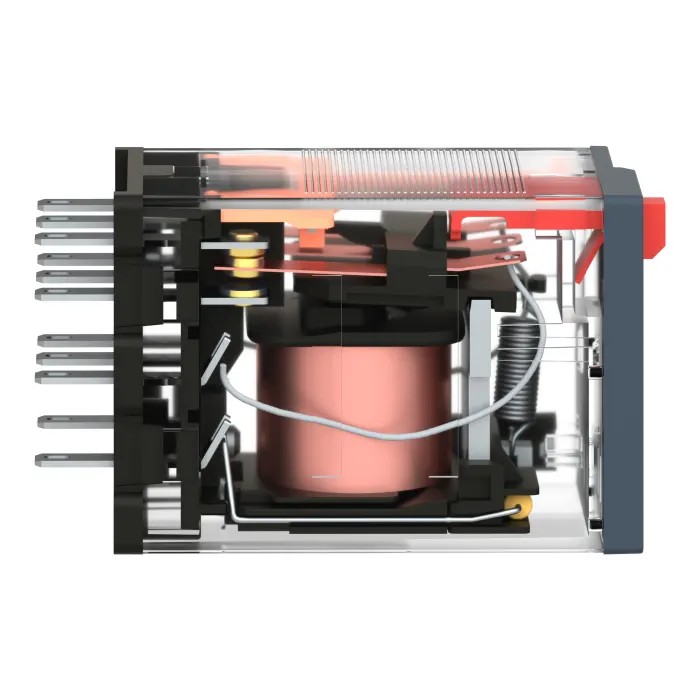

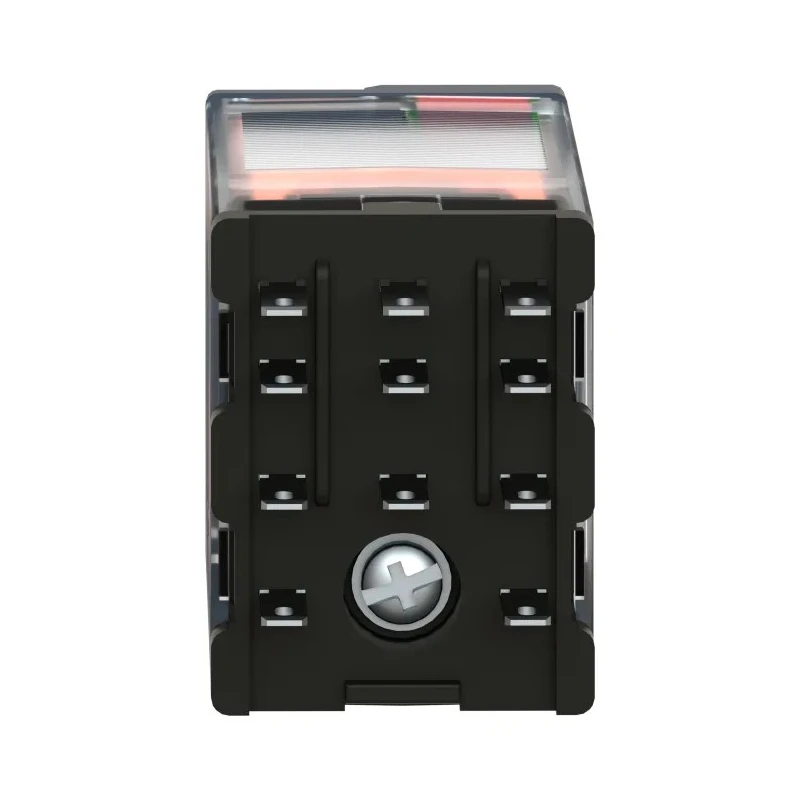

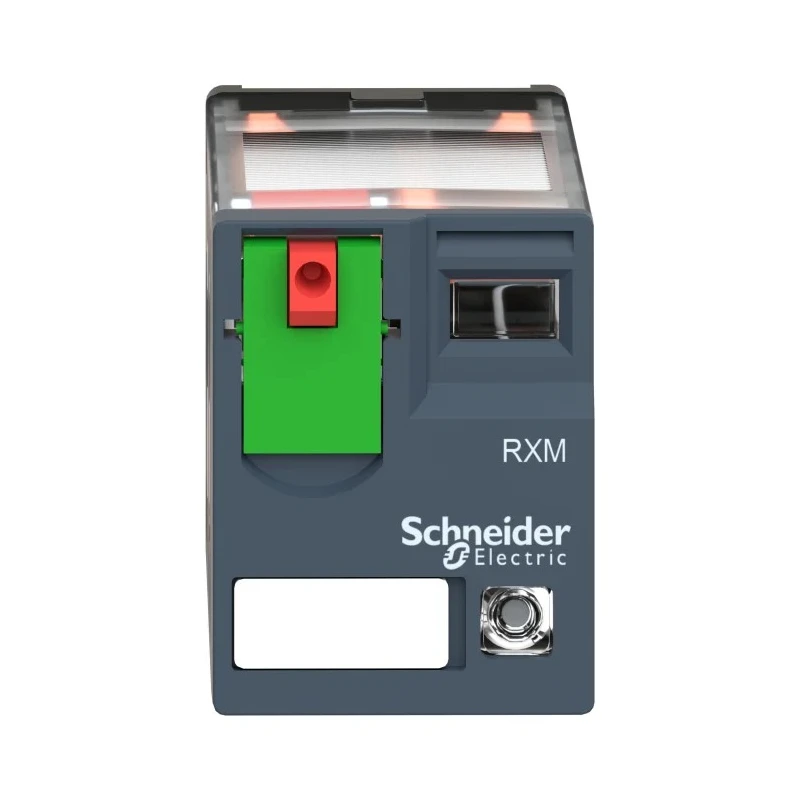

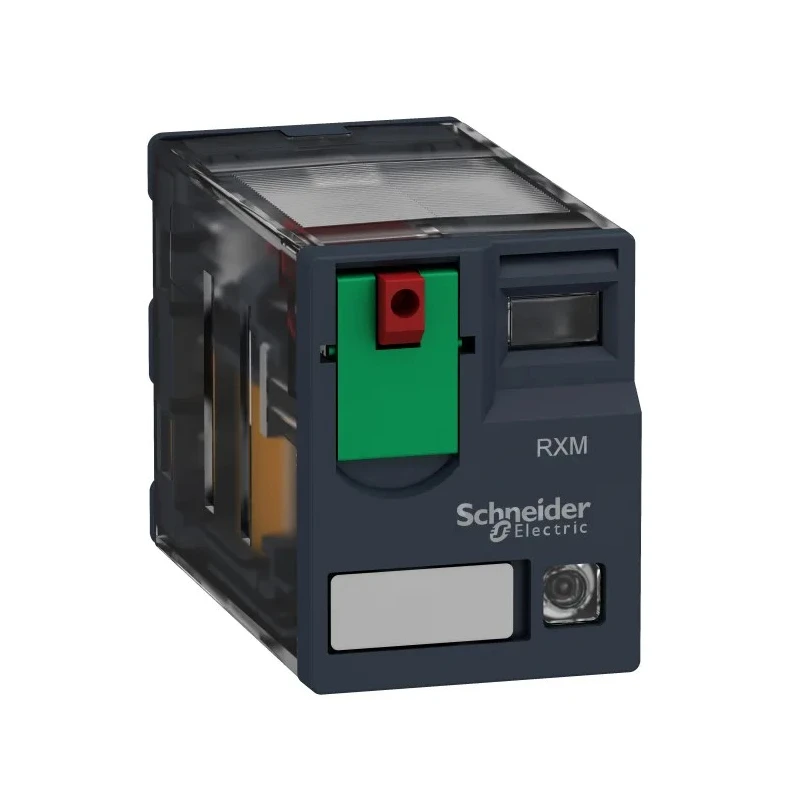

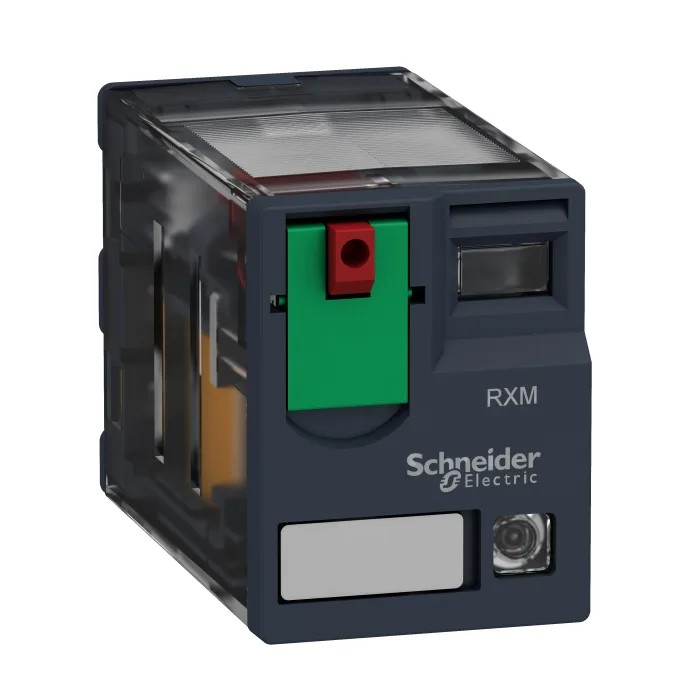

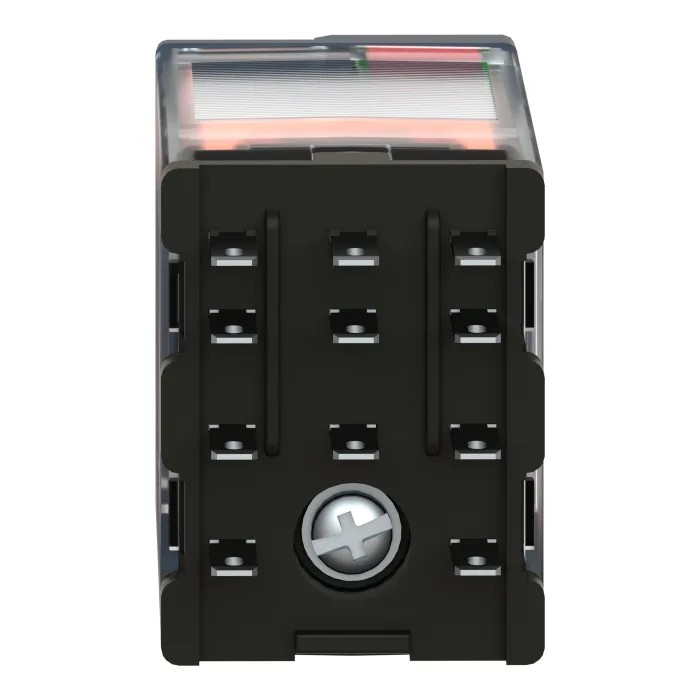

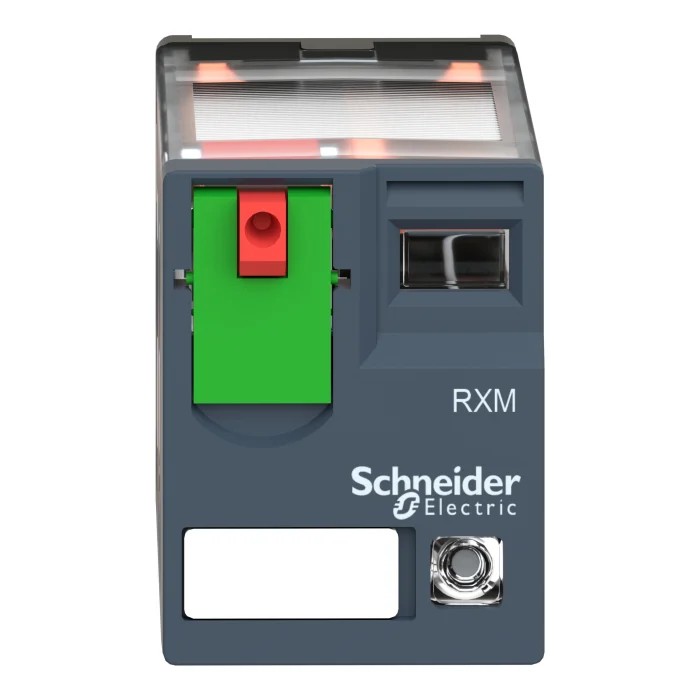

Schneider Electric Power Relay 48V ac Coil 10A Switching Current 3PDT RXM3AB2E7
Specifications
| Country of Origin | China |
|---|---|
| Brand | Schneider Electric |
| Height | 27mm |
| Length | 21mm |
| Model | RXM3AB2E7 |
| Width | 47.7mm |
| Contact Material | Silver Alloy |
| Series | Harmony Relay RXM |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | 3PDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Plug-In |
| Standards/Approvals | CSA, CE |
| Coil Resistance | 710Ω |
| Coil Voltage | 48V ac |
| Switching DC Voltage | 28V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 1.2W |
Key Features
- Compact miniature relay designed for industrial and HVAC applications.
- Equipped with a test button and mechanical status indicator for easy monitoring.
- Plug-in terminal type ensures quick installation and replacement.
- Capable of switching up to 2.5 kVA power at 250V AC and 28V DC.
- Coil resistance measured at 710 ohms with coil power consumption of 1.2 W.
- Operates reliably within temperature range from -40°C to 55°C.
- Constructed with silver alloy contacts for durability and electrical performance.
- Certified to CSA and CE standards ensuring compliance and safety.
Product Description
Schneider Electric RXM3AB2E7 is a high-quality miniature power relay from the Harmony RXM series featuring a 48V AC coil and a 3PDT contact configuration capable of switching 10A current. This compact and robust relay is designed for industrial, building automation, and HVAC equipment applications that require reliable switching and signal conditioning.
The relay includes a test button and a mechanical indicator for clear relay status monitoring, making installation and programming straightforward. It supports plug-in terminals compatible with standard bases sold separately for DIN rail or screw mounting.
With a coil resistance of 710 ohms and low coil power consumption of 1.2 watts, it provides energy-efficient operation. It can switch AC voltage up to 250V and DC voltage up to 28V with switching power up to 2.5 kVA. Its operational temperature range from -40°C to 55°C makes it suitable for harsh environments.
The relay uses durable silver alloy contacts to ensure long operational life and reliable performance. Dimensionally, it measures 27 mm in height, 21 mm in length, and 47.7 mm in width, fitting compact industrial control setups.
Compact miniature relay with 48V AC coil voltage. 3PDT contact configuration with 10A switching capability. Test button and mechanical status indicator included. Plug-in terminal design for ease of installation. Switching power up to 2.5 kVA at 250V AC and 28V DC.
Wide temperature operating range from -40°C to 55°C. Silver alloy contacts for durability and performance. Certified to CSA and CE standards for safety.
This Schneider Electric power relay is ideal for industrial automation, electrical enclosures, HVAC systems, and manufacturing machinery control. Please browse EnvMart's extensive range of Power Relays to find compatible bases and accessories for seamless integration into your electrical systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current capacity of 10A.
The coil voltage for this relay is 48V AC.
It measures 27 mm in height, 21 mm in length, and 47.7 mm in width.
It features a 3PDT (Three Pole Double Throw) contact configuration.
This relay can switch AC voltage up to 250V and DC voltage up to 28V.
The coil resistance is measured at 710 ohms.
The coil power consumption is 1.2 watts.
It operates reliably within a temperature range from -40°C to 55°C.
The contacts are constructed from silver alloy for enhanced durability and performance.
It is certified to CSA and CE standards, ensuring compliance and safety.
It features a plug-in terminal type for quick installation and replacement, compatible with standard bases sold separately.
It is designed for industrial, building automation, and HVAC equipment applications that require reliable switching.
