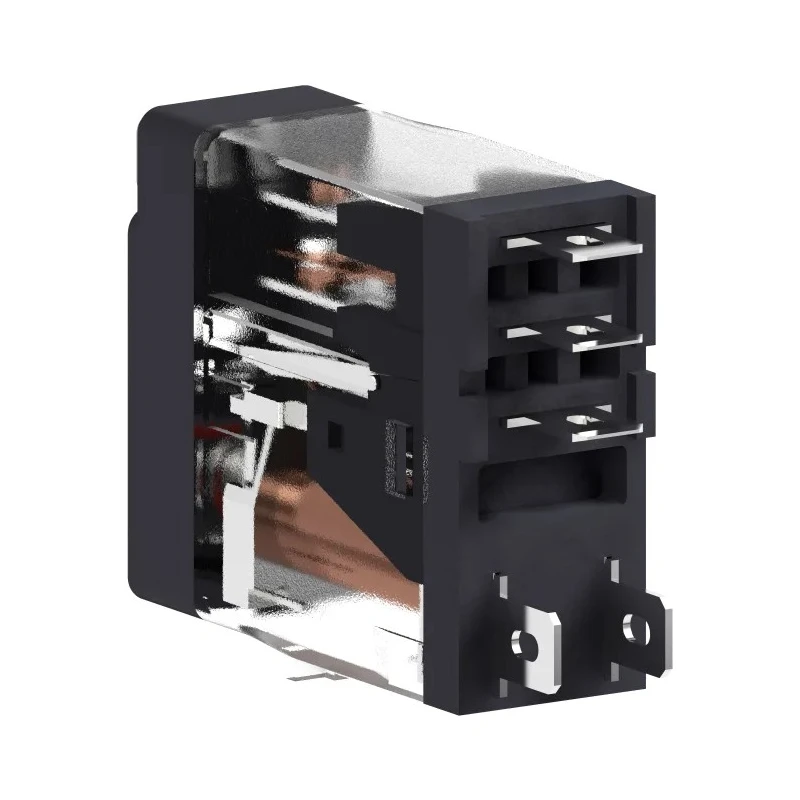

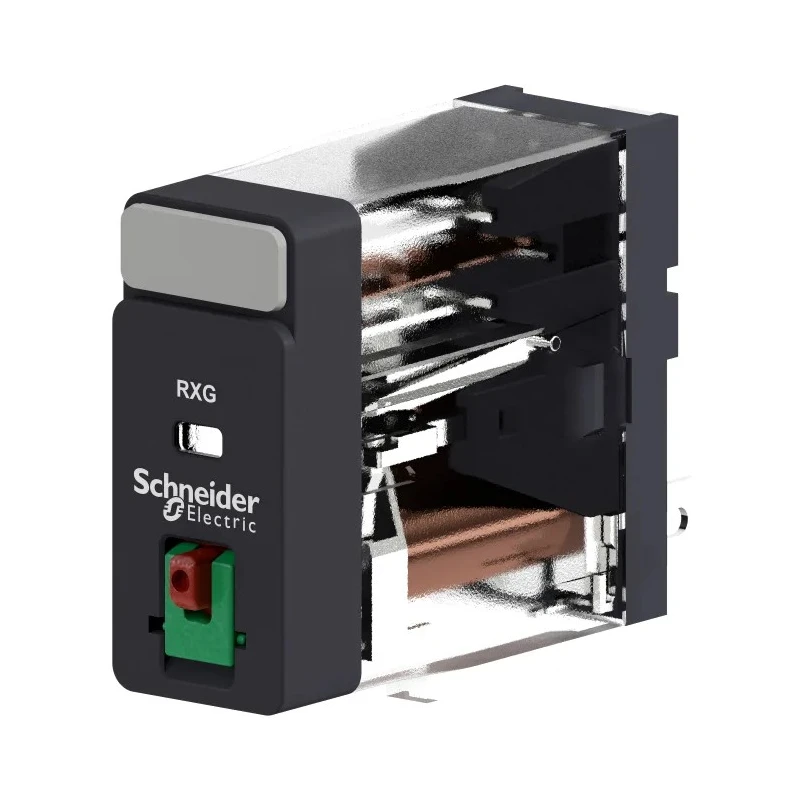

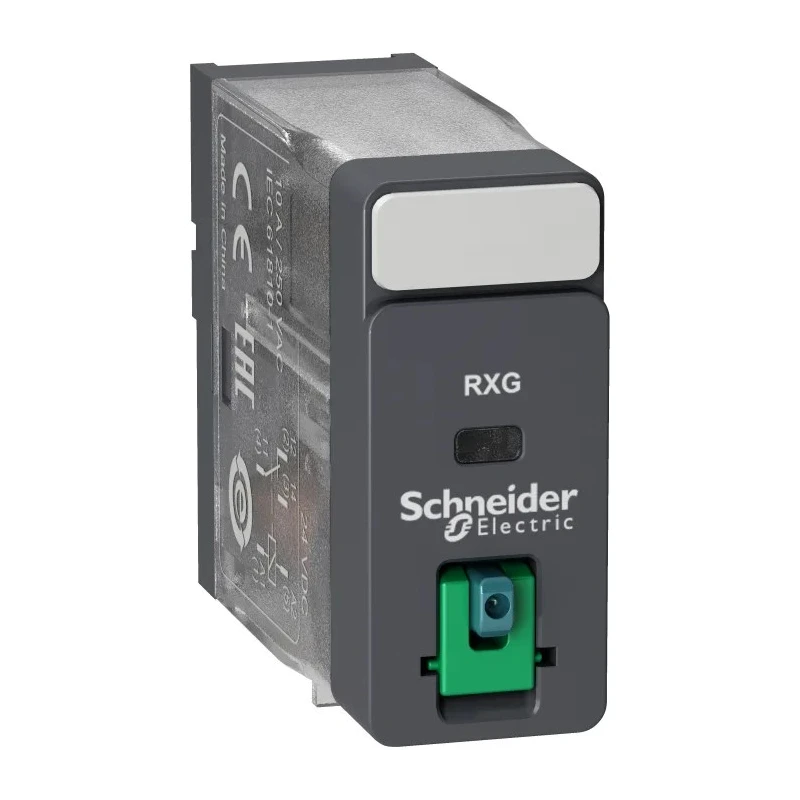

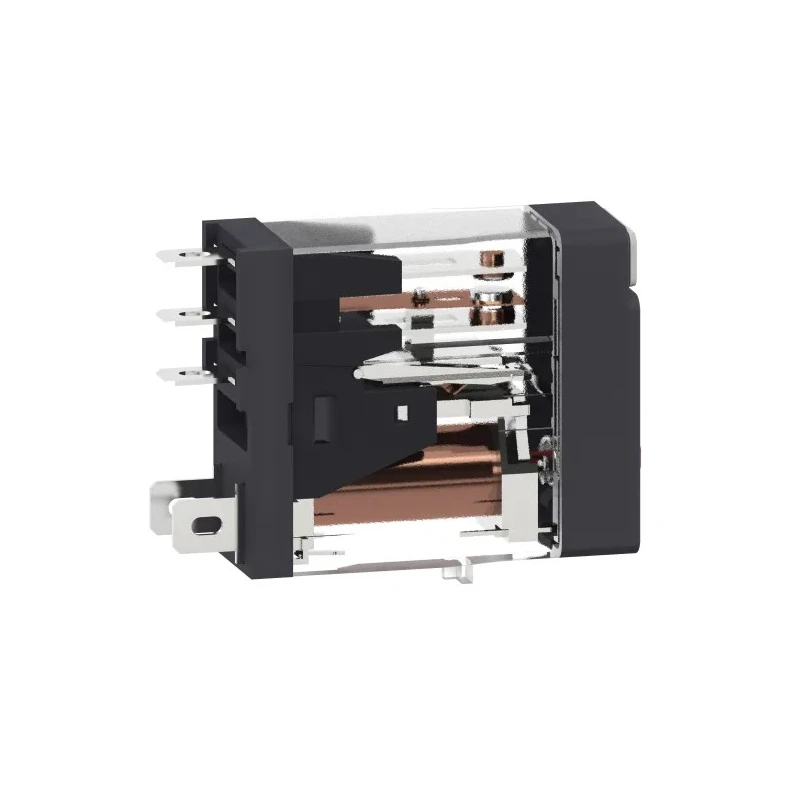

Schneider Electric Power Relay, 24V DC Coil, 10A Switching Current, SPDT RXG11BD
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Height | 30.6mm |
| Length | 13mm |
| Model | RXG11BD |
| Width | 37.1mm |
| Contact Material | Silver Alloy |
| Series | Harmony Relay RXG |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Plug-In |
| Contact Resistance | 100mΩ |
| Standards/Approvals | CSA, CE |
| Coil Resistance | 1.1kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V |
| Coil Power | 530mW |
| Better World Claim | Designed for Disassembly |
Key Features
- Designed for industrial automation and control applications.
- Plug-In terminal type ensures easy installation and maintenance.
- Operates reliably within -40°C to 70°C temperature range.
- Compact dimensions of 30.6mm height, 37.1mm width, and 13mm length.
- Constructed with silver alloy contact material for enhanced durability.
- Offers 1.1kΩ coil resistance with 530mW coil power consumption.
- Complies with CSA and CE standards for safety and quality.
- Features designed for easy disassembly to support sustainability initiatives.
Product Description
Schneider Electric RXG11BD is a high-quality power relay featuring a 24V DC coil voltage and a single pole double throw (SPDT) contact configuration rated for 10A switching current. This relay is part of the Harmony RXG series designed to optimize control systems while saving space with its slim 16mm width.
The plug-in relay socket supports reliable operation from -40°C to 70°C, suited for demanding industrial, automation, and control environments. Its compact dimensions (30.6mm height, 37.1mm width, 13mm length) allow mounting flexibility including DIN rail and panel installations.
Constructed with durable silver alloy contacts, the RXG11BD relay offers a contact resistance of 100mΩ ensuring minimal signal loss. The coil exhibits 1.1kΩ resistance and consumes 530mW power, balancing efficiency with effective switching performance. Certified by CSA and CE standards, it meets industrial safety requirements.
This relay is particularly useful for PLC interfaces, enabling hard-wired logic automation. Its plug-in terminal type and lockable test button enhance maintenance and testing operations. Designed for disassembly, this product supports sustainability goals by facilitating recycling and reuse.
Designed for industrial automation and control systems. 24V DC coil with 10A SPDT switching capacity. Wide operating temperature from -40°C to +70°C. Compact form factor for space-saving installations. Silver alloy contacts ensure durability and low resistance.
Meets CSA and CE standards for quality assurance. Plug-in socket with lockable test button for easy serviceability. Designed for disassembly promoting environmental sustainability. Reliable operation suited for PLC interface relays.
Explore more Schneider Electric Power Relays and automation components on EnvMart to find solutions tailored to your industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 24V DC.
This model can handle a maximum switching current of 10A.
The dimensions of the RXG11BD relay are 30.6mm in height, 37.1mm in width, and 13mm in length.
It operates reliably within a temperature range of -40°C to 70°C.
This relay features a single pole double throw (SPDT) contact configuration.
The contacts are constructed from silver alloy material.
The coil resistance of the RXG11BD is 1.1kΩ.
Yes, it complies with CSA and CE standards for safety and quality.
It features a plug-in terminal type for easy installation.
The coil power consumption is 530mW.
Yes, it includes a lockable test button and is designed for easy disassembly to support maintenance and sustainability initiatives.
This power relay is designed for industrial automation and control applications, particularly for PLC interfaces.
