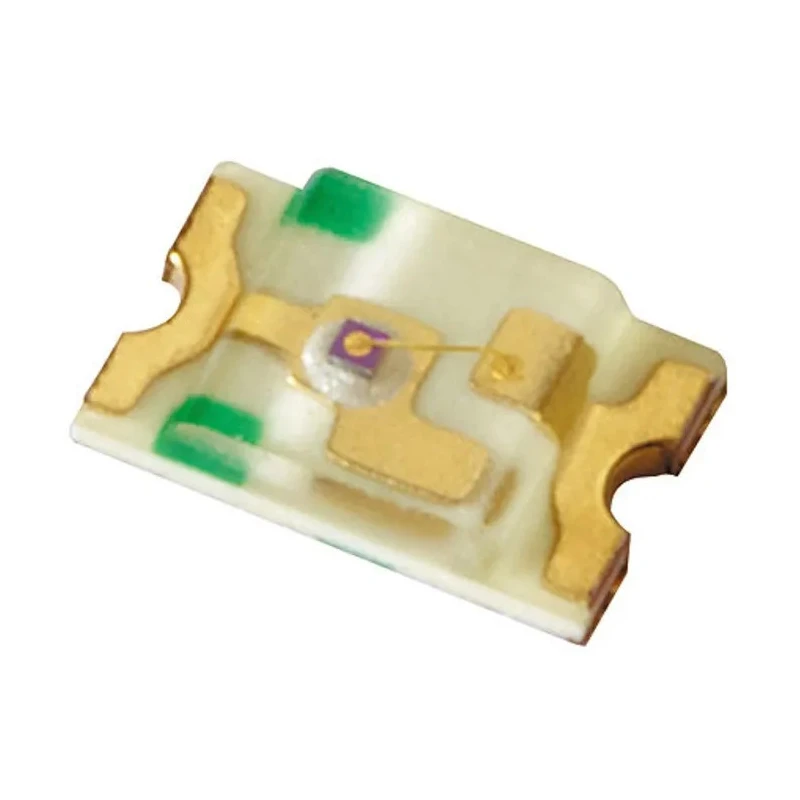

Kingbright Green LED 2012 Surface Mount 4.1 V 150mA 400mcd Rectangular Lens KPHCM-2012ZGC
Specifications
| Country of Origin | China |
|---|---|
| Brand | Kingbright |
| Dimensions | 2 x 1.25 mm |
| Model | KPHCM-2012ZGC |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | KPHCM-2012 |
| Maximum forward current | 150mA |
| Viewing angle | 110 ° |
| Package Type | 2012 |
| Standards/Approvals | RoHS |
| LED Colour | Green |
| Dominant Wavelength | 525nm |
| Forward Voltage | 4.1V |
| Number of Pins | 2 |
| LED Luminosity | 400 mcd |
| Maximum Power Dissipation | 102.5mW |
| Lens Dimensions | 2 x 1.25 x 0.4 mm |
| Lens Shape | Rectangular |
Key Features
- Standard 2012 surface mount package measuring 2 x 1.25 x 0.4 mm.
- Maximum forward current rating of 150mA for safe operation.
- Emits green light with a dominant wavelength of 525 nm and brightness of 400 mcd.
- Rectangular clear lens with a viewing angle of 110 degrees for wide visibility.
- Low power dissipation rating of 102.5 mW ensures energy efficiency.
- Surface mount design suitable for automated PCB assembly using tape and reel packaging.
- Complies with RoHS standards ensuring environmental safety.
- Two-pin electrical connection ideal for indicator and backlighting applications.
Product Description
Kingbright KPHCM-2012ZGC is a high-quality green LED designed for surface mounting in the industry standard 2012 (0805) package. It features a compact rectangular clear lens with dimensions of 2 x 1.25 x 0.4 mm, making it suitable for tight PCB layouts and automated assembly processes.
The LED operates at a forward voltage of 4.1 V with a maximum forward current of 150 mA, allowing for bright and efficient illumination. Its luminous intensity of 400 mcd and dominant wavelength of 525 nm provide vivid green emission, ideal for indicators, backlighting, and status signals in electronic devices.
The wide viewing angle of 110 degrees ensures the light is visible from multiple directions, improving device visibility. Its low maximum power dissipation of 102.5 mW ensures minimal energy consumption, beneficial for power-sensitive applications.
Packaged in tape and reel format, this LED is ready for automated production, enhancing assembly speed and reducing manual handling. This product complies with RoHS directives, ensuring it meets environmental and safety requirements.
Typical applications include electronic indicators, backlighting in displays, instrumentation, and general lighting within industrial, manufacturing, and commercial electronics, where reliable and efficient LED solutions are required.
Standard 2012 surface mount package measuring 2 x 1.25 x 0.4 mm. Maximum forward current rating of 150mA for safe operation. Emits green light with a dominant wavelength of 525 nm and brightness of 400 mcd. Rectangular clear lens with a viewing angle of 110 degrees for wide visibility.
Low power dissipation rating of 102.5 mW ensures energy efficiency. Surface mount design suitable for automated PCB assembly using tape and reel packaging. Complies with RoHS standards ensuring environmental safety. Two-pin electrical connection ideal for indicator and backlighting applications.
Explore more Kingbright LEDs and components on EnvMart for your electronics design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has dimensions of 2 x 1.25 mm for the surface mount package, with a lens thickness of 0.4 mm.
The maximum forward current rating for the KPHCM-2012ZGC is 150 mA, ensuring safe operation during use.
It emits green light with a dominant wavelength of 525 nm, providing vivid green illumination.
The luminous intensity of the KPHCM-2012ZGC is 400 mcd, making it suitable for various indicator applications.
This model features a viewing angle of 110 degrees, allowing for wide visibility of the emitted light.
The forward voltage for the KPHCM-2012ZGC is 4.1 V, which is necessary for its operation.
It is packaged in tape and reel format, which is suitable for automated PCB assembly processes.
This model has a two-pin electrical connection, making it ideal for various indicator and backlighting applications.
The maximum power dissipation rating for the KPHCM-2012ZGC is 102.5 mW, ensuring energy efficiency during operation.
Yes, this LED complies with RoHS standards, ensuring it meets environmental and safety requirements.
Typical applications include electronic indicators, backlighting in displays, and general lighting in industrial and commercial electronics.
The lens shape of this LED is rectangular, which contributes to its compact design and effective light emission.
