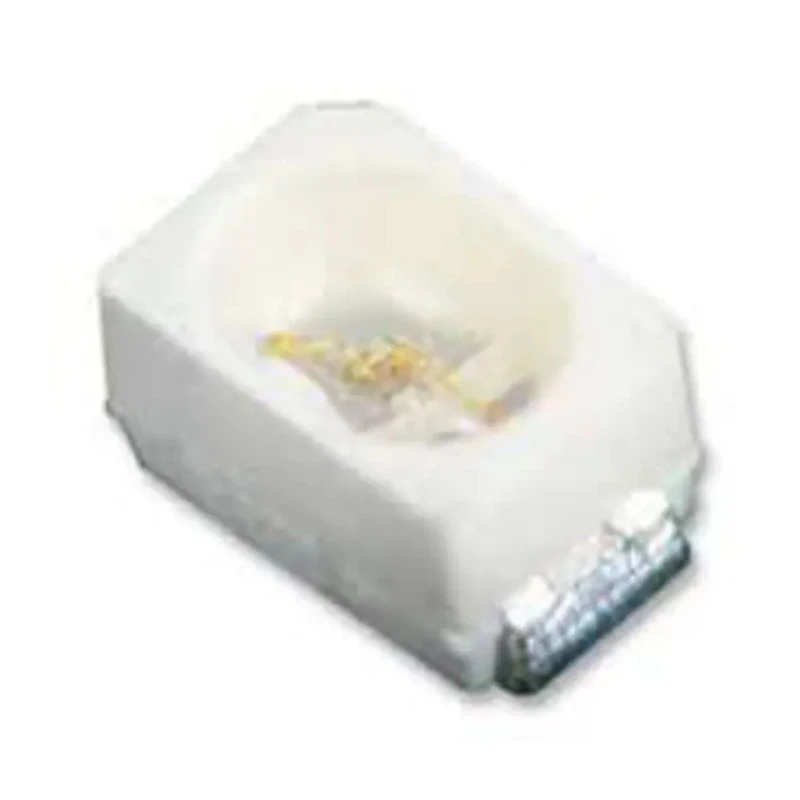

Kingbright 2.5 V Red LED PLCC 2 Surface Mount Light Emitting Diode KA-3021ES

Name: Kingbright 2.5 V Red LED PLCC 2 Surface Mount Light Emitting Diode KA-3021ES
Brand: Kingbright
SKU: 411427
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand Kingbright Condition New

Specifications

Country of Origin	China
Brand	Kingbright
Dimensions	3 x 2 mm
Model	KA-3021ES
Mount Type	Surface
Series	KA-3021
Maximum forward current	30mA
Viewing angle	125 °
Package Type	PLCC 2
Standards/Approvals	RoHS Compliant
LED Colour	Red
Dominant Wavelength	617nm
Forward Voltage	2.5V
Number of Pins	2
LED Luminosity	30 mcd
Maximum Power Dissipation	75mW
Lens Dimensions	3.0 x 2.0 x 1.3 mm
Lens Shape	Rectangular

Key Features

This LED operates at a forward voltage of 2.5 V with a maximum forward current of 30 mA.
It features a PLCC 2 package type with surface mount design suitable for space-limited PCB layouts.
The diode has a maximum power dissipation of 75 mW ensuring reliable performance.
It offers a wide viewing angle of 125 degrees and emits a red color with a dominant wavelength of 617 nm.
The lens is rectangular with a clear water-clear finish measuring 3.0 x 2.0 x 1.3 mm.
This RoHS compliant LED provides visible light output with 30 mcd luminosity for effective indication or lighting.
Manufactured in China with a high-quality SMT chip adhering to standard 3021 series specifications.

Product Description

Kingbright KA-3021ES is a red LED housed in a compact PLCC-2 3021 surface mount package, operating at 2.5 V forward voltage and capable of handling up to 30 mA forward current. This LED is designed for general purpose optoelectronic uses where PCB space is limited. Its rectangular, water-clear lens provides a wide 125° viewing angle, allowing uniform light dispersion with a dominant wavelength of 617 nm.

The LED’s luminous intensity is 30 mcd, which is suitable for indication lights, display backlighting, and other visible lighting applications. The device’s maximum power dissipation is 75 mW, ensuring reliable operation within specified limits. The lens dimensions are precisely 3.0 x 2.0 x 1.3 mm to fit seamlessly into various electronic assemblies.

The KA-3021ES is RoHS compliant, ensuring it meets environmental safety standards, and is manufactured in China to meet consistent quality benchmarks. It is commonly used in industrial, electronic manufacturing, instrumentation, and electronic component assembly contexts. This surface mount device is ideal for automated insertion in mass production environments, improving manufacturing efficiency.

This LED operates at a forward voltage of 2.5 V with a maximum forward current of 30 mA. Features a PLCC 2 surface mount package with compact dimensions. Offers a maximum power dissipation rating of 75 mW. Emits red light with a dominant wavelength of 617 nm and luminosity of 30 mcd.

Has a wide viewing angle of 125 degrees for broad light dispersion. Lens is rectangular, clear finished with dimensions 3.0 x 2.0 x 1.3 mm. Complies with RoHS environmental standards. Manufactured in China to quality standards.
