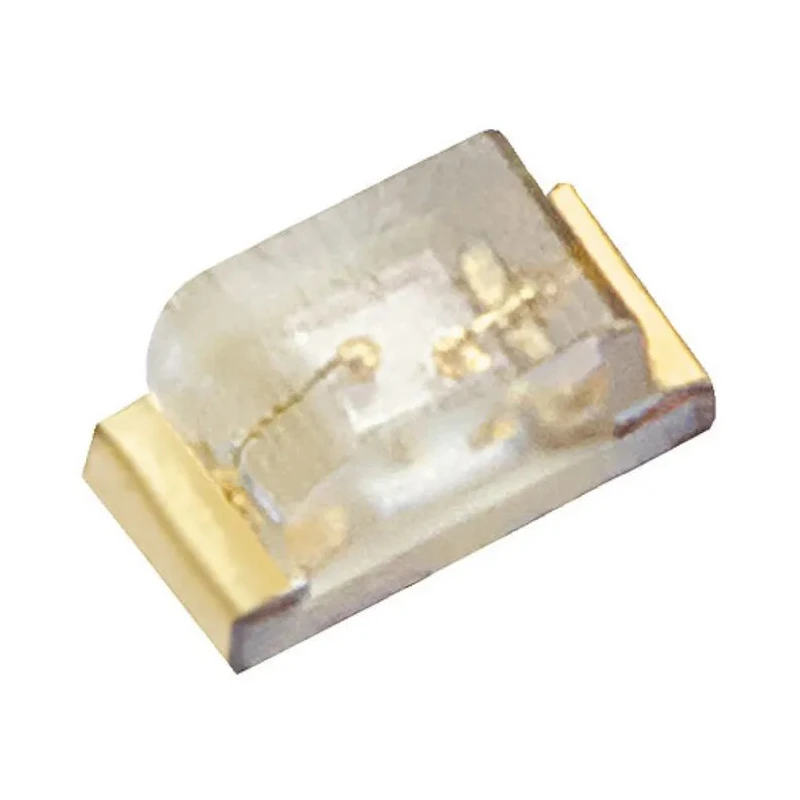

Kingbright 2.5 V Green LED 0402 Surface Mount Chip LED KPHHS-1005CGCK
Specifications
| Country of Origin | China |
|---|---|
| Brand | Kingbright |
| Model | KPHHS-1005CGCK |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | KPHHS-1005 |
| Maximum forward current | 150mA |
| Viewing angle | 120 ° |
| Package Type | 0402 |
| Standards/Approvals | RoHS |
| LED Colour | Green |
| Dominant Wavelength | 570nm |
| Forward Voltage | 2.5V |
| Number of Pins | 2 |
| LED Luminosity | 50 mcd |
| Maximum Power Dissipation | 75mW |
| Lens Dimensions | 1 x 0.5 x 0.5 mm |
| Lens Shape | Rectangular |
Key Features
- Operates at a forward voltage of 2.5 V ensuring energy-efficient performance.
- Maximum forward current rating of 150 mA for reliable operation.
- Compact package size of 1.0 x 0.5 x 0.5 mm suitable for surface mount technology.
- Provides a wide viewing angle of 120 degrees for broad visibility.
- Delivers luminosity of 50 millicandela with a dominant wavelength of 570 nm.
- Packaged in tape & reel for efficient automated assembly processes.
- Rectangular clear lens shape ensures optimal light dispersion.
- RoHS compliant, ensuring adherence to environmental standards.
Product Description
Kingbright KPHHS-1005CGCK Green LED 0402 Surface Mount Chip LED is designed for efficient and compact light emitting diode applications. Operating at a forward voltage of 2.5 V with a maximum forward current of 150 mA, this LED chip offers bright and stable illumination while maintaining low power consumption. Its standard 0402 package size (1.0 x 0.5 x 0.5 mm) facilitates a compact footprint suitable for surface mount technology assembly in modern electronic devices.
The LED emits green light with a dominant wavelength of 570 nm and a luminosity of 50 mcd, providing good visibility with a wide viewing angle of 120°. Its clear rectangular lens enhances light dispersion for effective indication and backlighting purposes. Packaged in tape and reel format, this LED supports automated pick-and-place manufacturing, improving production efficiency.
This chip LED is RoHS compliant, ensuring it meets environmental safety standards for mercury and hazardous substances. It is ideal for industrial, consumer electronics, communications equipment, and display modules where small, energy-efficient green indicator LEDs are required.
Forward voltage: 2.5 V for efficient power use. Maximum forward current: 150 mA for reliable operation. Compact 0402 package size supporting surface mount technology. Wide 120° viewing angle for enhanced visibility. 50 mcd brightness with 570 nm wavelength, perfect for bright green indication.
Clear rectangular lens design for optimal light output. Tape and reel packaging enabling automated assembly lines. RoHS compliant to meet environmental regulations. Applications include indicator lights, backlighting, displays, and instrumentation.
Manufactured in China, new product condition.
This Kingbright LED model KPHHS-1005CGCK stands as a reliable choice for electronic engineers requiring high quality green LEDs in a miniature form factor. For a broad selection of LEDs and electronic components, explore the categories and brands available at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The forward voltage of the Kingbright KPHHS-1005CGCK is 2.5 V, which ensures energy-efficient performance.
This LED has a maximum forward current rating of 150 mA, allowing for reliable operation in various applications.
The package size of this LED is 0402, measuring 1.0 x 0.5 x 0.5 mm, making it suitable for surface mount technology.
It features a wide viewing angle of 120 degrees, providing broad visibility for effective indication.
This LED delivers a luminosity of 50 millicandela, which is suitable for bright green indication.
The dominant wavelength of the emitted light is 570 nm, producing a green light suitable for various applications.
It is packaged in tape and reel format, facilitating efficient automated assembly processes.
The LED features a clear rectangular lens shape, which ensures optimal light dispersion for effective illumination.
Yes, the KPHHS-1005CGCK is RoHS compliant, adhering to environmental safety standards regarding hazardous substances.
This LED is ideal for applications such as indicator lights, backlighting, displays, and instrumentation.
The maximum power dissipation for this model is 75 mW, ensuring it operates efficiently within specified limits.
This LED has 2 pins, making it suitable for standard electronic connections in various devices.
