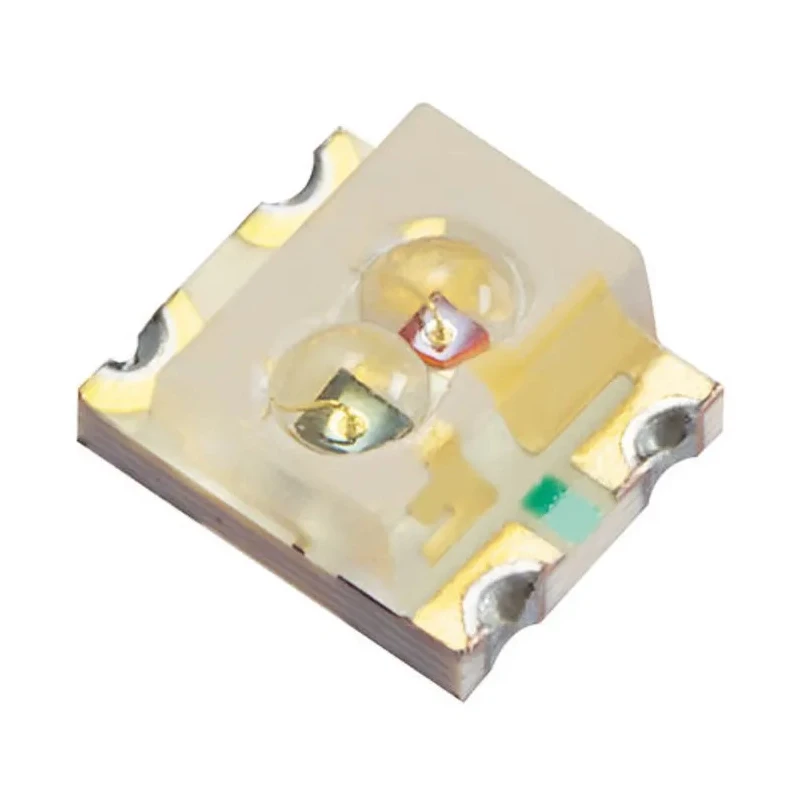

Kingbright 2.5 V Red, Green LED 3025 Surface Mount Dual-Color Indicator KPBL-3025ESGC
Specifications
| Country of Origin | China |
|---|---|
| Brand | Kingbright |
| Dimensions | 3.0 x 2.5 mm |
| Model | KPBL-3025ESGC |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Number Of Leds | 2 |
| Maximum forward current | 30mA |
| Viewing angle | 100 ° |
| Package Type | 3025 |
| Standards/Approvals | RoHS |
| LED Colour | Red, Green |
| Dominant Wavelength | 617nm |
| Forward Voltage | 2.5V |
| Number of Pins | 4 |
| LED Luminosity | 20 mcd |
| Maximum Power Dissipation | 75mW |
| Lens Dimensions | 3 x 2.5 x 1.4 mm |
| Lens Shape | Dome |
Key Features
- Bi-color red and green LED suitable for surface mounting.
- Operates at a forward voltage of 2.5 V with maximum forward current of 30 mA.
- Compact 3025 package size with dome-shaped clear lens.
- Wide viewing angle of 100 degrees ensures good visibility.
- Low power dissipation of 75 mW promoting efficient operation.
- LED luminosity output of 20 millicandela enhances indicator brightness.
- Four pins provide stable connection and ease of PCB integration.
- Compact lens dimensions of 3 x 2.5 x 1.4 mm for space-saving designs.
Product Description
Kingbright KPBL-3025ESGC is a dual-color Light Emitting Diode (LED) featuring red and green colors designed for surface mount technology (SMT) applications. With a forward voltage of 2.5 V and maximum forward current of 30mA, this LED offers efficient and reliable illumination for diverse electronic indicator uses.
The device utilizes the industry-standard 3025 package with compact lens dimensions of 3 x 2.5 x 1.4 mm and a dome-shaped clear lens that provides a wide viewing angle of 100 degrees. The luminous intensity of 20 mcd ensures indicators are visible under various lighting conditions, making it suitable for precise signaling and status display.
With a maximum power dissipation of 75 mW and four pins configuration, installation on printed circuit boards is straightforward and suited for automated manufacturing processes with tape & reel packaging. This LED is RoHS compliant and built to meet environmental and safety standards, manufactured in China.
Kingbright KPBL-3025ESGC LEDs find applications in electronic components for backlighting, status indications, and other visual signaling in industrial, commercial, and consumer equipment. Their compact size and dual-color functionality make them versatile for various designs requiring space efficiency and reliable performance.
Bi-color red and green LED suitable for surface mounting. Operates at a forward voltage of 2.5 V with maximum forward current of 30 mA. Compact 3025 package size with dome-shaped clear lens. Wide viewing angle of 100 degrees ensures good visibility.
Low power dissipation of 75 mW promoting efficient operation. LED luminosity output of 20 millicandela enhances indicator brightness. Four pins provide stable connection and ease of PCB integration. Compact lens dimensions of 3 x 2.5 x 1.4 mm for space-saving designs.
Manufactured with RoHS-compliant materials ensuring environmental safety. Ideal for use in backlights, indicators, and electronic displays. For more high-quality LEDs and electronic components, browse the Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The forward voltage of this LED is 2.5 V.
The maximum forward current for this model is 30 mA.
The dimensions of this LED are 3.0 x 2.5 mm with a lens thickness of 1.4 mm.
The viewing angle of the KPBL-3025ESGC is 100 degrees, ensuring good visibility.
The luminosity output of this dual-color LED is 20 millicandela.
This LED is packaged in tape & reel format, suitable for automated manufacturing processes.
The KPBL-3025ESGC is designed for surface mounting.
The maximum power dissipation for this model is 75 mW.
This LED features four pins for stable connection and ease of PCB integration.
This model emits red and green colors, making it a dual-color indicator.
Yes, this LED is RoHS compliant, ensuring it meets environmental and safety standards.
This LED is suitable for applications such as backlighting, status indications, and visual signaling in various electronic devices.
