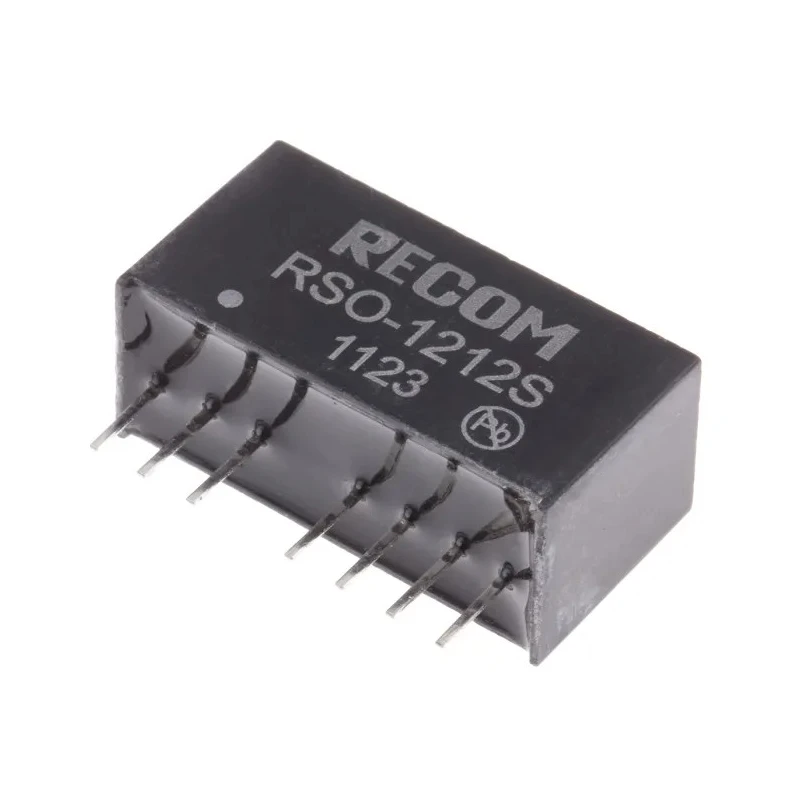

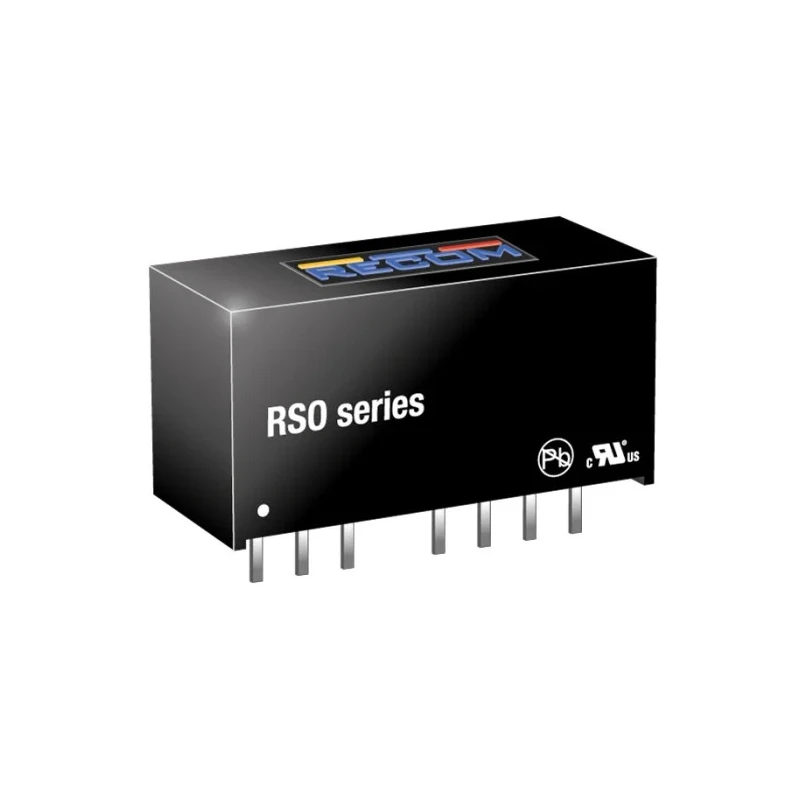

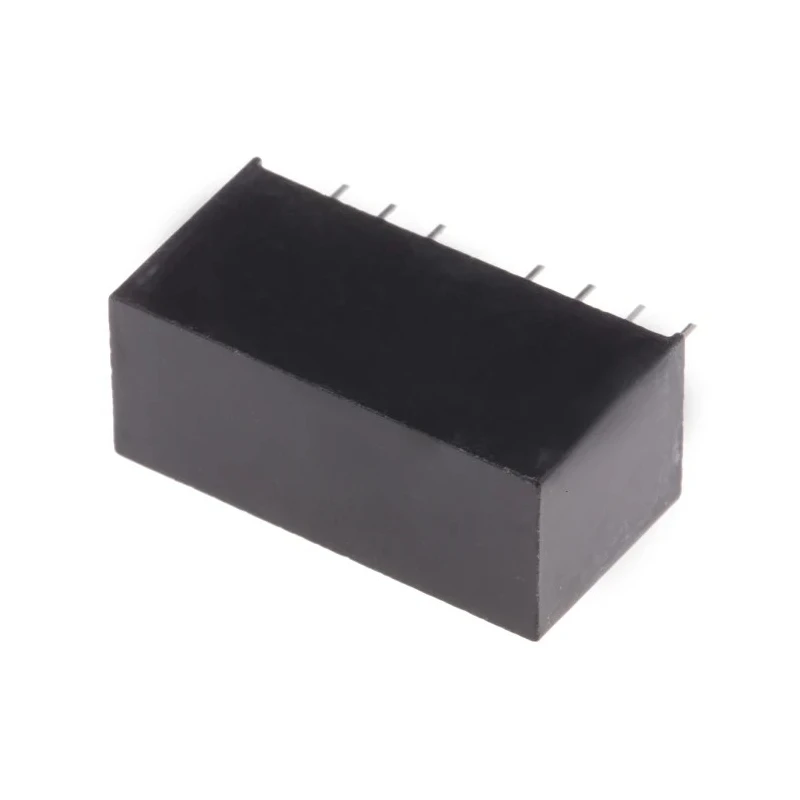

Recom DC/DC Converter, 12V DC Output, 83 mA, 18V DC Max Input, 9V Min Input, 1W Power, Through Hole Mount RSO-1212S

Recom RSO-1212S is a precision DC/DC Converter offering a regulated 12V DC output at 83 mA with a maximum output power of 1W. It is designed with a through hole mount SIP package for easy integration into various PCB designs.

This converter operates efficiently between 9V and 18V DC input range, providing an isolated barrier with 500V AC isolation voltage to prevent electrical hazards. Its compact size (21.8mm length, 9.2mm width, and 11.1mm depth) and wide operational temperature range (-40°C to 85°C) make it suitable for demanding industrial and commercial applications.

The low output ripple and noise of 50mVp-p ensure signal clarity, making it ideal for sensitive electronics such as lighting fixtures, communication equipment, and smartphones. With an efficiency of 83%, the device generates minimal heat, eliminating the need for additional cooling mechanisms.

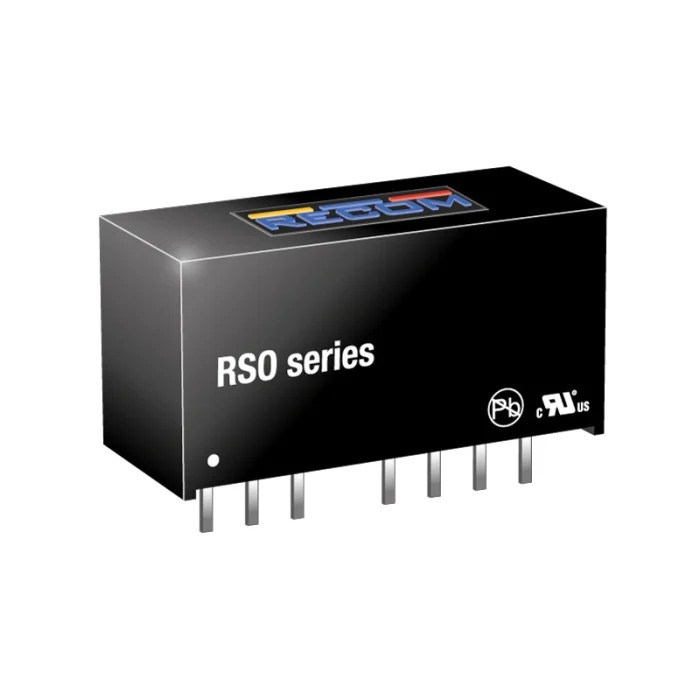

Recom has incorporated continuous short-circuit protection into this model to safeguard against irregular current flow, enhancing device reliability. The converter features 8 pins and belongs to the RSO series, known for high MTBF of 1,685,000 hours, confirming durable long-term performance.

Applications include electrical engineering projects, communication devices, and industrial systems requiring reliable voltage conversion with isolation protection. This device is manufactured in Taiwan, Province of China, complying with industry standards despite no formal approvals listed.

Operates with input voltage range from 9V to 18V DC. Offers isolated output with 500V AC isolation voltage for safety. Wide operational temperature range from -40°C to 85°C for industrial environments. Maximum output ripple and noise of 50mVp-p ensures clean signals.

Efficiency rating of 83%, minimizing heat generation without the need for a heat sink. Continuous short-circuit protection for enhanced reliability. Compact SIP package with dimensions 21.8mm x 9.2mm x 11.1mm. Designed for electrical engineering, lighting fixtures, smartphones, and communications equipment.

High reliability with MTBF of 1,685,000 hours for long operational life. Manufactured in Taiwan, Province of China. Explore the range of DC/DC Converters by Recom and other brands at EnvMart for your electronic power conversion needs.
