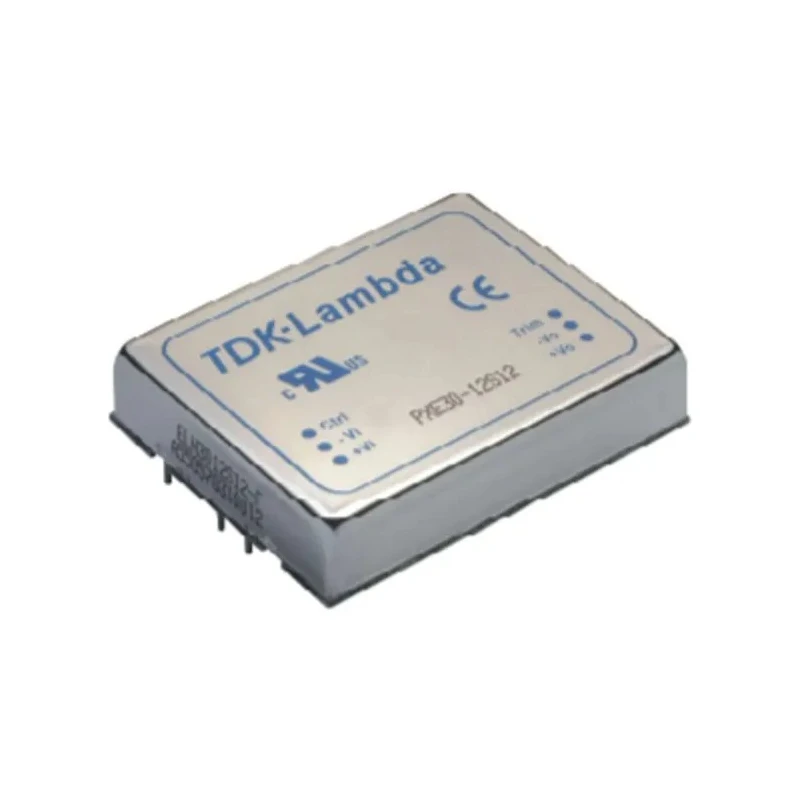

TDK-Lambda PXE DC/DC Converter Dual Output 15V DC 670mA 75V DC Max Input 20W PCB Mount PXE20-48WD15
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TDK-Lambda PXE DC/DC Converter, 15V dc/ 670 mA, 75 |
| Brand | TDK-Lambda |
| Efficiency | 0.84% |
| Length | 50.8mm |
| Model | PXE20-48WD15 |
| Depth | 10.2mm |
| Gross Weight | 48g |
| Width | 40.6mm |
| Mount Type | PCB |
| Series | PXE |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1976000h |
| Number of outputs | 2 |
| Ripple and Noise | 100mV |
| Maximum Output Power | 20W |
| Maximum Input Voltage | 75V dc |
| Minimum Input Voltage | 18V dc |
| Number of Pins | 7 |
| Output Voltage 1 | 15V dc |
| Output Current 1 | 670mA |
| Isolation Voltage | 1.6kV |
| Output Current 2 | -0.67A |
| Input Ratio | 4:1 |
| Output Voltage 2 | -15V dc |
| Input Ratio4 | 1 |
Key Features
- Output voltage range includes dual ±15V DC outputs.
- Maximum input voltage capacity up to 75V DC ensuring device protection.
- PCB mount type ideal for integration in electronic circuits.
- Compact DIP package with dimensions 50.8mm length x 40.6mm width x 10.2mm depth.
- Operating temperature from -40°C to 85°C suitable for various industrial environments.
- High reliability with MTBF of 1,976,000 hours.
- Isolation voltage up to 1.6kV enhances safety and noise reduction.
- Ripple and noise specification at 100mV supports stable power output.
Product Description
TDK-Lambda PXE20-48WD15 is a premium dual output DC/DC converter designed for reliable power supply in critical electronic applications. The converter delivers dual ±15V DC outputs at 670mA with a maximum power output of 20W, making it suitable for powering low to medium power electronic systems.
Its metal case construction provides six-sided shielding which effectively reduces electromagnetic interference, ensuring stable operation in industrial, laboratory, and manufacturing environments. This PCB mount DIP style converter features a compact footprint of 50.8mm by 40.6mm with a depth of 10.2mm, facilitating easy incorporation into electronic circuit boards.
The input voltage range covers 18V DC minimum to 75V DC maximum, supported by a 4:1 input ratio, which adds operational flexibility for use with different power supplies. The unit is capable of operating within an extended temperature range from -40°C to 85°C, allowing its use in harsh environmental conditions.
With an isolation voltage of 1.6kV and low ripple noise of 100mV, the PXE20-48WD15 ensures clean and safe power delivery. Its rated MTBF of approximately 1.976 million hours attests to its high reliability and durability for continuous industrial and commercial use.
This converter is ideal in industrial automation, communications equipment, laboratory instrumentation, and other professional electronics applications requiring stable and isolated voltage conversion.
Output voltage range includes dual ±15V DC outputs. Maximum input voltage capacity up to 75V DC ensuring device protection. PCB mount type ideal for integration in electronic circuits. Compact DIP package with dimensions 50.8mm length x 40.6mm width x 10.2mm depth.
Operating temperature from -40°C to 85°C suitable for various industrial environments. High reliability with MTBF of 1,976,000 hours. Input voltage ratio of 4:1 supports wide input voltage range. Isolation voltage up to 1.6kV enhances safety and noise reduction.
Ripple and noise specification at 100mV supports stable power output. Efficiency rating of 0.84% reduces energy losses. Explore more DC/DC Converters and related power supply solutions on EnvMart to find suitable components for your electronic design projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides dual ±15V DC outputs, with an output current of 670mA for each output.
The maximum input voltage capacity is 75V DC, allowing for protection of the device under varying input conditions.
The efficiency rating of this unit is 0.84%, which helps to minimize energy losses during operation.
This converter has a compact footprint with dimensions of 50.8mm in length, 40.6mm in width, and 10.2mm in depth.
It operates effectively within a temperature range of -40°C to 85°C, making it suitable for various industrial environments.
The isolation voltage of up to 1.6kV enhances safety and reduces noise, ensuring stable power delivery.
This unit is designed for PCB mounting, facilitating integration into electronic circuits.
The ripple and noise specification is 100mV, which supports stable power output.
The maximum output power of this model is 20W, suitable for low to medium power electronic systems.
The mean time between failures (MTBF) for this converter is approximately 1,976,000 hours, indicating high reliability.
The input voltage range for this model is from 18V DC to 75V DC, supported by a 4:1 input ratio.
This converter is suitable for applications in industrial automation, communications equipment, and laboratory instrumentation that require stable and isolated voltage conversion.
