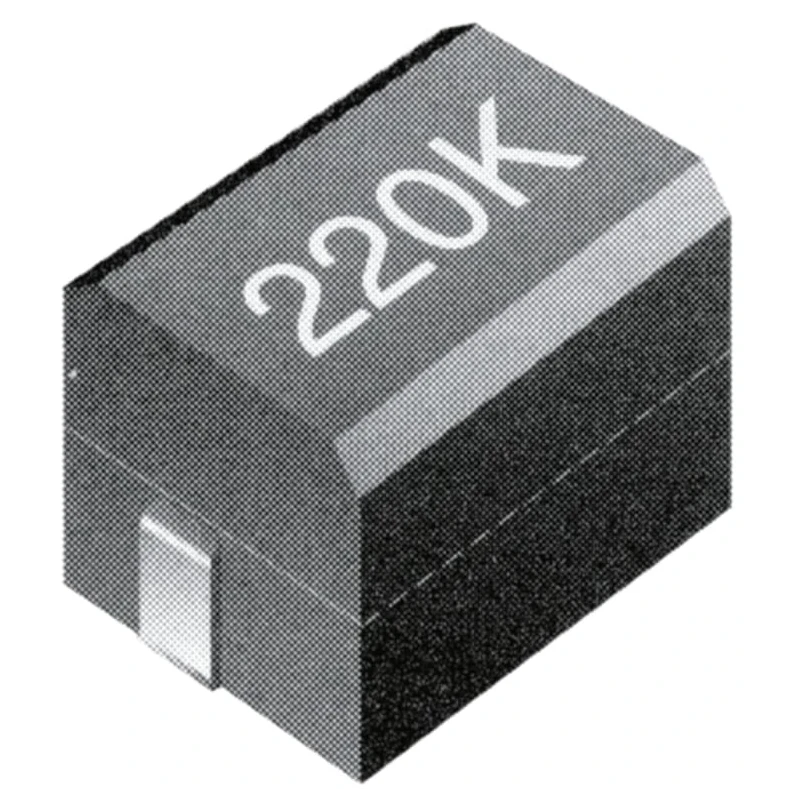

TE Connectivity 1812 Shielded Wirewound Surface Mount Inductor with Ferrite Core 220 nH ±20% 665 mA IDC Q:40 3613CR22M
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TE Connectivity |
| Height | 3.2mm |
| Length | 4.5mm |
| Model | 3613CR22M |
| Depth | 3.2mm |
| Packaging | Tape |
| Series | 3613C |
| Maximum Operating Temperature | 100°C |
| Minimum Operating Temperature | -30°C |
| Core Material | Ferrite |
| Inductance | 220nH |
| Standards/Approvals | RoHS |
| Package/Case | 1812 |
| Maximum DC Current | 665mA |
| Pin Count | 2 |
| Maximum DC Resistance | 250mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 200MHz |
| Minimum Quality Factor | 40 |
| Inductor Construction | Wirewound |
Key Features
- Compact 1812 package with dimensions 4.5 mm length and 3.2 mm height and depth.
- Constructed with a ferrite core for reliable inductance and shielding.
- Maximum DC resistance is 250 mΩ ensuring minimal power loss.
- Temperature range from -30°C to 100°C supports application in varying environments.
- Suitable for automated SMT assembly with tape packaging.
- Maximum self-resonant frequency of 200 MHz for high-frequency operations.
- Two-pin termination style designed for solder connections.
- Compliance with RoHS environmental standards.
Product Description
TE Connectivity model 3613CR22M is a shielded wirewound surface mount inductor designed for electronic circuit applications requiring stable inductance and low resistance in a compact form factor. This 1812 package inductor features a ferrite core that enhances magnetic properties and shielding to minimize interference.
The device operates with an inductance of 220 nH ±20% and supports a maximum DC current of 665 mA, making it suitable for power supplies, signal filtering, and RF circuits. Its low maximum DC resistance of 250 mΩ ensures efficient current flow with minimal losses.
Dimensions are optimized for surface mount technology with a length of 4.5 mm and height and depth of 3.2 mm, allowing for integration on densely populated printed circuit boards. The operational temperature range from -30°C to +100°C provides reliability in various industrial and commercial environments.
With a minimum quality factor of 40 and a maximum self-resonant frequency of 200 MHz, it supports high-frequency applications effectively. Packaging is provided on tape for compatible automated mounting processes, improving assembly efficiency. Termination style is solder, standard for surface mount devices.
The 3613CR22M is manufactured under RoHS compliance, ensuring it meets environmental regulations. Originating from Taiwan, Province Of China, this inductor is engineered for durability and consistent performance in electronic applications.
Compact 1812 SMT package with optimized dimensions. Ferrite core construction for high reliability and shielding. 220 nH inductance with ±20% tolerance. Maximum DC current rating of 665 mA with low DC resistance. Operates across a wide temperature range from -30°C to 100°C.
High quality factor supporting frequencies up to 200 MHz. RoHS compliant and environmentally friendly.
This inductor is ideal for use in industrial, telecommunications, automotive electronics (non-automotive standard), and consumer electronic devices where compact and reliable inductors are required for power management, signal conditioning, and noise reduction.
Explore the full range of Surface Mount Inductors offered by TE Connectivity and other premium brands in the Electronics & Electricals category at EnvMart for your electronic design and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this inductor is 220 nH with a tolerance of ±20%.
This unit has a maximum DC current rating of 665 mA.
The dimensions of this inductor are 4.5 mm in length and 3.2 mm in both height and depth.
The maximum DC resistance is 250 mΩ, ensuring minimal power loss during operation.
It operates within a temperature range of -30°C to +100°C.
The maximum self-resonant frequency of this inductor is 200 MHz, suitable for high-frequency applications.
This inductor is constructed with a ferrite core, which enhances its magnetic properties and shielding.
It features a two-pin termination style designed for solder connections, standard for surface mount devices.
The inductor is packaged on tape, which facilitates automated SMT assembly processes.
It is RoHS compliant, ensuring it meets environmental regulations.
This inductor is suitable for use in power supplies, signal filtering, RF circuits, and various electronic applications.
The 3613CR22M is manufactured in Taiwan, Province Of China.
