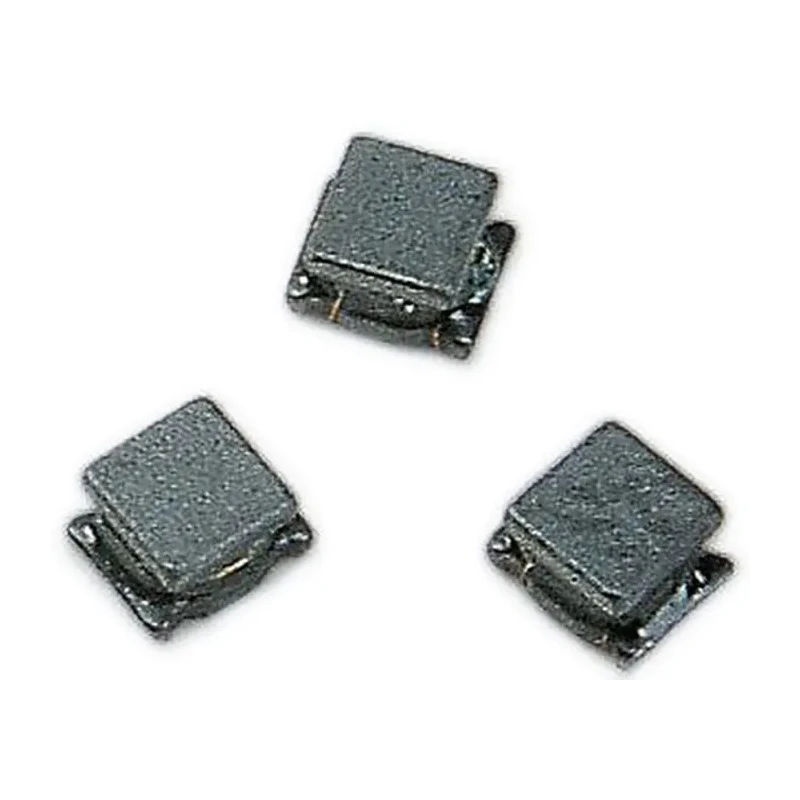

Murata 3225 Shielded Wirewound Surface Mount Inductor, Ferrite Core, 47 μH ±5%, 100 mA DC, Q:40 LQH32MN470J23L
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 2mm |
| Length | 3.2mm |
| Model | LQH32MN470J23L |
| Depth | 2.5mm |
| Series | LQH |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 47μH |
| Standards/Approvals | RoHS |
| Package/Case | 3225 |
| Maximum DC Current | 100mA |
| Maximum DC Resistance | 4.3Ω |
| Inductance Tolerance | ±5 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 11MHz |
| Minimum Quality Factor | 40 |
| Inductor Construction | Wirewound |
Key Features
- This shielded wirewound inductor features a ferrite core for enhanced performance.
- It has a compact 3225 package size with dimensions 3.2mm x 2.0mm x 2.5mm.
- The inductor supports a quality factor (Q) of 40, ensuring high efficiency.
- Designed for surface mount technology with low DC resistance of 4.3 ohms.
- Operates reliably in temperatures from -40°C to 85°C.
- RoHS compliant and molded construction provides durability and environmental safety.
- Typical applications include video, communications, audio equipment, and mobile phones.
Product Description
Murata LQH32MN470J23L is a 3225 shielded wirewound surface mount inductor with a ferrite core, providing 47 μH inductance with ±5% tolerance and a maximum DC current of 100 mA. It features a high-quality construction with low DC resistance of 4.3 ohms and is RoHS compliant, ensuring environmentally safe manufacturing standards.
This inductor is designed for use in electronic circuits requiring stable inductance and compact size. Its shielded design minimizes electromagnetic interference, making it ideal for use in sensitive equipment such as video, communications systems, audio devices, and mobile telephones.
The compact package size of 3.2mm length, 2.0mm height, and 2.5mm depth allows for space-saving layouts in high-density PCB assembly. The molded wirewound construction with a ferrite core enhances magnetic performance and electrical efficiency, and the product maintains reliable operation within temperature ranges from -40°C to 85°C.
With a quality factor (Q) of 40 and maximum self-resonant frequency at 11 MHz, this inductor provides efficient signal filtering and energy storage in various power and signal applications. Surface mount termination style supports automated assembly on modern electronics manufacturing lines.
This shielded wirewound inductor uses a ferrite core for high reliability and performance. Compact 3225 package dimensions enable space-efficient PCB designs. RoHS compliance ensures safe usage in environmentally conscious products.
Wide operating temperature range from -40°C to 85°C ensures stable performance in various environments. Low DC resistance and high quality factor improve efficiency in power and signal circuits. Ideal for applications including video, communications, audio equipment, and mobile phones.
Moulded construction provides durability and consistent electrical characteristics.
This product represents a reliable and compact solution for Surface Mount Inductor requirements in industrial, consumer electronics, and communications manufacturing sectors. Browse our diverse range of inductors and components at EnvMart for all your electronics needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this inductor is 47 μH with a tolerance of ±5%.
This model can handle a maximum DC current of 100 mA.
The dimensions of the 3225 package are 3.2 mm in length, 2.0 mm in height, and 2.5 mm in depth.
The quality factor (Q) of this inductor is 40.
This unit operates reliably within a temperature range of -40°C to 85°C.
The core material used in this inductor is ferrite.
The maximum self-resonant frequency of this inductor is 11 MHz.
The DC resistance of this inductor is 4.3 ohms.
Yes, this product is RoHS compliant, ensuring it meets environmental safety standards.
This inductor uses a surface mount termination style.
This inductor is suitable for applications in video, communications, audio equipment, and mobile phones.
The construction type of this inductor is wirewound.
