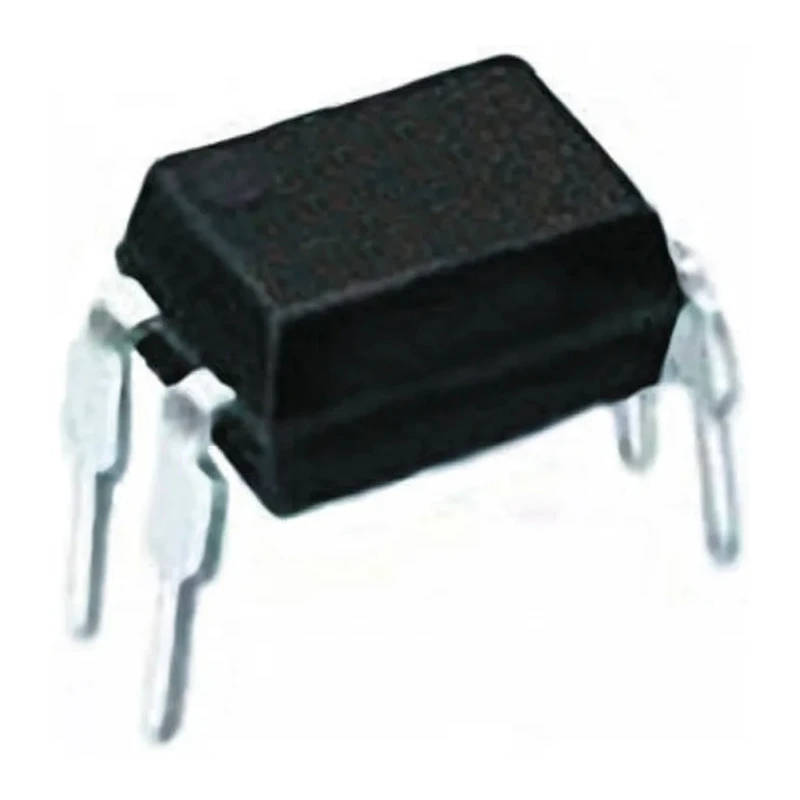

onsemi DC Input Photodarlington Optocoupler Through Hole 4-Pin MDIP FOD852300
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Model | FOD852300 |
| Packaging | Tube |
| Mount Type | Through Hole |
| Output type | Photodarlington |
| Series | FOD |
| Maximum Operating Temperature | 100°C |
| Package Type | MDIP |
| Minimum Operating Temperature | -30°C |
| Maximum input current | 50mA |
| Number Of Channels | 1 |
| Standards/Approvals | UL, DIN, EN |
| Maximum Forward Voltage | 1.4V |
| Number of Pins | 4 |
| Input Current Type | DC |
| Typical Rise Time | 300μs |
| Maximum Current Transfer Ratio | 15000% |
| Typical Fall Time | 100μs |
| Minimum Current Transfer Ratio | 1000% |
Key Features
- Features 1 channel and 4 pins suitable for straightforward circuit integration.
- Offers a maximum forward voltage of 1.4V and a maximum input current of 50mA.
- Designed with a high isolation voltage of 5000Vrms for electrical safety.
- Typical rise and fall times are 300μs and 100μs respectively, optimizing signal response.
- Operates reliably within a temperature range of -30°C to 100°C.
- Includes UL, DIN, EN standards compliance for quality assurance.
- Packaged in tubes facilitating easy handling and assembly.
- Logic output is not supported, using photodarlington output type instead.
Product Description
onsemi FOD852300 is a DC input optocoupler featuring a photodarlington output designed for signal isolation and efficient electrical interfacing in electronic circuits. Packaged in a Through Hole 4-Pin MDIP format, it is ideal for applications requiring robust optoelectronic coupling.
This optocoupler supports one channel with a maximum forward voltage rating of 1.4V and an input current capability up to 50mA. It achieves an isolation voltage of 5000Vrms ensuring high safety and noise immunity in sensitive electronic environments.
The device exhibits excellent dynamic performance with typical rise and fall times of 300μs and 100μs respectively. It is operable within a wide temperature range from -30°C to 100°C, making it suitable for diverse industrial and commercial environments. Compliance with UL, DIN, and EN standards demonstrates its reliability and quality assurance in industrial applications.
Packaged in tubes for protection and ease of installation, the FOD852300 optocoupler does not support logic output but employs a photodarlington transistor output for effective signal amplification. The maximum current transfer ratio of 15000% and minimum of 1000% offer a consistent response in switching applications.
This component finds use in industrial automation, instrumentation, telecommunications, and power management systems where signal isolation is critical. Its robust specifications ensure reliable operation in demanding electronic assemblies and systems.
Features 1 channel and 4 pins suitable for straightforward circuit integration. Offers a maximum forward voltage of 1.4V and a maximum input current of 50mA. Designed with a high isolation voltage of 5000Vrms for electrical safety.
Typical rise and fall times are 300μs and 100μs respectively, optimizing signal response. Operates reliably within a temperature range of -30°C to 100°C. Includes UL, DIN, EN standards compliance for quality assurance. Packaged in tubes facilitating easy handling and assembly.
Logic output is not supported, using photodarlington output type instead. Maximum current transfer ratio is 15000%, with a minimum ratio of 1000% for consistent performance. Explore more Optocouplers and electronic components at EnvMart to find the best solutions for your design and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward voltage of this model is 1.4V.
The maximum input current for the FOD852300 is 50mA.
This optocoupler is designed with a high isolation voltage of 5000Vrms.
The typical rise time is 300μs and the typical fall time is 100μs, optimizing signal response.
It operates reliably within a temperature range of -30°C to 100°C.
This model uses a photodarlington output type instead of logic output.
The FOD852300 features 1 channel.
It is packaged in tubes, facilitating easy handling and assembly.
This optocoupler complies with UL, DIN, and EN standards for quality assurance.
The maximum current transfer ratio is 15000%, with a minimum of 1000%.
This optocoupler features a through-hole mount type.
The country of origin for this model is India.
