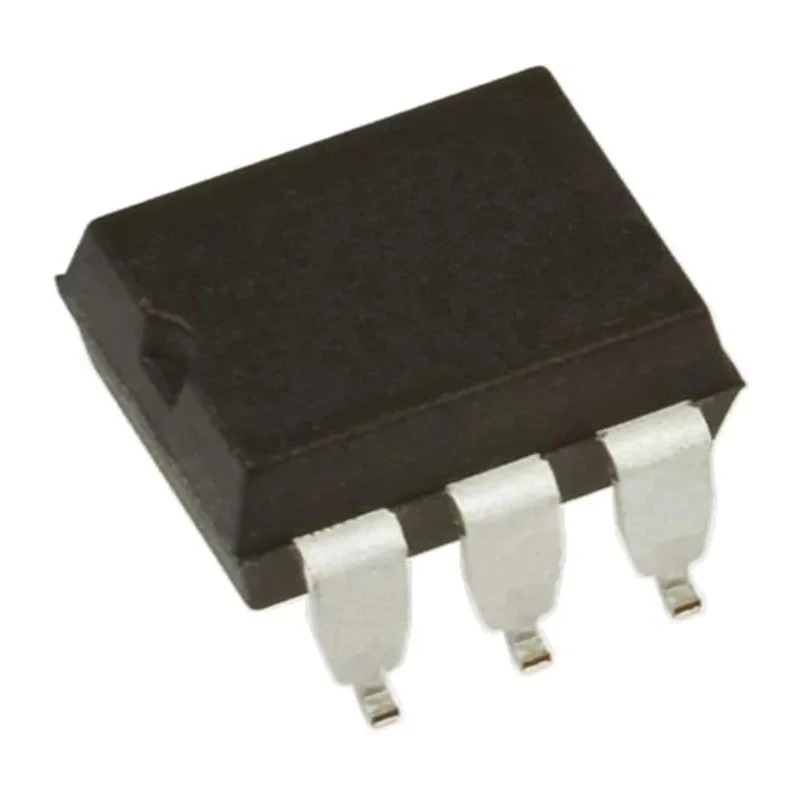

onsemi DC Input Optocoupler, Photodarlington Output, Surface Mount, 6-Pin MDIP H11G1SR2M

onsemi H11G1SR2M DC Input Optocoupler is a high-isolation optocoupler designed for electronic applications requiring reliable signal transmission across isolated circuits. Featuring a photodarlington output, this component ensures high current transfer efficiency with a maximum current transfer ratio of 1000%.

The device utilizes a surface mount package (6-pin MDIP) optimized for automated manufacturing and ease of integration into printed circuit boards. It supports a maximum forward voltage of 1.5V and can handle input currents up to 60mA DC, making it suitable for various control and switching applications.

Operating temperature ranges from -40°C up to 100°C ensure dependable performance in harsh industrial or commercial environments. The optocoupler provides an isolation voltage rating of 7500V ac, enhancing safety and protecting sensitive electronics from voltage spikes and noise.

Typical switching characteristics include a rise time of 5 microseconds and a fall time of 100 microseconds, enabling fast response in digital signal isolation. Compliance with international standards such as UL, EN, and DIN confirms quality and reliability for industrial and electronic system use.

This product is delivered in tape and reel packaging, suitable for high-volume production lines and automated insertion equipment, improving manufacturing efficiency. It is a member of the H11G series optocouplers but does not meet automotive standards, focusing on general industrial and electronic component markets.

Designed with a maximum forward voltage of 1.5V for efficient operation. Supports a maximum input current of 60mA with DC input current type. Offers isolation voltage up to 7500V ac for enhanced protection. Operates reliably across a temperature range from -40°C to 100°C.

Typical rise time of 5μs and fall time of 100μs ensure fast switching. Complies with UL, EN, and DIN standards for safety and quality assurance. Packaged in tape & reel format for automated assembly processes. Part of the H11G series without automotive standard compliance.

This optocoupler is ideal for industrial electronics, power controls, instrumentation, and signal isolation applications. Its reliable isolation and robust design provide critical protection in manufacturing, automation, measurement instruments, and other electronic systems.
