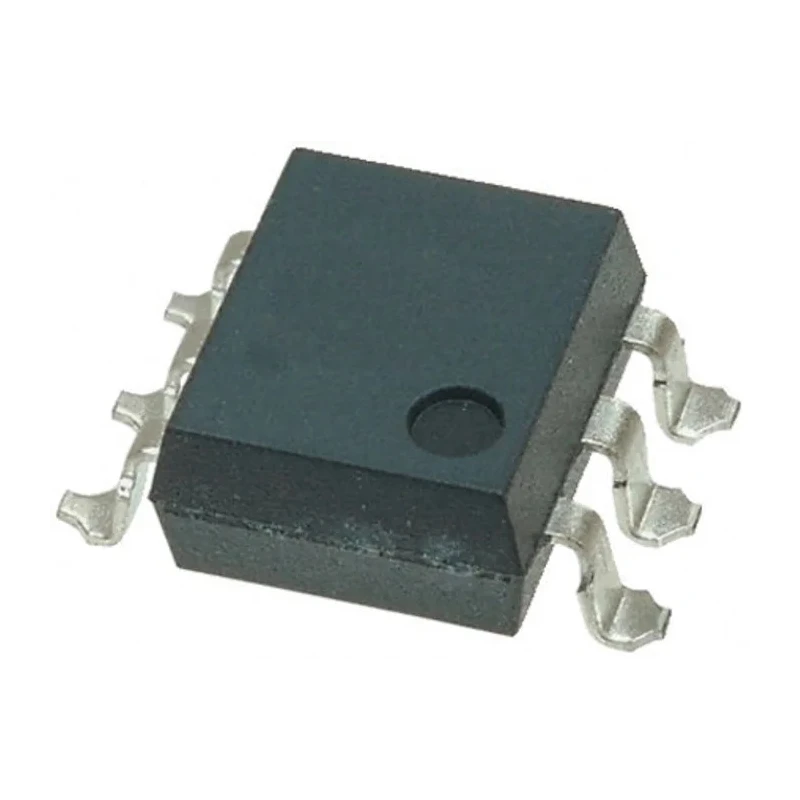

onsemi AC Input Surface Mount Optocoupler, Triac Output, 6-Pin DIP MOC3041SM

The onsemi MOC3041SM is an AC input optocoupler designed for surface mounting applications. It features a 6-pin DIP package making it suitable for through-hole mounting on printed circuit boards. This optocoupler employs a triac output which enables it to control AC loads effectively while providing high electrical isolation between the input and output circuits.

With a maximum input current of 60mA and a maximum forward voltage of 1.5V, it ensures efficient signal transfer across the isolation barrier. The device provides a high isolation voltage of 7500V AC, enhancing operator and equipment safety in industrial settings. It performs reliably within a broad temperature range from -40°C to 85°C, suitable for harsh environments.

This optocoupler complies with international standards such as DIN EN/IEC 60747-5-5, UL 1577, and RoHS, confirming its safety and environmental compliance. The single channel configuration is ideal for switching applications requiring precise control.

Applications span various industrial and electronic fields including signal isolation, industrial controls, automation systems, HVAC, manufacturing machinery, and power supply circuits. Its robust design ensures high performance and reliability in demanding environments.

The product is supplied in tube packaging, allowing for easier handling during PCB assembly and manufacturing processes. As part of the MOC304XM series, it integrates well into a range of industrial optocoupler applications requiring triac outputs.

Designed for AC input current operation with a maximum input current of 60mA. Features 6-pin DIP package for easy through-hole PCB mounting. Maximum forward voltage of 1.5 volts ensures efficient signal transmission. Isolation voltage rating of 7500V AC provides high electrical isolation between input and output.

Operates reliably between temperatures of -40°C and 85°C. Complies with DIN EN/IEC 60747-5-5, UL 1577, and RoHS standards for quality and safety. Triac output logic enables precise control of AC loads in various applications.

Single channel design suitable for switching and isolation tasks in electronic circuits. Supplied in tube packaging facilitating easy handling and assembly. Part of the MOC304XM series optimized for industrial and commercial electronic applications.
