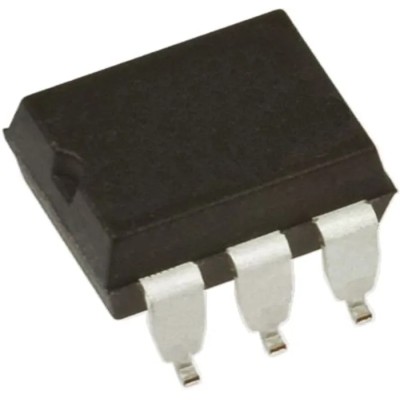

onsemi DC Input Optocoupler Surface Mount 6-Pin PDIP 1 Channel 350mA 4N32SR2M
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Model | 4N32SR2M |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | 4N32 |
| Maximum Operating Temperature | 100°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 350mA |
| Number Of Channels | 1 |
| Standards/Approvals | UL, DIN, EN |
| Maximum Forward Voltage | 1.5V |
| Number of Pins | 6 |
| Input Current Type | DC |
| Typical Rise Time | 5μs |
| Maximum Current Transfer Ratio | 500% |
| Typical Fall Time | 100μs |
Key Features
- Features a Darlington transistor output for high current gain.
- Supports a single channel for optocoupling applications.
- Maximum forward voltage of 1.5 V for efficient operation.
- Capable of handling maximum input current of 350 mA.
- Provides electrical isolation up to 2500 Vrms.
- Typical rise time of 5 microseconds and fall time of 100 microseconds.
- Operating temperature range from -40°C to 100°C ensures reliability in harsh environments.
- Complies with UL, DIN, and EN standards for safety and quality.
Product Description
The onsemi 4N32SR2M DC Input Optocoupler is a reliable surface mount optocoupler device housed in a 6-pin PDIP package. Designed with a Darlington transistor output, it allows for high current transfer ratios up to 500%, making it suitable for signal isolation and interfacing in various electronic applications.
This optocoupler features a single channel input operating on DC current type, with a maximum forward voltage rating of 1.5 V and a maximum input current of 350 mA. Its isolation voltage of 2500 Vrms ensures safe and effective isolation between input and output sides, which is critical in industrial, electrical, and manufacturing environments.
The device operates reliably over a broad temperature range from -40°C to 100°C, making it apt for demanding conditions found in automation, instrumentation, and control systems. Typical switching characteristics include a rise time of 5 microseconds and a fall time of 100 microseconds, providing timely response in control circuits.
These optocouplers are packaged on tape and reel, facilitating easy placement in high-volume production using surface mount technology assembly lines. The product complies with recognized standards such as UL, DIN, and EN, attesting to its quality and safety standards.
Darlington transistor output with high current gain for efficient signal transfer. Single channel configuration ideally suited for isolation applications. Maximum input current of 350 mA supports robust signaling. High isolation voltage of 2500 Vrms ensures electrical safety.
Wide operating temperature range of -40°C to 100°C. Fast switching times improve circuit response and performance. Compliance with UL, DIN, and EN standards for assured quality. Surface mount 6-pin PDIP package for easy PCB assembly.
Packaged on tape and reel for automated manufacturing processes.
This onsemi optocoupler is widely employed in electronic components, power and connectors, displays and optoelectronics, offering solutions in industrial automation, electrical isolation, and signal interfacing.
Explore more electronic components and Optocouplers in EnvMart’s comprehensive catalogue to find the right parts for your application.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input current for this model is 350 mA.
It provides an electrical isolation of up to 2500 Vrms.
The operating temperature range is from -40°C to 100°C.
The typical rise time is 5 microseconds, and the fall time is 100 microseconds.
This optocoupler supports a single channel configuration.
It is packaged on tape and reel, facilitating easy placement in automated manufacturing processes.
The maximum forward voltage is rated at 1.5 V.
It complies with UL, DIN, and EN standards for safety and quality.
This model operates on DC current type.
The maximum current transfer ratio is up to 500%.
It is a surface mount optocoupler housed in a 6-pin PDIP package.
The country of origin for this model is India.
