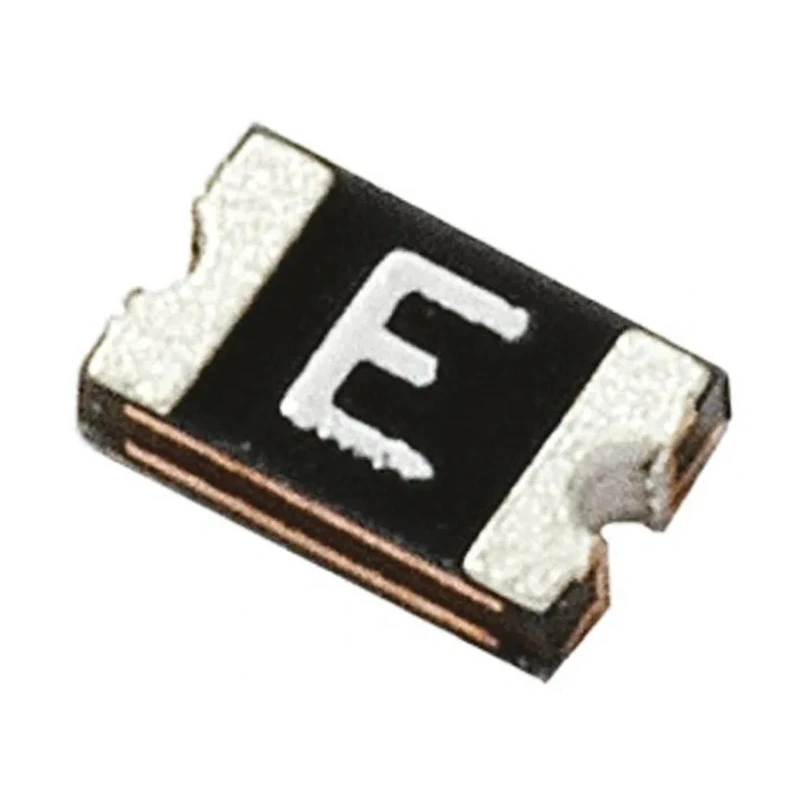

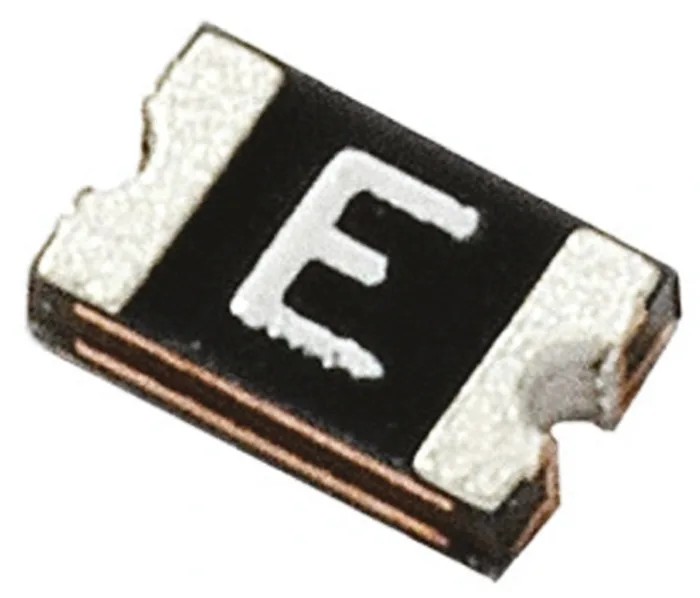

Littelfuse Resettable Fuse, 0.1 A, 15V DC, 0805 Package, Surface Mount 0805L010YR
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 15V dc |
| Brand | Littelfuse |
| Height | 1mm |
| Length | 2.2mm |
| Model | 0805L010YR |
| Width | 1.5mm |
| Current Rating | 100A |
| Series | 0805L |
| Maximum Operating Temperature | 85°C |
| Package Type | Reel |
| Minimum Operating Temperature | -40°C |
| Package Size | 0805 |
| Trip Current | 0.3A |
| Power Dissipation | 0.5W |
| Terminal Material | Tin Plated Copper |
| Standards/Approvals | RoHS |
| Time to Trip | 1.5s |
| Hold Current | 0.1A |
| Minimum Resistance | 1Ω |
| Maximum Resistance | 6Ω |
Key Features
- The fuse uses polyfuse PTC technology enabling self-resetting protection for circuits.
- Features a small 0805 package size, measuring 2.2 mm length, 1.5 mm width, and 1 mm height.
- Rated trip current is 0.3 ampere with a fast trip time of 1.5 seconds.
- Power dissipation is 0.5 watts with tin-plated copper terminals for reliable conductivity.
- Operating temperature range is -40°C to 85°C suitable for harsh environments.
- The fuse has low resistance values between 1 to 6 ohms during normal operation and fault conditions.
- Complies with RoHS standards ensuring environmental safety.
- Commonly used in security systems, power supplies, automotive, medical, and telecommunication equipment.
Product Description
The Littelfuse 0805L010YR is a surface mount resettable fuse designed to provide automatic overcurrent protection in electronic circuits operating at 15V DC and 0.1A hold current. This 0805 series fuse offers a compact footprint measuring 2.2 mm in length, 1.5 mm in width, and 1 mm in height, making it ideal for applications with limited space.
It features polyfuse PTC technology which allows the device to rapidly switch from a low resistance state to a high resistance state under fault conditions and automatically reset to normal operation once the fault clears, providing maintenance-free protection.
Key technical parameters include a trip current of 0.3A with a time to trip of approximately 1.5 seconds, power dissipation of 0.5W, and tin-plated copper terminals ensuring good electrical connection.
The fuse withstands minimum operating temperatures down to -40°C and maximum operating temperatures up to 85°C, suitable for challenging industrial and commercial environments. This product complies with RoHS directives, supporting environmentally responsible manufacturing practices.
Applications include security systems, power supplies and transformers, automotive and medical devices, instrumentation and control systems, and various audio-visual and telecommunication equipment.
The fuse provides resettable overcurrent protection without requiring fuse holder hardware. The small package size supports high-density PCB designs in industrial automation and electronics. Maintenance-free design allows thousands of protection cycles, improving long-term system reliability.
Low resistance ensures minimal power loss under normal operating conditions. Complies with RoHS for safe disposal and reduced hazardous substances. Easy integration in security and communication systems requiring compact resettable fuses.
Suitable for automotive and medical equipment where quick fault response safeguards sensitive electronics. Explore more circuit protection solutions and Resettable Fuse options in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The hold current rating of this resettable fuse is 0.1A.
The trip current for this model is 0.3A.
The maximum operating temperature of this fuse is 85°C.
The minimum operating temperature is -40°C.
This fuse measures 2.2 mm in length, 1.5 mm in width, and 1 mm in height.
The power dissipation rating is 0.5 watts.
It uses polyfuse PTC technology, allowing for self-resetting protection in circuits.
The time to trip under fault conditions is approximately 1.5 seconds.
The resistance values range between 1 to 6 ohms during normal operation and fault conditions.
This fuse complies with RoHS standards, ensuring environmental safety.
It is commonly used in security systems, power supplies, automotive, medical, and telecommunication equipment.
The terminals are made from tin-plated copper, ensuring reliable conductivity.
