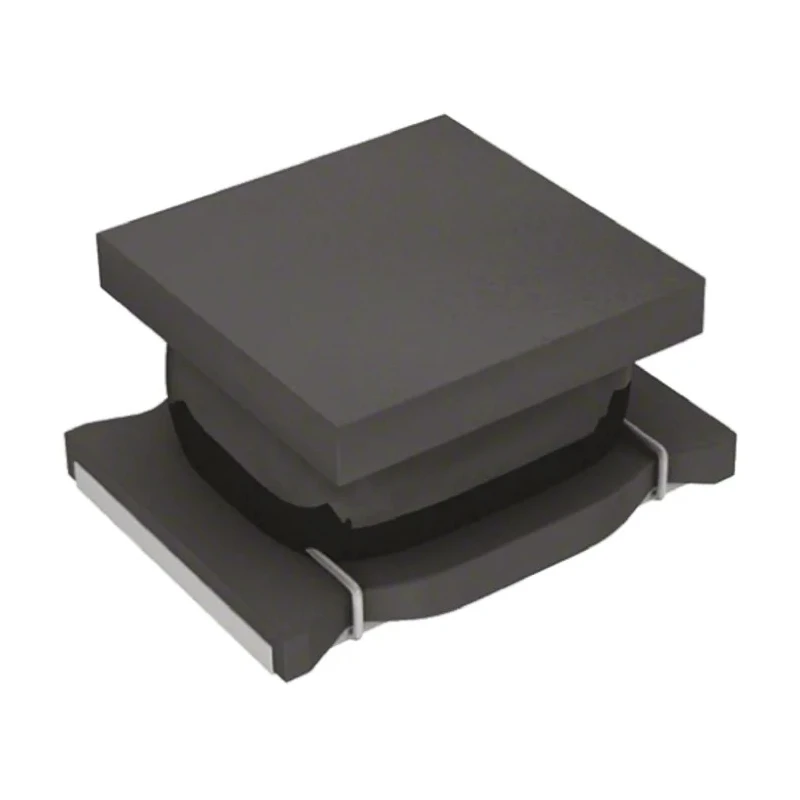

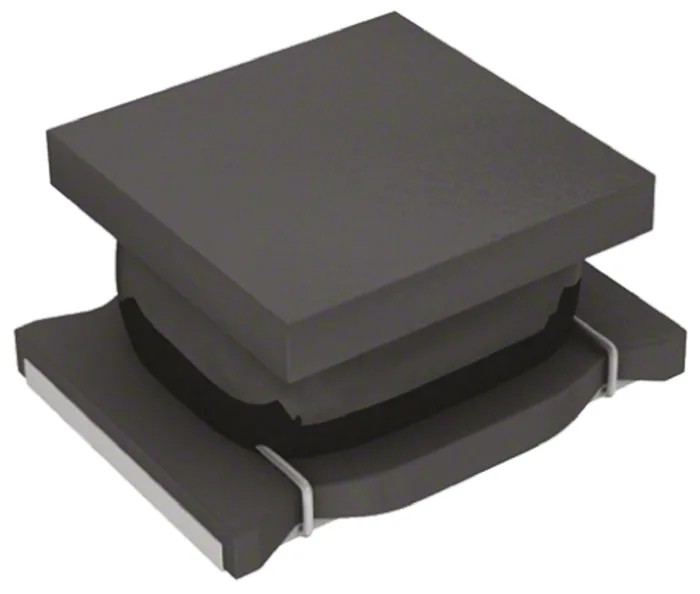

Murata 1210 Shielded Surface Mount Inductor with Ferrite Core, 47 μH ±20% Inductance, 310 mA Max DC Current LQH32PN470MN0L

Murata LQH32PN470MN0L is a 1210 shielded surface mount inductor designed with a ferrite core to provide reliable choke functionality in DC power supply circuits. It features a compact form factor with dimensions of 3.2 mm length, 2.5 mm depth, and 1.55 mm height, optimized for surface mount technology and automated assembly processes.

This wirewound inductor series delivers a nominal inductance value of 47 μH with a tolerance of ±20%. It can handle a maximum DC current of 310 mA while maintaining a low DC resistance of 1.78 ohms, reducing power loss and heat generation in electronic circuits.

The magnetic shielding construction ensures minimal electromagnetic interference (EMI) with nearby components, making it suitable for use in sensitive electronic equipment. Its maximum self-resonant frequency of 11 MHz supports applications in high-frequency environments.

Operating reliably in temperatures ranging from -40°C to 85°C, this inductor meets RoHS standards and is ideal for automotive, industrial, and consumer electronics applications demanding high current capacity and stability.

The inductor is supplied in embossed tape packaging, compatible with automated placement machines, facilitating efficient manufacturing workflows. Its solder termination style with two pins simplifies PCB mounting.

Compact 1210 package size optimizes board space usage. High current handling with minimal resistance ensures performance stability. Shielded design reduces magnetic interference in complex circuits. Wide operating temperature range for diverse environments.

Manufactured in Japan ensuring stringent quality control and reliability. Explore the comprehensive selection of Surface Mount Inductors to find components tailored to your electronic design needs at EnvMart.
