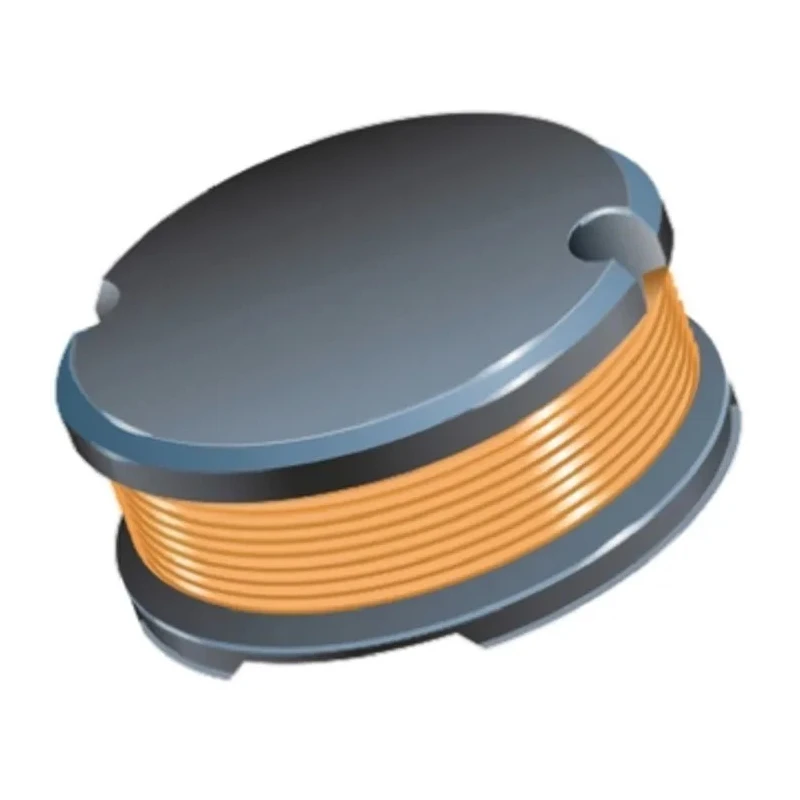

Bourns Wirewound Surface Mount Inductor 680 μH ±10% 250 mA Idc, Ferrite DR Core, 5.8mm x 4.8mm x 5.8mm, RoHS SDR0604
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 5.8mm |
| Brand | Bourns |
| Height | 4.8mm |
| Length | 5.8mm |
| Model | SDR0604 |
| Depth | 5.8mm |
| Packaging | Reel |
| Series | SDR0604 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite DR |
| Inductance | 680μH |
| Standards/Approvals | RoHS |
| Package/Case | 0604 |
| Maximum DC Current | 250mA |
| Maximum DC Resistance | 4.65Ω |
| Inductance Tolerance | ±10 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 2MHz |
| Minimum Quality Factor | 26 |
| Inductor Construction | Wirewound |
Key Features
- Compact 0604 package with 5.8 mm length, 5.8 mm diameter, and 4.8 mm height dimensions.
- Wirewound construction delivers reliable inductance and quality factor of minimum 26.
- Maximum DC resistance of 4.65 ohms ensures efficient performance.
- Operating temperature range from -40°C to +125°C suited for various industrial applications.
- RoHS compliant for environmentally responsible manufacturing standards.
- Used in input/output stages of DC/DC converters and power supplies.
- Unshielded design with ferrite DR core material for efficient magnetic performance.
Product Description
Bourns SDR0604 wirewound surface mount inductor features a ferrite DR core and a compact 0604 surface mount package measuring 5.8 mm in length and diameter with a 4.8 mm profile height. It provides a nominal inductance of 680 μH with a tolerance of ±10%, and can handle a maximum DC current of 250 mA. The inductor exhibits a maximum DC resistance of 4.65 ohms and a minimum quality factor of 26 at its operating frequency, with a maximum self-resonant frequency of 2 MHz.
Designed for use in industrial and commercial electronics, this inductor is RoHS compliant and operates within a temperature range of -40°C to +125°C. Its wirewound construction and ferrite DR core ensure stable performance in power supply filtering, DC/DC converter circuits, and other surface mount applications requiring reliable inductance and current handling.
The unshielded design contributes to minimal size while maintaining inductive characteristics critical for signal conditioning and magnetic energy storage applications. Key features include a standard 0604 package, reel packaging for efficient assembly, and compatibility with automated PCB manufacturing processes.
Compact 0604 surface mount package with 5.8 mm length and diameter. Wirewound inductor construction with ferrite DR core material. Inductance of 680 μH ±10% tolerance for precise circuit design. Maximum DC current rating of 250 mA for power handling.
Operating temperature from -40°C to 125°C suitable for harsh environments. RoHS compliant ensuring adherence to environmental regulations. Applications include DC/DC converter input/output stages, power supplies, and signal filtering.
This product is ideal for engineers and designers requiring a reliable and precise surface mount inductor with compact dimensions and robust performance characteristics. Browse more Surface Mount Inductors and electronic components on EnvMart for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductor has a nominal inductance of 680 μH with a tolerance of ±10%.
This model features a compact 0604 package with dimensions of 5.8 mm in length, 5.8 mm in diameter, and a height of 4.8 mm.
The maximum DC current rating for this unit is 250 mA.
It has a maximum DC resistance of 4.65 ohms, ensuring efficient performance.
The operating temperature range is from -40°C to +125°C, making it suitable for various industrial applications.
The maximum self-resonant frequency is 2 MHz.
This inductor features a ferrite DR core material, which contributes to its efficient magnetic performance.
Yes, this inductor is RoHS compliant, adhering to environmentally responsible manufacturing standards.
It features a wirewound construction, which delivers reliable inductance and a quality factor of minimum 26.
The inductor is packaged in a reel format, which is suitable for automated PCB manufacturing processes.
This model is used in input/output stages of DC/DC converters and power supplies, as well as for signal filtering.
The minimum quality factor of this inductor is 26 at its operating frequency.
