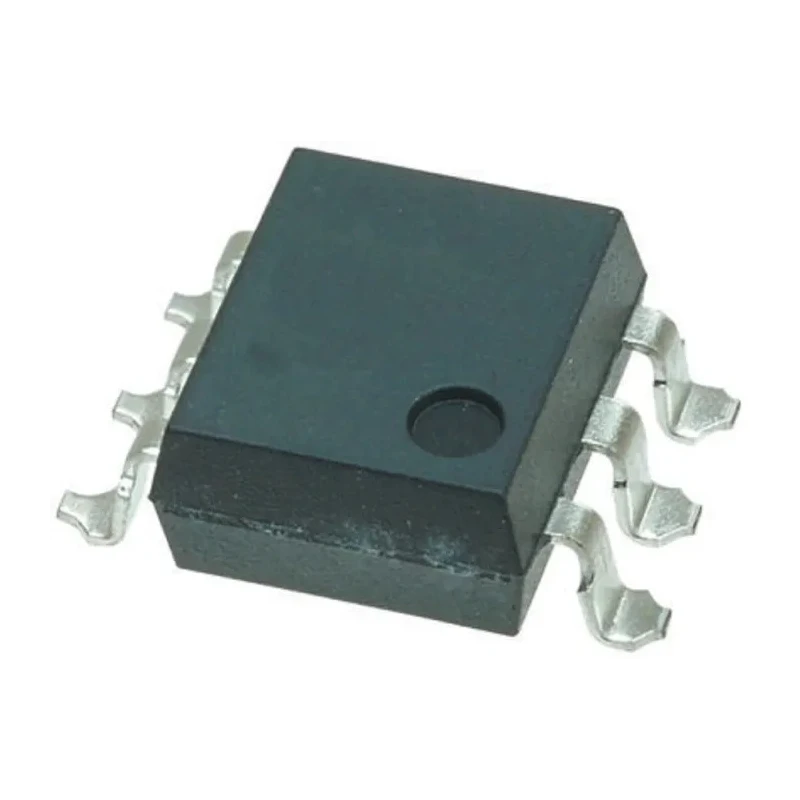

onsemi DC Input Optocoupler Surface Mount 6-Pin MDIP MOC3052SM
Specifications
| Country of Origin | China |
|---|---|
| Brand | onsemi |
| Model | MOC3052SM |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | MOC30 |
| Maximum Operating Temperature | 85°C |
| Package Type | MDIP |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 60mA |
| Number Of Channels | 1 |
| Standards/Approvals | IEC60747-5-2 Approved, VDE 0884, UL |
| Maximum Forward Voltage | 1.5V |
| Number of Pins | 6 |
| Input Current Type | DC |
| Typical Fall Time | 1μs |
| Isolation Voltage | 7500V ac |
| onsemi MOC3083SR2M DC Input Optocoupler, Surface, 6-Pin DIPBrand | onsemi |
Key Features
- The device supports a maximum forward voltage of 1.5V.
- It features a typical fall time of 1μs, enabling fast switching.
- Rated for input currents up to 60mA DC.
- Operates reliably in temperatures from -40°C to 85°C.
- Complies with IEC60747-5-2, VDE 0884, and UL safety standards.
- Package type is MDIP with tape and reel packaging for efficient assembly.
- Logic output compatibility ensures easy interfacing with digital circuits.
Product Description
onsemi MOC3052SM is a high-performance DC input optocoupler in a compact 6-pin MDIP surface mount package, designed primarily for electrical isolation in electronic circuits. It delivers reliable signal transmission through optical coupling while ensuring protection between high-voltage and low-voltage sides.
The device operates with a maximum forward voltage of 1.5V and supports input currents up to 60mA DC, which is suitable for a variety of industrial, commercial, and instrumentation applications requiring precise signal isolation.
Featuring a typical fall time of 1μs, MOC3052SM enables fast switching speeds that are ideal for control and switching applications including power supplies, motor controls, and telecommunications equipment. Its isolation voltage rating of 7500V AC provides robust safety and noise immunity, making it suitable for high-voltage interfaces.
Designed to operate in harsh environments, this optocoupler functions over a temperature range from -40°C to 85°C, ensuring durability and reliability in both industrial and commercial settings.
The device complies with internationally recognized safety standards including IEC60747-5-2, VDE 0884, and UL, reflecting its high quality and trusted performance. It comes packaged in MDIP form factor with tape and reel for automated assembly processes.
Typical applications for the MOC3052SM include industrial automation, electronic control equipment, consumer electronics, and other applications requiring galvanic isolation between input and output.
The device supports a maximum forward voltage of 1.5V. It features a typical fall time of 1μs, enabling fast switching. Rated for input currents up to 60mA DC. Operates reliably in temperatures from -40°C to 85°C. Complies with IEC60747-5-2, VDE 0884, and UL safety standards.
Package type is MDIP with tape and reel packaging for efficient assembly. Logic output compatibility ensures easy interfacing with digital circuits. Explore the full range of Optocouplers and related electronic components at EnvMart for your industrial, laboratory, and commercial project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MOC3052SM supports a maximum input current of 60mA DC.
It features a typical fall time of 1μs, enabling fast switching capabilities.
The device has an isolation voltage rating of 7500V AC, providing robust safety and noise immunity.
This model operates reliably in temperatures ranging from -40°C to 85°C.
It is packaged in an MDIP form factor with tape and reel for efficient assembly.
The device complies with IEC60747-5-2, VDE 0884, and UL safety standards.
The MOC3052SM supports a maximum forward voltage of 1.5V.
This model has 1 channel.
It is rated for DC input current.
The device features a surface mount type.
The MOC3052SM is manufactured in China.
This optocoupler belongs to the MOC30 series.
