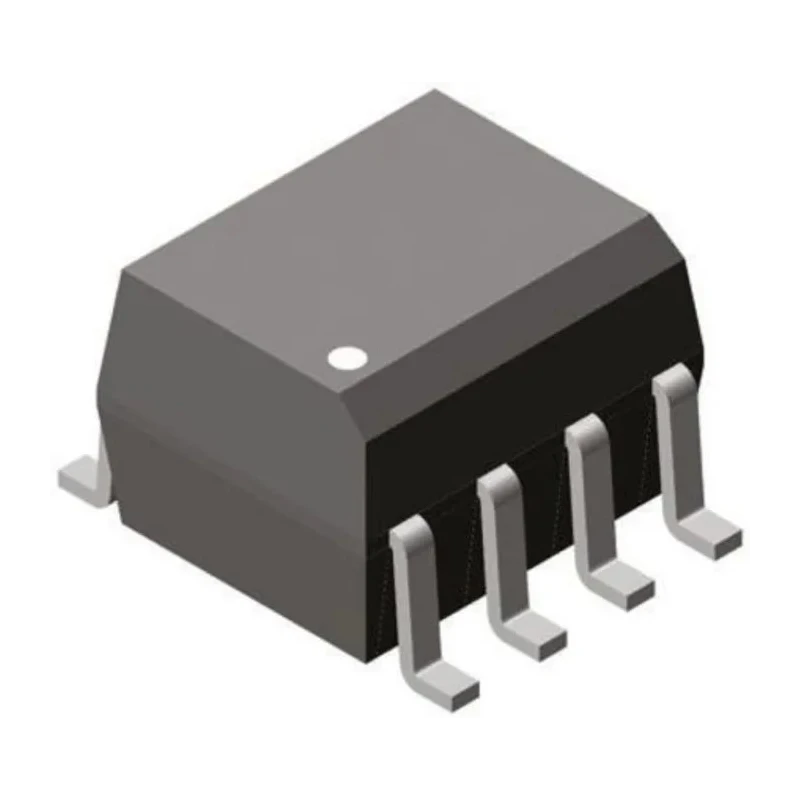

onsemi HCPL0501 DC Input Optocoupler, Surface Mount, 8-Pin SOIC Package HCPL0501
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Model | HCPL0501 |
| Packaging | Tube |
| Mount Type | Surface |
| Output type | Phototransistor |
| Series | HCPL |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 25mA |
| Number Of Channels | 1 |
| Standards/Approvals | UL |
| Maximum Forward Voltage | 1.8V |
| Number of Pins | 8 |
| Input Current Type | DC |
| Typical Rise Time | 0.3μs |
| Maximum Current Transfer Ratio | 50% |
| Typical Fall Time | 0.45μs |
| Minimum Current Transfer Ratio | 19% |
| Isolation Voltage | 2500V ac |
Key Features
- This optocoupler features a phototransistor output type for efficient signal isolation.
- It operates with a maximum forward voltage of 1.8 V and supports a maximum input current of 25 mA.
- The device offers electrical isolation with an isolation voltage of 2500 V AC.
- Typical rise and fall times are 0.3 μs and 0.45 μs respectively, ensuring fast switching.
- Designed to operate over a temperature range from -40°C to 85°C for industrial reliability.
- It is provided in a tube packaging suitable for automated assembly.
- The package type is SOIC with 8 pins, allowing easy surface mounting on PCBs.
- Logic output is supported, and the max current transfer ratio is 50%, with a minimum of 19%.
Product Description
onsemi HCPL0501 DC Input Optocoupler is engineered for high-performance signal isolation and switching applications. This device features a phototransistor output and comes in a compact surface mount 8-pin SOIC package, making it ideal for space-constrained electronics.
With a maximum forward voltage of 1.8 V and input current up to 25 mA, it ensures reliable operation with low power consumption. Its outstanding isolation voltage of 2500 V AC provides robust electrical separation between input and output circuits, critical in protecting sensitive electronics.
The typical rise time of 0.3 μs and fall time of 0.45 μs enables fast signal transitions suitable for industrial automation, control, and signal processing applications.
Operating from -40°C up to 85°C temperature range, the HCPL0501 is designed to perform in harsh environmental conditions, supporting industrial, manufacturing, instrumentation, and HVAC systems.
The 8-pin SOIC package facilitates easy surface mounting for automated production lines. Packaging in tubes is compatible with bulk handling and automated machinery insertion, improving production efficiency.
UL certification adds a layer of safety compliance and reliability assurance, making this optocoupler suitable for demanding electrical and electronic systems. It belongs to the HCPL series from onsemi known for quality and performance.
This optocoupler features a phototransistor output type for efficient signal isolation. It operates with a maximum forward voltage of 1.8 V and supports a maximum input current of 25 mA. The device offers electrical isolation with an isolation voltage of 2500 V AC.
Typical rise and fall times are 0.3 μs and 0.45 μs respectively, ensuring fast switching. Designed to operate over a temperature range from -40°C to 85°C for industrial reliability. It is provided in a tube packaging suitable for automated assembly.
The package type is SOIC with 8 pins, allowing easy surface mounting on PCBs. Logic output is supported, and the max current transfer ratio is 50%, with a minimum of 19%. UL standard approved ensuring compliance with safety requirements.
Explore more Optocouplers and related electronics components on EnvMart for your industrial and commercial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward voltage of this optocoupler is 1.8 V.
It has an isolation voltage of 2500 V AC, providing robust electrical separation between input and output circuits.
The HCPL0501 operates within a temperature range of -40°C to 85°C, making it suitable for industrial applications.
This model features a phototransistor output type, which is efficient for signal isolation.
The maximum input current supported by this optocoupler is 25 mA.
The typical rise time is 0.3 μs and the fall time is 0.45 μs, allowing for fast signal transitions.
This optocoupler comes in an 8-pin SOIC package, facilitating easy surface mounting.
The maximum current transfer ratio for this model is 50%, with a minimum of 19%.
It is provided in tube packaging, which is suitable for automated assembly processes.
This optocoupler is UL certified, ensuring compliance with safety requirements.
The HCPL0501 is designed for surface mounting on printed circuit boards (PCBs).
This optocoupler belongs to the HCPL series from onsemi, known for its performance in signal isolation applications.
