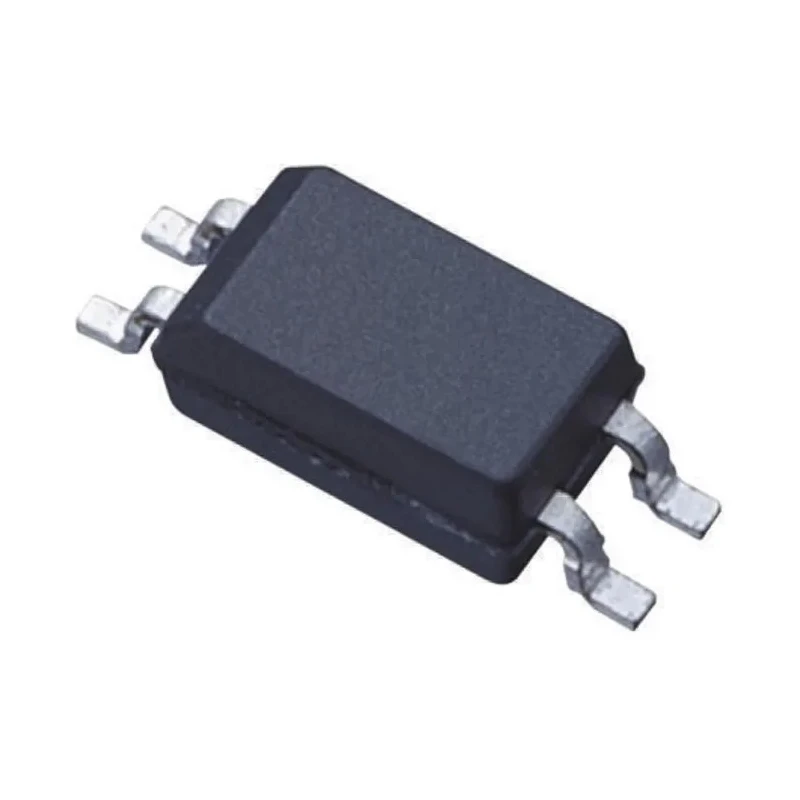

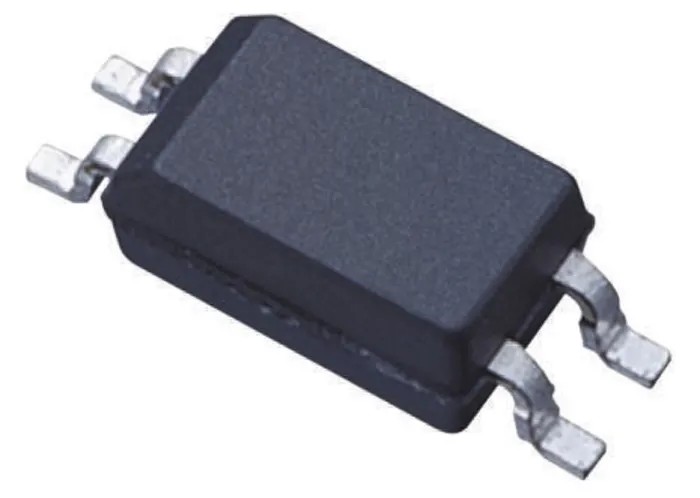

onsemi DC Input Optocoupler Surface Mount 4-Pin DIP Phototransistor Output FOD817CSD
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Model | FOD817CSD |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Output type | Phototransistor |
| Series | FOD |
| Maximum Operating Temperature | 110°C |
| Package Type | DIP |
| Minimum Operating Temperature | -55°C |
| Maximum input current | 50mA |
| Number Of Channels | 1 |
| Standards/Approvals | IEC, UL, EN |
| Maximum Forward Voltage | 1.4V |
| Number of Pins | 4 |
| Input Current Type | DC |
| Typical Rise Time | 4μs |
| Maximum Current Transfer Ratio | 400% |
| Typical Fall Time | 3μs |
| Minimum Current Transfer Ratio | 200% |
| Isolation Voltage | 5000V ac |
Key Features
- This optocoupler supports a maximum forward voltage of 1.4 volts.
- It features a maximum input current of 50mA suitable for various signal isolation needs.
- Designed for surface mounting with a 4-pin DIP package type.
- Typical rise and fall times are 4 microseconds and 3 microseconds respectively.
- Built to operate within temperatures ranging from -55°C to 110°C.
- Offers a current transfer ratio between 200 and 400 percent ensuring efficient signal transmission.
- Packaged on tape and reel for automated assembly efficiency.
- Meets IEC, UL, and EN safety standards.
Product Description
onsemi FOD817CSD is a high-performance DC input optocoupler featuring a phototransistor output. Its surface mount 4-pin DIP design ensures easy integration into electronic circuits requiring electrical isolation between input and output signals.
This optocoupler operates with a maximum forward voltage of 1.4V and can handle input currents up to 50mA. It offers excellent isolation voltage rated at 5000 volts AC, providing safety in high-voltage environments.
The device exhibits fast switching characteristics with typical rise and fall times of 4 microseconds and 3 microseconds respectively, suitable for high-speed signal applications.
With an operating temperature range from -55°C up to 110°C, it is reliable for use in demanding industrial and commercial environments. The current transfer ratio ranging from 200% to 400% guarantees efficient signal transfer between input and output sides.
Packaged on tape and reel, this optocoupler is optimized for automated manufacturing processes, enhancing production efficiency. This optocoupler supports a maximum forward voltage of 1.4 volts. It features a maximum input current of 50mA suitable for various signal isolation needs.
Designed for surface mounting with a 4-pin DIP package type. Typical rise and fall times are 4 microseconds and 3 microseconds respectively. Built to operate within temperatures ranging from -55°C to 110°C. Offers a current transfer ratio between 200 and 400 percent ensuring efficient signal transmission.
Packaged on tape and reel for automated assembly efficiency. Meets IEC, UL, and EN safety standards. This product is widely used in industrial automation, electronic instrumentation, power management circuits, and communication systems for safe and reliable signal isolation.
Explore more Optocouplers and related electronic components in the EnvMart catalog for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward voltage of this optocoupler is 1.4 volts.
It supports a maximum input current of 50mA.
The isolation voltage is rated at 5000 volts AC, providing safety in high-voltage applications.
The typical rise time is 4 microseconds and the typical fall time is 3 microseconds.
This model operates within a temperature range of -55°C to 110°C.
It features a phototransistor output type.
It is packaged on tape and reel, which optimizes it for automated assembly processes.
It meets IEC, UL, and EN safety standards.
This optocoupler has 4 pins.
The current transfer ratio ranges from 200% to 400%.
It is designed for surface mounting with a 4-pin DIP package type.
This optocoupler is widely used in industrial automation, electronic instrumentation, power management circuits, and communication systems for signal isolation.
