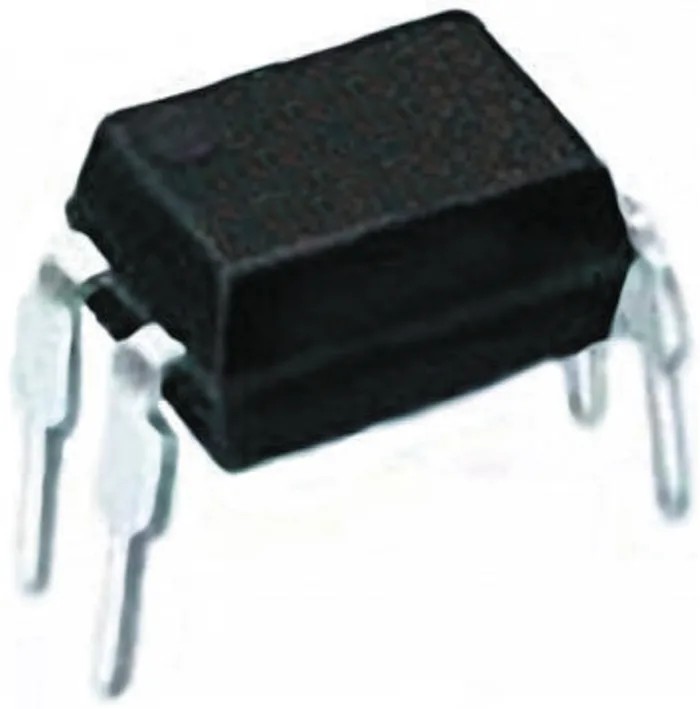

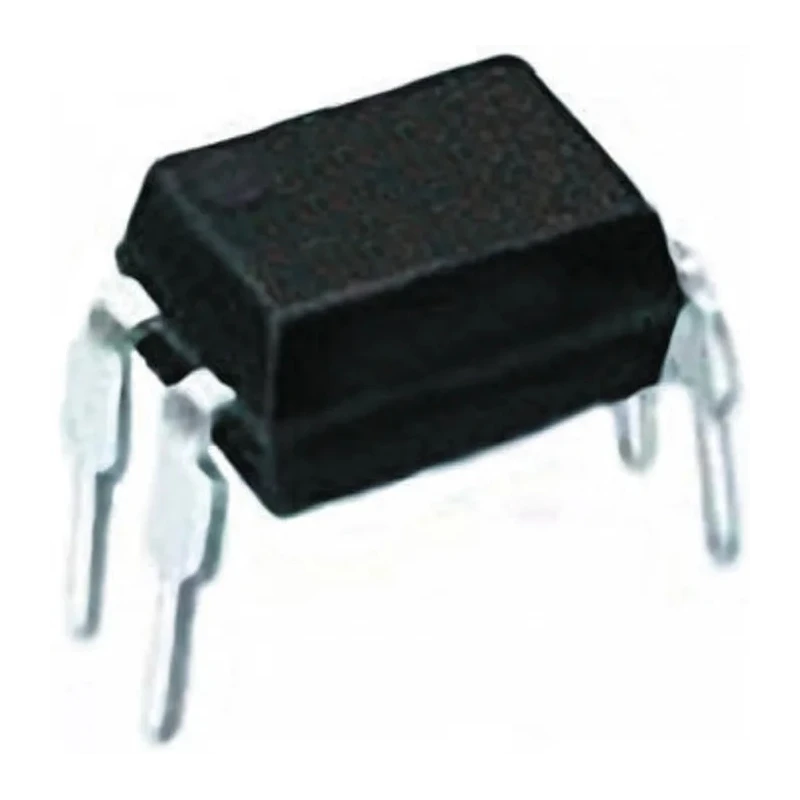

onsemi DC Input Optocoupler Through Hole Phototransistor Output 4-Pin DIP FOD817A
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Model | FOD817A |
| Packaging | Tube |
| Mount Type | Through Hole |
| Output type | Phototransistor |
| Series | FOD |
| Maximum Operating Temperature | 110°C |
| Package Type | DIP |
| Minimum Operating Temperature | -55°C |
| Maximum input current | 50mA |
| Number Of Channels | 1 |
| Standards/Approvals | UL and VDE, C-UL |
| Maximum Forward Voltage | 1.4V |
| Number of Pins | 4 |
| Input Current Type | DC |
| Typical Rise Time | 4μs |
| Maximum Current Transfer Ratio | 160% |
| Typical Fall Time | 3μs |
| Minimum Current Transfer Ratio | 80% |
| Isolation Voltage | 5000V ac |
Key Features
- The device features a maximum forward voltage of 1.4 volts.
- Typical rise and fall times are 4 microseconds and 3 microseconds respectively.
- Supports a maximum input current of 50 milliamps for efficient operation.
- It provides an isolation voltage of 5000 volts AC, ensuring high signal isolation.
- Operates reliably over a temperature range from -55°C to 110°C.
- The current transfer ratio ranges between 80% minimum and 160% maximum.
- Certified to UL, VDE, and C-UL standards assuring quality and safety.
- Supplied in tube packaging to facilitate automated insertion into electronic assemblies.
Product Description
onsemi FOD817A is a DC input optocoupler designed with a phototransistor output type, housed in a 4-pin DIP package for through hole mounting applications. It offers robust isolation capabilities with an isolation voltage rating of 5000 volts AC, making it suitable for a variety of industrial and electronic control systems.
This optocoupler supports a maximum forward voltage of 1.4 volts with a maximum input current of 50 milliamps, allowing it to interface efficiently with DC signals. The device provides fast switching performance with typical rise and fall times of 4 microseconds and 3 microseconds respectively, beneficial for high-speed signal transmission.
Operating temperature ranges from -55°C to 110°C, ensuring reliability under harsh environmental conditions in industrial, automation, and instrumentation applications. The current transfer ratio is specified between a minimum of 80% and a maximum of 160%, providing stable and predictable signal amplification within circuits.
The product complies with UL, VDE, and C-UL standards, emphasizing its quality and conformity to safety regulations. Packaging in tube format supports automated insertion manufacturing processes, enhancing production efficiency for electronic equipment manufacturers.
This optocoupler is an essential component for electrical isolation in power and control systems, industrial automation, instrumentation, and consumer electronics requiring signal integrity and device protection.
The device features a maximum forward voltage of 1.4 volts. Typical rise and fall times are 4 microseconds and 3 microseconds respectively. Supports a maximum input current of 50 milliamps for efficient operation. It provides an isolation voltage of 5000 volts AC, ensuring high signal isolation.
Operates reliably over a temperature range from -55°C to 110°C. The current transfer ratio ranges between 80% minimum and 160% maximum. Certified to UL, VDE, and C-UL standards assuring quality and safety. Supplied in tube packaging to facilitate automated insertion into electronic assemblies.
Browse more onsemi electronics components like this Optocoupler on EnvMart to enhance your industrial and electronic projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The FOD817A provides an isolation voltage of 5000 volts AC, ensuring high signal isolation.
It operates reliably over a temperature range from -55°C to 110°C.
This optocoupler supports a maximum input current of 50 milliamps for efficient operation.
The typical rise time is 4 microseconds and the typical fall time is 3 microseconds.
The current transfer ratio ranges between 80% minimum and 160% maximum.
It features a phototransistor output type.
The device is supplied in tube packaging to facilitate automated insertion into electronic assemblies.
This model has 4 pins in its DIP package.
It is certified to UL, VDE, and C-UL standards, ensuring quality and safety.
The maximum forward voltage for the FOD817A is 1.4 volts.
This optocoupler is designed for through hole mounting applications.
The FOD817A has 1 channel.
