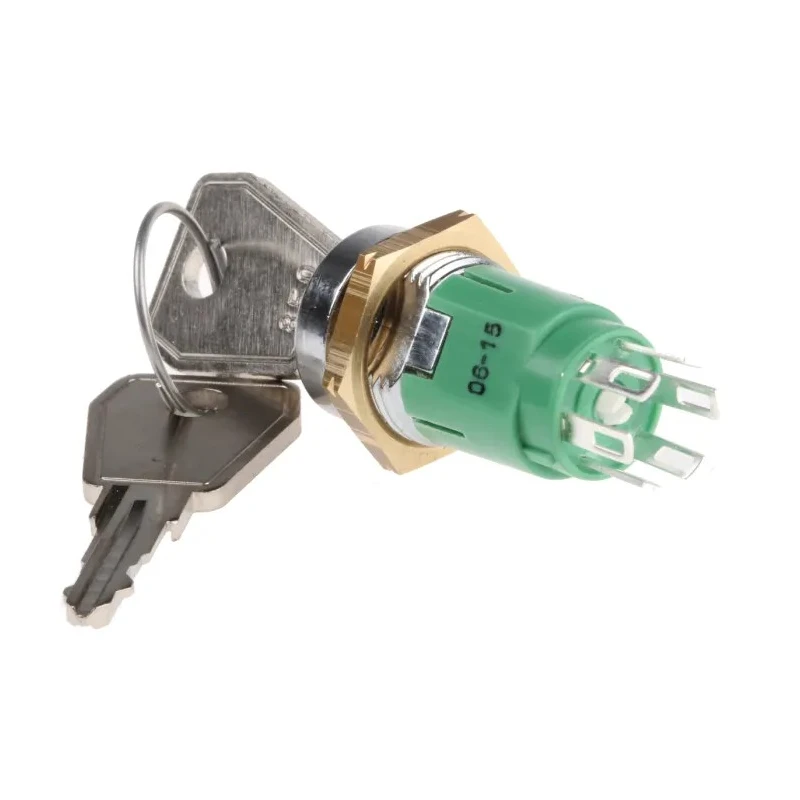

Lorlin 16mm Impulsion Key Switch DPDT 1A 2-Way Common-Key Parallel Bezel IRL-5-K-S-2-RS

Lorlin IRL-5-K-S-2-RS is a high-quality 16mm impulsion key switch designed for momentary operation in industrial electrical and automation systems. This key switch features a double-pole double-throw (DPDT) contact configuration rated for a 1 ampere switching current and accommodates a 24V DC contact voltage.

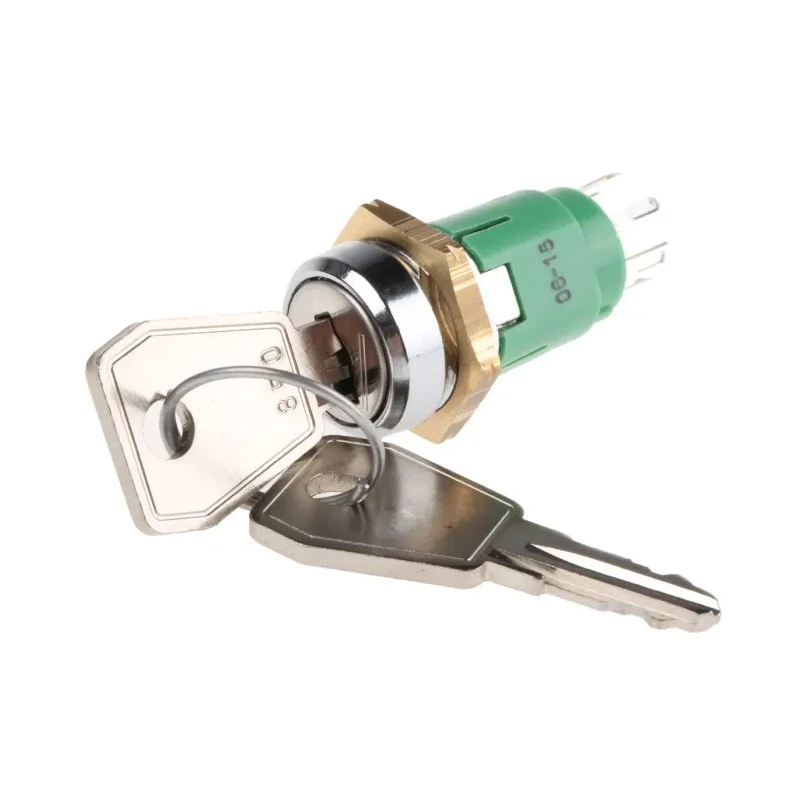

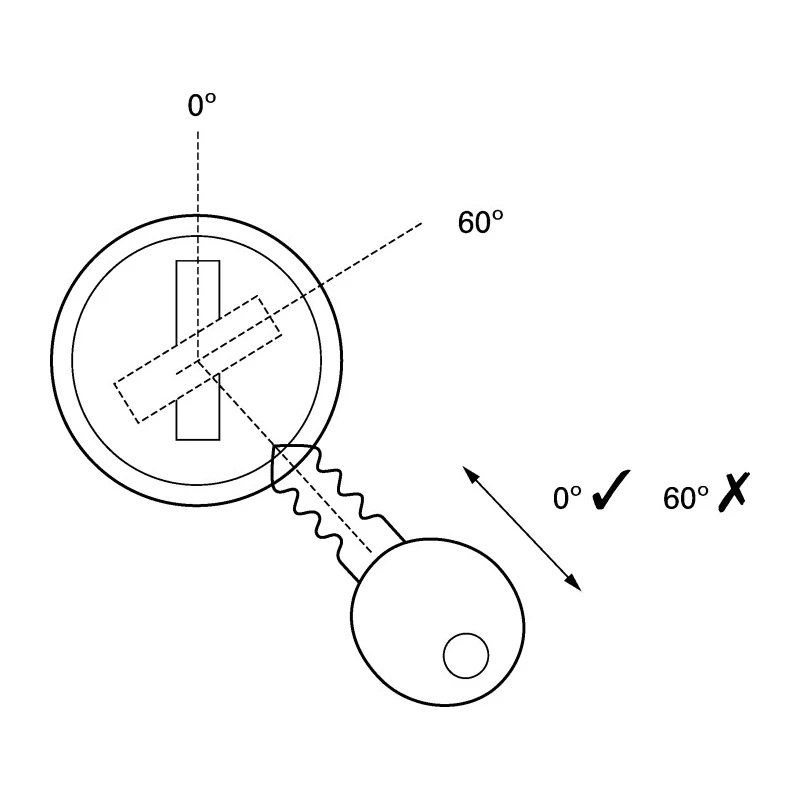

The switch is housed in a robust polyamide casing with a parallel bezel shape, providing mechanical strength and reliability. Its trapped key mechanism restricts key removal to the 12 o'clock position for safety and controlled access. The switch is supplied with two nickel-plated mild steel keys that are double entry, allowing insertion in either orientation.

This model offers a key index angle of 60° and a mechanical life rated for 10,000 cycles, ensuring operational longevity. The silver-plated brass contact material ensures excellent conductivity and corrosion resistance. The operating temperature range is from -20°C to 65°C, making it suitable for a variety of environments.

This switch series (IRL) originates from the United Kingdom and complies with RoHS standards, emphasizing its environmental and electrical safety compliance. Typical industrial use cases include building automation, electrical control panels, and secure electrical switching where momentary contact and key control are critical.

Double-pole double-throw (DPDT) momentary switch operation. 16mm panel cut out and zinc alloy housing options. Trapped key removal enhances operational safety. Nickel-plated mild steel keys supplied double entry. Silver plated brass contacts for reliable conductivity.

Rated for 1 ampere and 24V DC operation. Mechanical life of 10,000 cycles ensures durability. Explore more electrical switches and Key Switches for automation and industrial controls at EnvMart for enhanced reliability and quality assurance.
