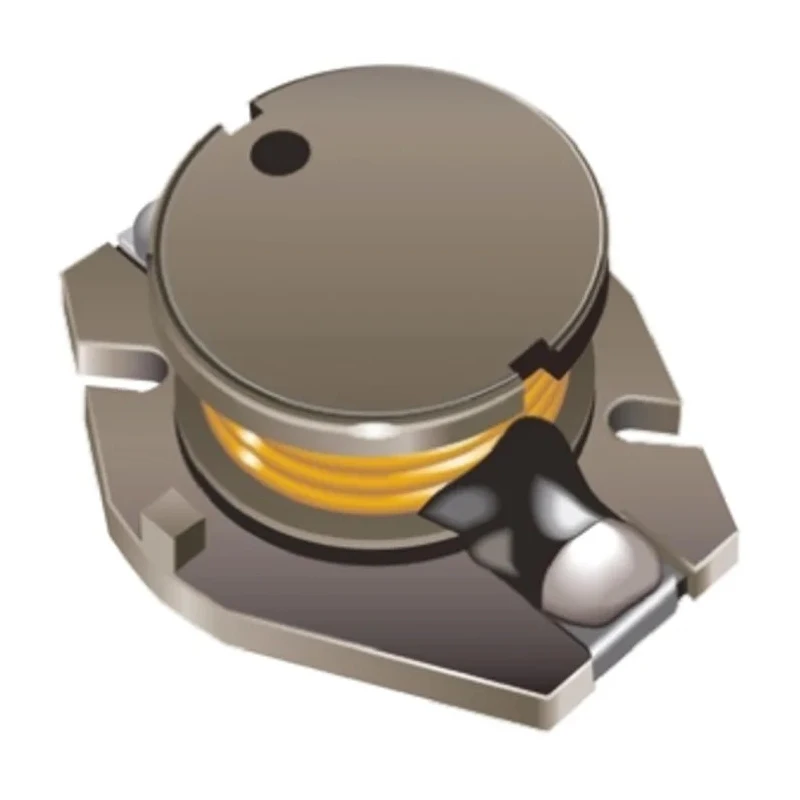

Bourns Surface Mount Inductor 15 μH ±20% 2.5 A Maximum DC Current Ferrite DR Core 1005 Package SDR1005

Bourns SDR1005 Surface Mount Inductor features a 15 μH inductance with ±20% tolerance and supports a maximum DC current of 2.5 A. This wirewound inductor uses a ferrite DR core to provide excellent magnetic properties and stability in small form factor applications.

The 1005 package dimension measures 12.7 mm length, 10 mm depth, and 5 mm height, making it ideal for compact electronic devices requiring surface mount technology. Its wirewound construction ensures robust inductive performance and a minimum quality factor of 42 at operating frequencies.

This inductor operates reliably across a wide temperature range from -40°C to 125°C and has a maximum DC resistance of 60 mΩ, reducing power losses in high current circuits. The maximum self-resonant frequency of 22 MHz supports its use in signal filtering and power supply applications.

Designed for mounting on printed circuit boards, the device uses a surface mount termination style allowing for efficient automated assembly. It is moulded and complies with JEDEC and RoHS standards, ensuring environmental and safety compliance.

Typical applications for the Bourns SDR1005 include use in DC/DC converters, power supplies, and electronic filtering circuits in industrial, commercial, and consumer electronics sectors.

Compact 1005 package fits space-constrained PCB layouts. Reliable operation in automotive and industrial environments due to wide temperature range. Wirewound design enhances electrical performance and durability. Compliant with global environmental standards.

Optimized for use in power management circuits and signal conditioning. Explore the full range of Surface Mount Inductors and electronic components at EnvMart for your industrial and manufacturing needs.
