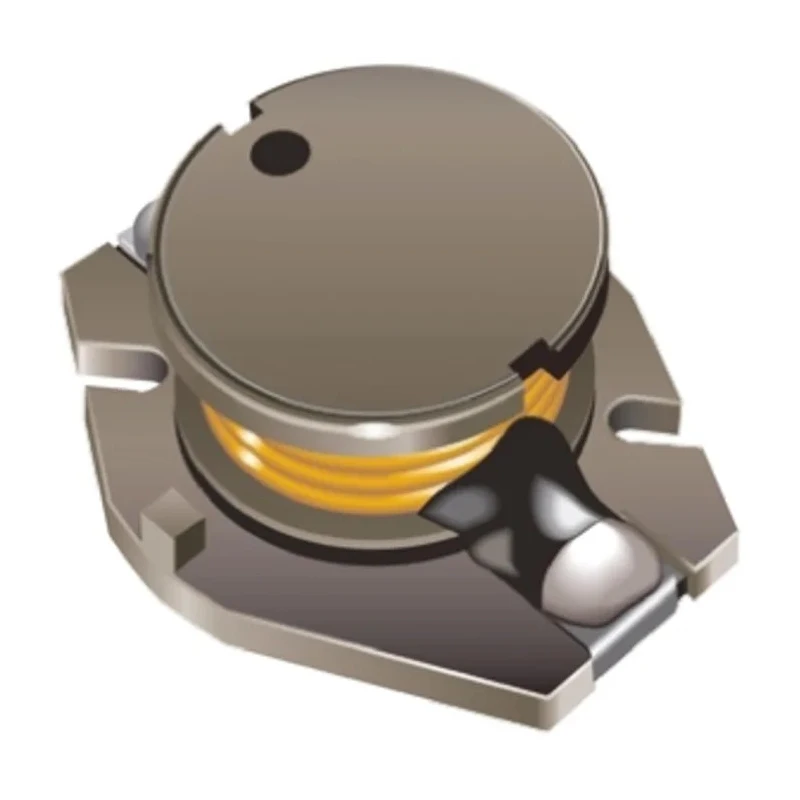

Bourns Wirewound Surface Mount Inductor 330μH 1A Ferrite DR Core 1806 Case SDR1806
Specifications
| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Height | 6.6mm |
| Length | 18.3mm |
| Model | SDR1806 |
| Depth | 14mm |
| Packaging | Reel |
| Series | SDR1806 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite DR |
| Inductance | 330μH |
| Standards/Approvals | RoHS, JEDEC |
| Package/Case | 1806 |
| Maximum DC Current | 1A |
| Maximum DC Resistance | 580mΩ |
| Inductance Tolerance | ±10 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 3.5MHz |
| Minimum Quality Factor | 18 |
| Inductor Construction | Wirewound |
Key Features
- This inductor features a wirewound construction with a ferrite DR core.
- It has a nominal inductance of 330 microhenries with a tolerance of ±10%.
- The inductor supports a maximum DC current of 1 ampere with a maximum DC resistance of 580 milliohms.
- The 1806 package dimensions measure 18.3mm length, 14mm depth, and 6.6mm height.
- Designed for surface mount termination style and compliant with RoHS and JEDEC standards.
- Operating temperature ranges from -40°C to 125°C, suitable for various industrial applications.
- The component has a minimum quality factor of 18 and a maximum self-resonant frequency of 3.5 MHz.
- It is moulded and designed for applications such as DC/DC converters and power supplies.
Product Description
Bourns SDR1806 Wirewound Surface Mount Inductor with a Ferrite DR Core offers a nominal inductance of 330μH and supports a maximum DC current of 1A, making it suitable for electronic applications requiring reliable inductive components.
This inductor features a wirewound construction, ensuring stable electrical performance and high reliability. The ferrite DR core material enhances inductance and reduces electromagnetic interference.
Its 1806 package case measures 18.3mm in length, 14mm depth, and 6.6mm height, optimized for surface mount technology with a surface mount termination style. It is RoHS and JEDEC compliant, assuring environmental safety and standardized quality.
Operating temperature ranges from -40°C to 125°C, enabling use in industrial, commercial, and automotive electronics under various environmental conditions. The inductor’s maximum DC resistance is 580mΩ, and it features a minimum quality factor of 18 and a maximum self-resonant frequency of 3.5 MHz for efficient signal filtering.
This component is commonly applied in the input and output stages of DC/DC converters, power supplies, and other power management circuits requiring stable inductance and current handling capabilities. The inductance tolerance is ±10% ensuring performance consistency in demanding electronic circuits.
This inductor features a wirewound construction with a ferrite DR core. It has a nominal inductance of 330 microhenries with a tolerance of ±10%. The inductor supports a maximum DC current of 1 ampere with a maximum DC resistance of 580 milliohms.
The 1806 package case has dimensions of 18.3mm length, 14mm depth, and 6.6mm height optimized for surface mount technology. Complies with RoHS and JEDEC standards ensuring quality and environmental compliance. Operates reliably across -40°C to 125°C temperature range for industrial use.
Minimum quality factor of 18 and maximum self-resonant frequency of 3.5 MHz provide efficient filtering performance. Ideal for use in DC/DC converters, power supplies, and similar electronic applications. Explore EnvMart's extensive catalog of Surface Mount Inductors for more high-quality components and related electronic parts.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This inductor has a nominal inductance of 330 microhenries (μH) with a tolerance of ±10%.
It supports a maximum DC current of 1 ampere (A).
The 1806 package dimensions measure 18.3mm in length, 14mm in depth, and 6.6mm in height.
The maximum DC resistance is 580 milliohms (mΩ).
It operates reliably within a temperature range of -40°C to 125°C.
The minimum quality factor is 18.
The maximum self-resonant frequency is 3.5 MHz.
It features a ferrite DR core material, which enhances inductance and reduces electromagnetic interference.
Yes, it is compliant with RoHS and JEDEC standards, ensuring environmental safety and standardized quality.
This model has a surface mount termination style, optimized for surface mount technology.
It is commonly used in DC/DC converters, power supplies, and other power management circuits requiring stable inductance.
It is packaged on a reel, suitable for automated assembly processes.
