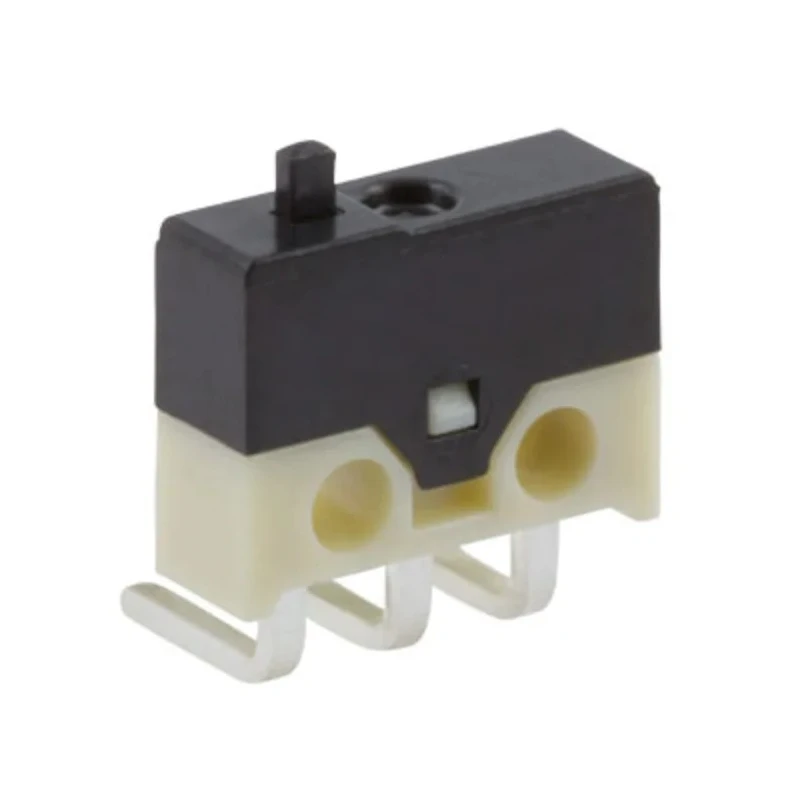

ZF Button Subminiature Micro Switch Left Angle PCB Terminal 500mA 30V dc SPDT IP40 DH2C-C5AA

ZF DH2C-C5AA is a button subminiature micro switch designed with a left angle PCB terminal, ideal for electrical and automation applications requiring compact, reliable switching components. It is engineered for low switching currents and voltages, offering a maximum contact current of 500mA and contact voltage rating of 30V dc, making it suitable for sensitive electronic circuits.

The device uses a button actuator for precise switching with an operating force of 0.88N and features a single-pole double-throw (SPDT) contact configuration. The housing is made of polyphenylene sulphide, providing robust insulation and durability, while the IP40 rating offers protection against solid foreign objects, suitable for indoor industrial environments.

Operating temperature ranges from -25°C to 70°C, covering typical ambient conditions for industrial and laboratory electronics. With a mechanical life of 50 cycles, it suits applications involving infrequent switching. The switch dimensions of 8.2mm x 2.7mm x 6.2mm (ultraminiature) support integration into space-constrained PCB designs.

The product complies with RoHS standards, ensuring it meets environmental and safety protocols. Its compact size and precise actuation make it well-suited for use cases in industrial automation systems, electronic manufacturing, and embedded systems requiring switch components that combine reliability with miniature form factors.

The micro switch features a button actuator for precise operation. Single-pole double-throw (SPDT) contact configuration allows versatile circuit connectivity. Polyphenylene sulphide housing ensures durability and insulation.

IP40 rating provides ingress protection suitable for indoor use. Operating force of 0.88N allows sensitive actuation. Mechanical life rated for 50 cycles suitable for low-cycle applications. Operating temperature range is -25°C to 70°C for wide usability.

Compact ultraminiature dimensions (8.2mm x 2.7mm x 6.2mm) enable PCB mounting in tight spaces. RoHS compliance ensures environmental safety and regulatory adherence. Explore more Micro Switches and components at EnvMart to support your industrial, laboratory, and automation projects with high-quality switching devices.
