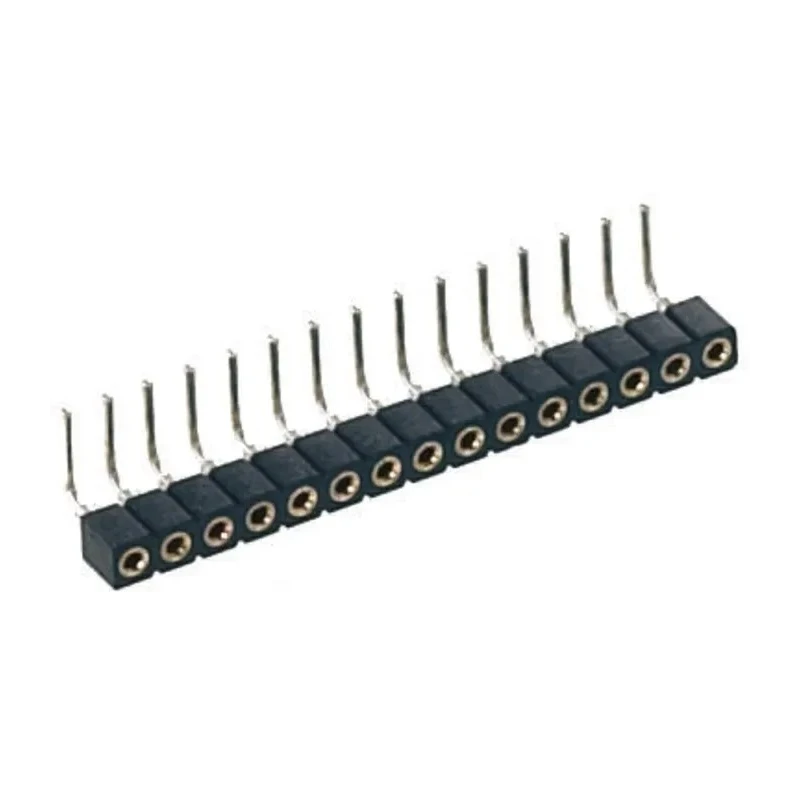

Preci-Dip 5 Way Right Angle Through Hole 2 mm Pitch SIL Socket 100 V AC, 150 V DC, Solder Termination 831-87-005-20-001101

Preci-Dip 831-87-005-20-001101 5 Way Right Angle Through Hole SIL Socket is engineered for dependable electrical connections in advanced electronic devices and assemblies. This socket features a 2 mm pitch, allowing precise positioning of components on printed circuit boards (PCBs).

Constructed using brass and beryllium copper alloy contacts, this socket ensures longevity and low contact resistance. The contacts are plated with gold and tin, optimizing conductivity and corrosion resistance. It supports a maximum current of 3 amperes and voltage ratings of 100V AC and 150V DC, making it suitable for low-voltage industrial, laboratory, and commercial electronics applications.

The housing material comprises fibreglass reinforced liquid crystal polymer, providing mechanical robustness and resistance to thermal stress. The solder-type termination facilitates secure mounting in through-hole PCB designs, ensuring strong mechanical and electrical connection reliability under operational stresses.

Designed for challenging environments, it performs reliably in temperature ranges from -55°C up to 125°C. The compact form factor with a 10 mm length, 2.8 mm width, and 2.2 mm depth, combined with right angle orientation, allows efficient use of PCB space while maintaining easy component installation and maintenance.

These sockets accommodate mating pins with diameters from 0.4 mm to 0.66 mm or square pins measuring 0.5 mm, providing versatility in component compatibility. Manufactured with brass and beryllium copper alloy contacts for durability.

Gold and tin plating ensures excellent conductivity and corrosion resistance. Rated at 3A current with 100V AC and 150V DC voltage limits. Housing of fibreglass reinforced liquid crystal polymer offers strength and heat resistance.

Solder termination for secure through-hole PCB mounting. Operating temperature from -55°C to 125°C for reliable performance in various environments. Compact dimensions allow space-efficient PCB layout. Right angle orientation facilitates versatile electronics designs.

Compatible with mating pins of 0.4 to 0.66 mm diameter or 0.5 mm square pins.

This Preci-Dip SIL socket is ideal for use in industrial control systems, laboratory instruments, telecommunications equipment, and consumer electronics manufacturing. It supports high-precision PCB assembly requirements and enhances mechanical and electrical integrity of assembled circuits.
