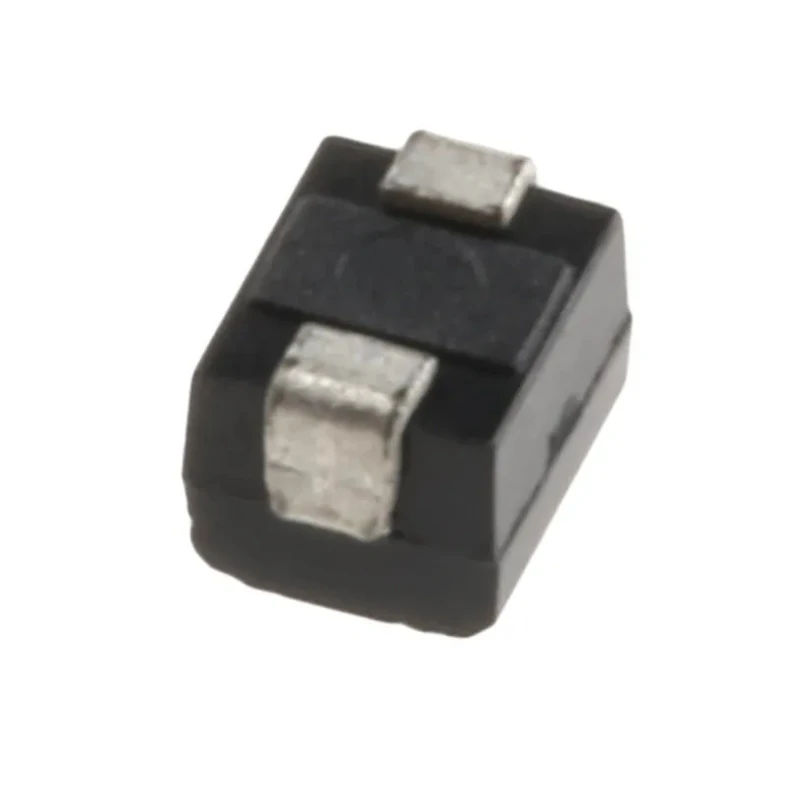

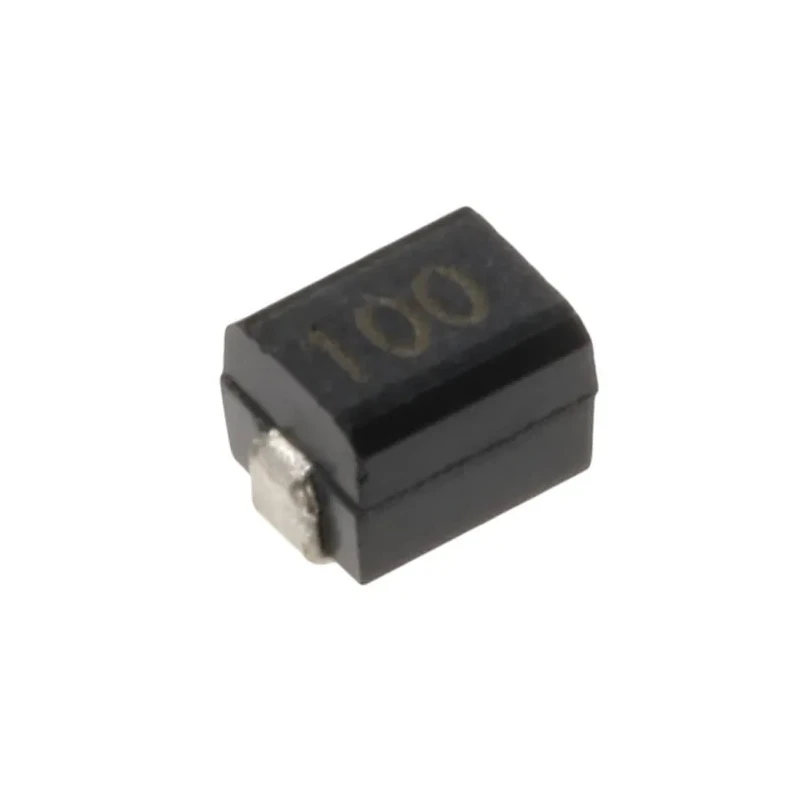

Bourns 1210 Shielded Wirewound Surface Mount Inductor with Ferrite Core 10 μH ±10 % 140 mA Idc Q:30 CM322522
Specifications
| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Height | 2.2mm |
| Length | 3.2mm |
| Model | CM322522 |
| Depth | 2.5mm |
| Packaging | Tape & Reel |
| Series | CM322522 |
| Maximum Operating Temperature | 100°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 10μH |
| Standards/Approvals | RoHS |
| Package/Case | 1210 |
| Maximum DC Current | 140mA |
| Pin Count | 2 |
| Maximum DC Resistance | 2.1Ω |
| Inductance Tolerance | ±10 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 36MHz |
| Minimum Quality Factor | 30 |
| Inductor Construction | Wirewound |
Key Features
- Wirewound construction provides stable inductance and low noise.
- Ferrite core enhances magnetic performance and shields against interference.
- Compact 1210 package size fits high-density PCB designs.
- Maximum DC resistance of 2.1 Ω ensures efficient current flow.
- Rated for operating temperatures from -40°C to 100°C for reliability in harsh conditions.
- Solder termination style ensures secure and reliable PCB mount.
- RoHS compliant with tape and reel packaging suitable for automated assembly.
- Maximum self-resonant frequency of 36 MHz supports high-frequency applications.
Product Description
Bourns CM322522 is a 1210 size shielded wirewound Surface Mount Inductor featuring a ferrite core designed for use in various electronic equipment including AV gear, wireless communications, and general electronics.
This wirewound inductor provides a nominal inductance of 10 μH with a tolerance of ±10 %, making it suitable for precision filtering and tuning applications. The maximum DC current rating of 140 mA and maximum DC resistance of 2.1 Ω ensure effective current handling with minimal losses.
The device operates reliably within a temperature range of -40°C to 100°C, making it viable for both commercial and industrial environmental conditions. Its molded resin construction with shielding minimizes electromagnetic interference, enhancing performance in sensitive circuits.
Wirewound construction offers excellent inductive properties and mechanical stability. Ferrite core material maximizes magnetic efficiency and helps shield against noise. Compact 1210 package dimensions (length 3.2 mm, height 2.2 mm, depth 2.5 mm) save PCB space.
Solder termination style ensures firm mounting and excellent electrical connection. RoHS compliant construction supports environmental standards. Packaged on tape and reel for efficient automated assembly lines. Designed for surface mount technology with a pin count of 2.
Minimum quality factor of 30 and maximum self-resonant frequency of 36 MHz for high-frequency applications. This inductor is ideal for industrial manufacturing, communication systems, consumer electronics, and HVAC control boards where compact, reliable inductors are required.
Explore more Precision Inductors and Components on EnvMart for your PCB and electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal inductance of this model is 10 μH with a tolerance of ±10%.
The maximum DC current rating for this inductor is 140 mA.
The dimensions of the 1210 package are 3.2 mm in length, 2.5 mm in depth, and 2.2 mm in height.
The maximum self-resonant frequency of the Bourns CM322522 is 36 MHz.
The maximum DC resistance of this inductor is 2.1 Ω.
This inductor operates reliably within a temperature range of -40°C to 100°C.
The core material used in this inductor is ferrite, which enhances magnetic performance and shields against interference.
The termination style for the Bourns CM322522 is solder, ensuring a secure and reliable PCB mount.
Yes, the Bourns CM322522 is RoHS compliant, supporting environmental standards.
The minimum quality factor of this inductor is 30.
The Bourns CM322522 is packaged on tape and reel, suitable for automated assembly.
This inductor is suitable for use in various electronic equipment, including AV gear, wireless communications, and general electronics.
