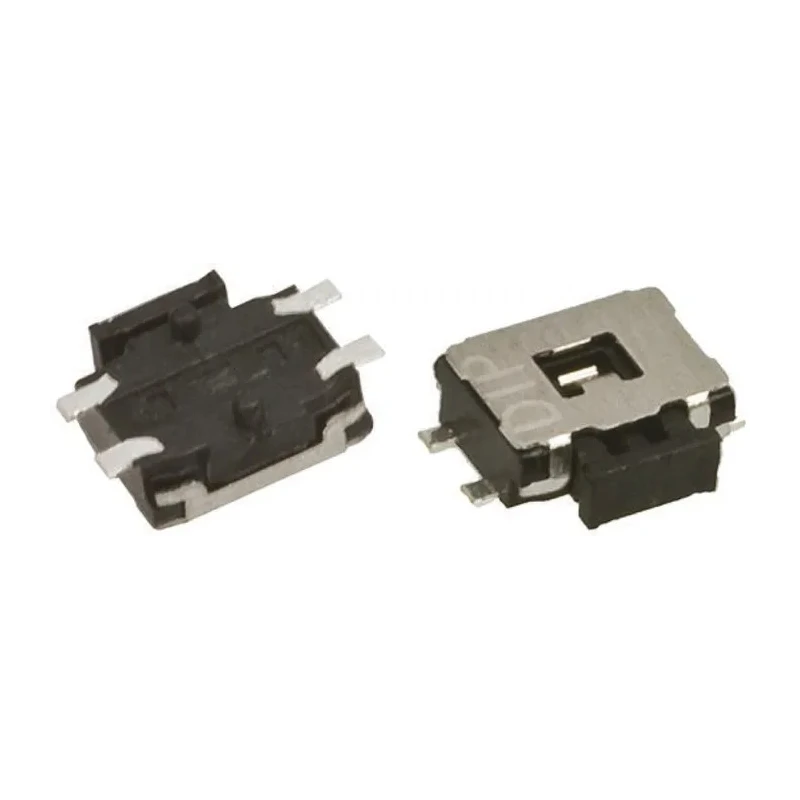

APEM Tactile Switch SPST Momentary 50mA 12V DC Surface Mount PTCFV
Specifications
| Country of Origin | China |
|---|---|
| Brand | APEM |
| Height | 1.4mm |
| Length | 3.5mm |
| Model | PTCFV |
| Width | 4.7mm |
| Series | PTCF |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -25°C |
| Terminal type | Surface Mount |
| Standards/Approvals | RoHS |
| Switch Operation | Momentary |
| Contact DC Voltage | 12V dc |
| Actuator Style | Tactile |
| Switch Contact Current | 50mA |
| Operating Force | 2.2N |
| Mechanical Life | 100000Operations |
| Vibration Test | MIL-STD-202F METHOD 201A. (TM533) |
| APEM IP65 Red Tactile Switch Tactile, 9.4 mm, SPST 50mA 12 V dc, SurfaceBrand | APEM |
Key Features
- The switch has a compact size with a length of 3.5 mm, width of 4.7 mm, and height of 1.4 mm.
- Operates reliably within temperature range of -25°C to 70°C.
- Operating force is 2.2 N, providing tactile feedback for user interfaces.
- Designed to meet RoHS standards and tested for vibration per MIL-STD-202F METHOD 201A (TM533).
- Mechanical life expectancy of 100,000 operations ensures durability.
- Constructed with insert moulding in the contact to prevent flux build-up for better soldering reliability.
- Suitable for electrical, automation, and control equipment requiring reliable tactile switches.
Product Description
APEM PTCFV tactile switch is a surface mount SPST (Single Pole Single Throw) momentary switch designed for low current electronic applications operating at 12 V DC with a maximum contact current rating of 50mA. This compact switch measures 3.5 mm in length, 4.7 mm in width, and 1.4 mm in height. It operates effectively within a wide temperature range from -25°C to 70°C, making it suitable for various industrial and electronic environments.
The switch actuates with an operating force of 2.2 N, providing a reliable tactile feedback essential for keyboard and control panel interfaces. Its mechanical durability ensures 100,000 operation cycles, underlining its suitability for applications requiring long-lasting components.
Designed in compliance with RoHS directives, this switch incorporates a specialized insert moulded contact with a unique treatment to prevent flux build-up during soldering, allowing for automatic dipping in manufacturing processes. It also undergoes rigorous vibration testing (MIL-STD-202F METHOD 201A, TM533) to guarantee performance stability in demanding conditions.
Commonly used in electrical automation systems, communication devices, and instrumentation equipment, the APEM PTCFV tactile switch is engineered for precision and endurance in industrial, laboratory, and commercial equipment.
The switch features a SPST contact configuration. It is designed for surface mount installation, aiding efficient PCB assembly. Provides momentary switch operation suited for user interfaces. RoHS compliant for environmental and safety standards.
Mechanical life rated at 100,000 operations for extended reliability. Tested to MIL-STD-202F standards ensuring vibration resistance. Compact form factor compatible with modern electronic designs. Explore more Tactile Switches and components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This tactile switch measures 3.5 mm in length, 4.7 mm in width, and 1.4 mm in height.
It operates effectively within a temperature range of -25°C to 70°C.
The maximum contact current rating for this switch is 50 mA.
This model features a Single Pole Single Throw (SPST) contact configuration.
The switch requires an operating force of 2.2 N for actuation.
The mechanical life expectancy of this switch is rated at 100,000 operations.
Yes, it is designed in compliance with RoHS standards.
This tactile switch is designed for surface mount installation, which aids in efficient PCB assembly.
It has been tested for vibration per MIL-STD-202F METHOD 201A (TM533) to ensure performance stability.
It is commonly used in electrical automation systems, communication devices, and instrumentation equipment.
The switch features a tactile actuator style, providing tactile feedback for user interfaces.
The country of origin for this tactile switch is China.
