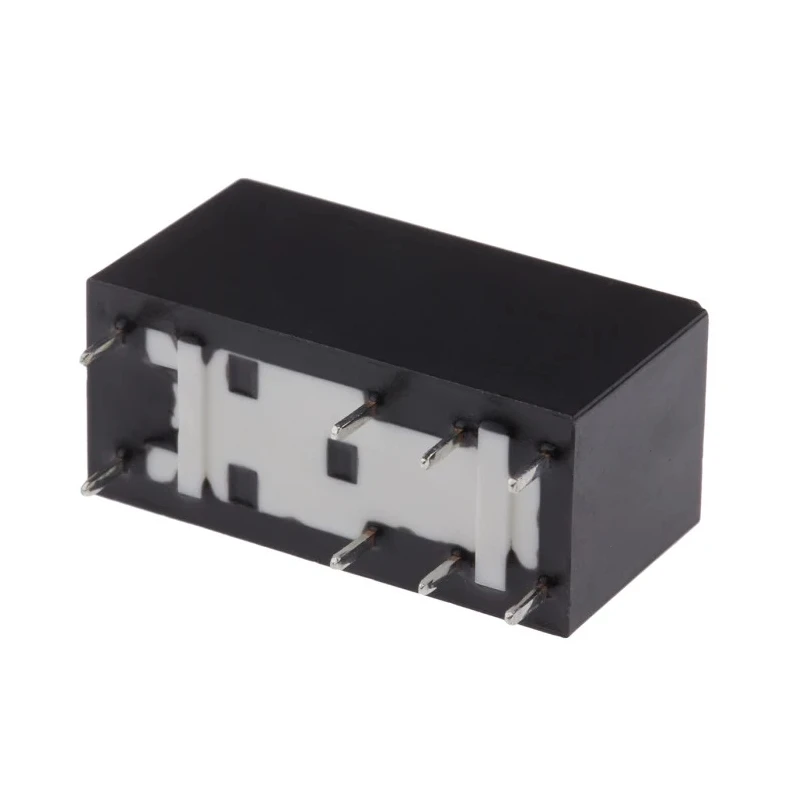

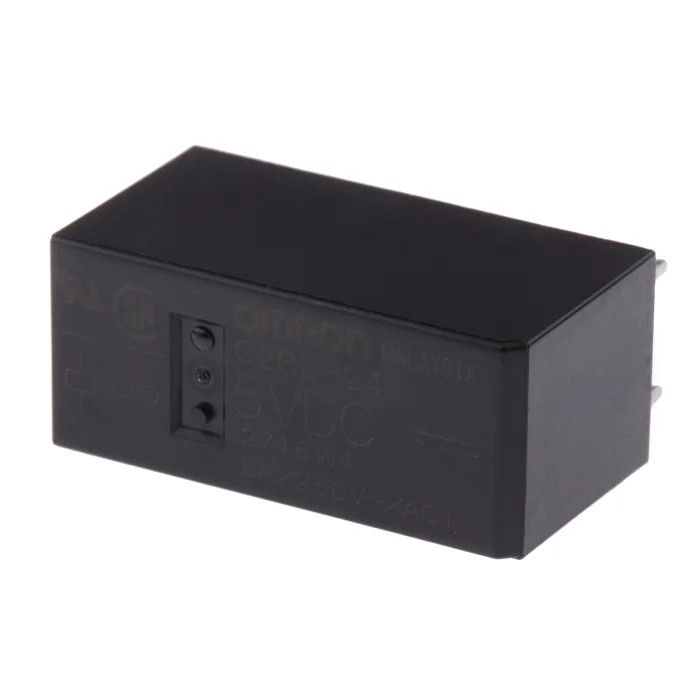

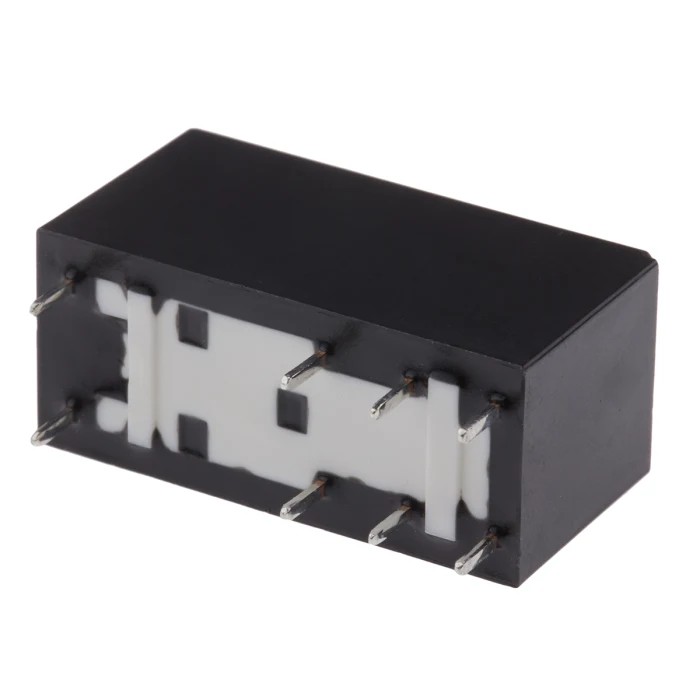

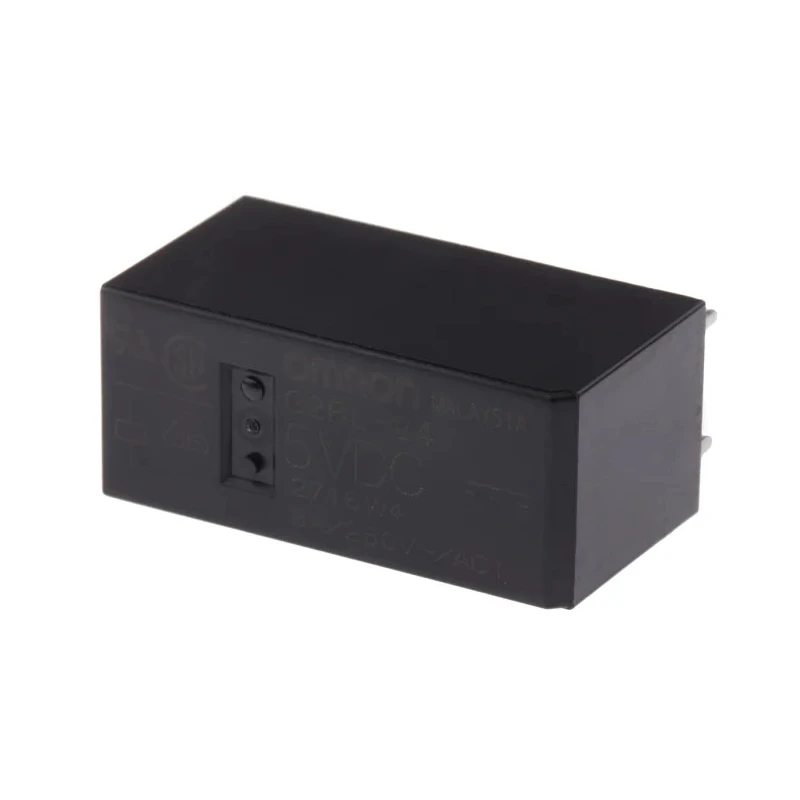

Omron PCB Power Relay 5V dc Coil 5A Switching Current DPDT G2RL-24 DC5
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Omron |
| Height | 15.7mm |
| Length | 29mm |
| Model | G2RL-24 DC5 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G2RL |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 5A |
| Terminal type | Through Hole |
| Standards/Approvals | IEC, VDE, UL, RoHS, EN, CSA |
| Coil Resistance | 62.5Ω |
| Coil Voltage | 5V dc |
| Switching AC Voltage | 250V ac |
Key Features
- Coil voltage rated at 5V dc for low power activation.
- Double-pole double-throw (DPDT) contact configuration allows versatile switching.
- Switching current capacity of 5A suitable for moderate load control.
- Compact footprint with dimensions 15.7mm height, 12.7mm width, and 29mm length.
- Through-hole terminal type designed for PCB mounting.
- Operating temperature range from -40°C to 85°C supports harsh environments.
- Contact material uses silver alloy ensuring durability and conductivity.
- Coil resistance of 62.5Ω providing consistent coil performance.
Product Description
Omron G2RL-24 DC5 PCB Power Relay is a robust and versatile power relay designed for PCB mounting applications requiring reliable switching up to 5A at 250V AC.
This DPDT relay incorporates a 5V DC coil that enables easy integration into low voltage control circuits while ensuring efficient operation with a coil resistance of 62.5 ohms. Compact dimensions of 15.7mm height, 12.7mm width, and 29mm length allow installation in space-constrained environments.
Constructed with silver alloy contact material, the relay ensures superior conductivity and longevity, while also meeting stringent international approvals such as IEC, VDE, UL, RoHS, EN, and CSA that guarantee compliance with global standards.
Designed to operate in a wide temperature range from -40°C to 85°C, this relay is suitable for industrial automation, electrical systems, manufacturing equipment, control panels, and other applications demanding reliable power switching in challenging conditions.
The relay’s through-hole terminal design facilitates secure mounting on PCBs, improving durability and connection stability in automated assembly processes. With tracking resistance CTI > 250, it is optimized to prevent electric tracking and increase safety.
Coil voltage rated at 5V dc for low power activation. Double-pole double-throw (DPDT) contact configuration allows versatile switching. Switching current capacity of 5A suitable for moderate load control. Compact footprint with dimensions 15.7mm height, 12.7mm width, and 29mm length.
Through-hole terminal type designed for PCB mounting. Operating temperature range from -40°C to 85°C supports harsh environments. Contact material uses silver alloy ensuring durability and conductivity. Coil resistance of 62.5Ω providing consistent coil performance.
Meets international standards including IEC, VDE, UL, RoHS, EN, and CSA certification.
This Omron G2RL series relay is ideal for industrial, electrical automation, manufacturing, control, and instrumentation sectors requiring dependable power relay solutions. Explore a wide range of high quality relays and components on EnvMart to optimize your electronic designs and production.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is rated at 5V DC, allowing for low power activation in control circuits.
It has a switching current capacity of 5A, making it suitable for moderate load control applications.
This model has compact dimensions of 15.7mm in height, 12.7mm in width, and 29mm in length.
The relay features a double-pole double-throw (DPDT) contact configuration, allowing for versatile switching options.
It operates within a temperature range of -40°C to 85°C, making it suitable for harsh environments.
The contact material is made of silver alloy, which ensures good conductivity and durability.
This relay features a through-hole terminal type designed for secure PCB mounting.
It meets several international standards including IEC, VDE, UL, RoHS, EN, and CSA.
The coil resistance is 62.5Ω, which provides consistent coil performance.
It is suitable for applications in industrial automation, electrical systems, manufacturing equipment, and control panels.
The maximum switching AC voltage for the G2RL-24 DC5 is 250V AC.
This relay belongs to the G2RL series, which is known for its reliability in power switching applications.
