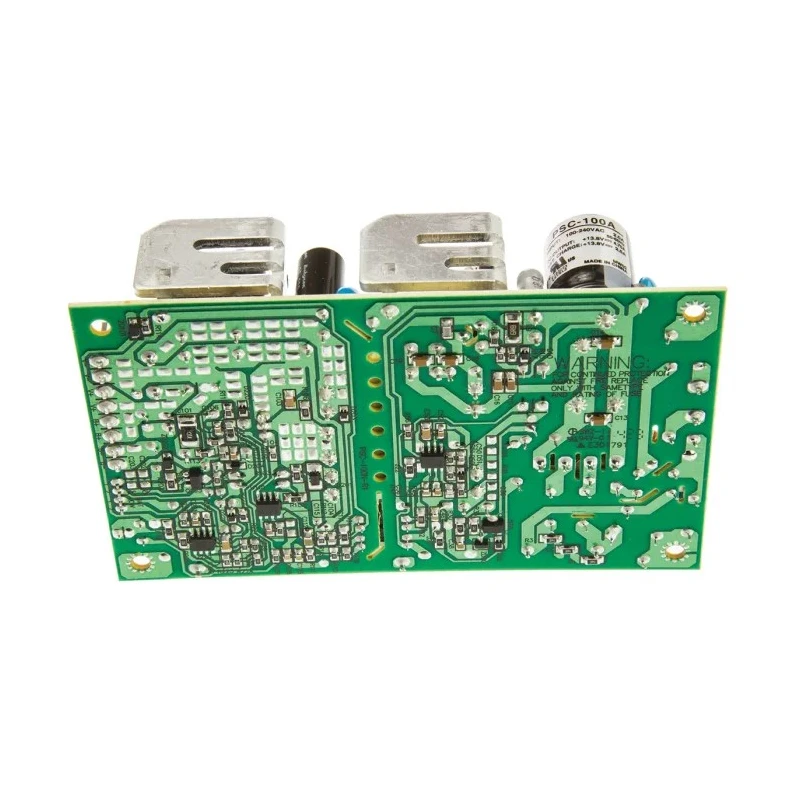

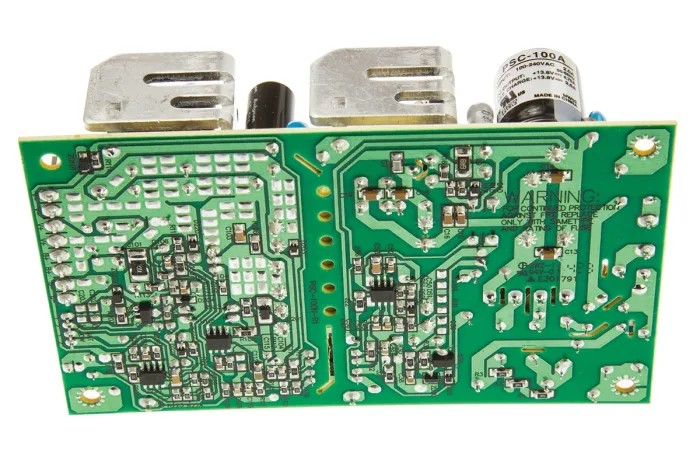

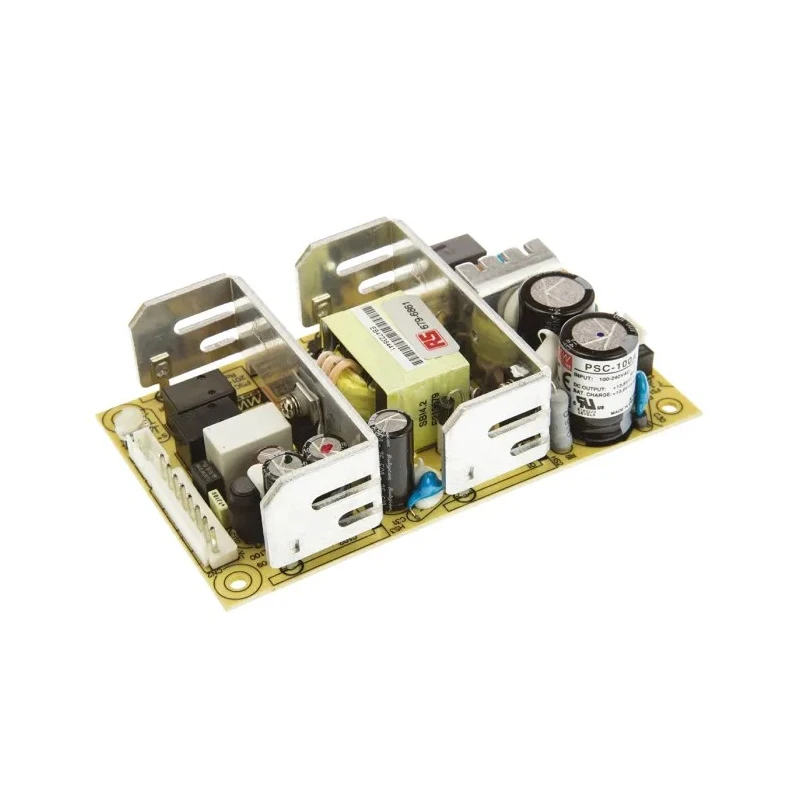

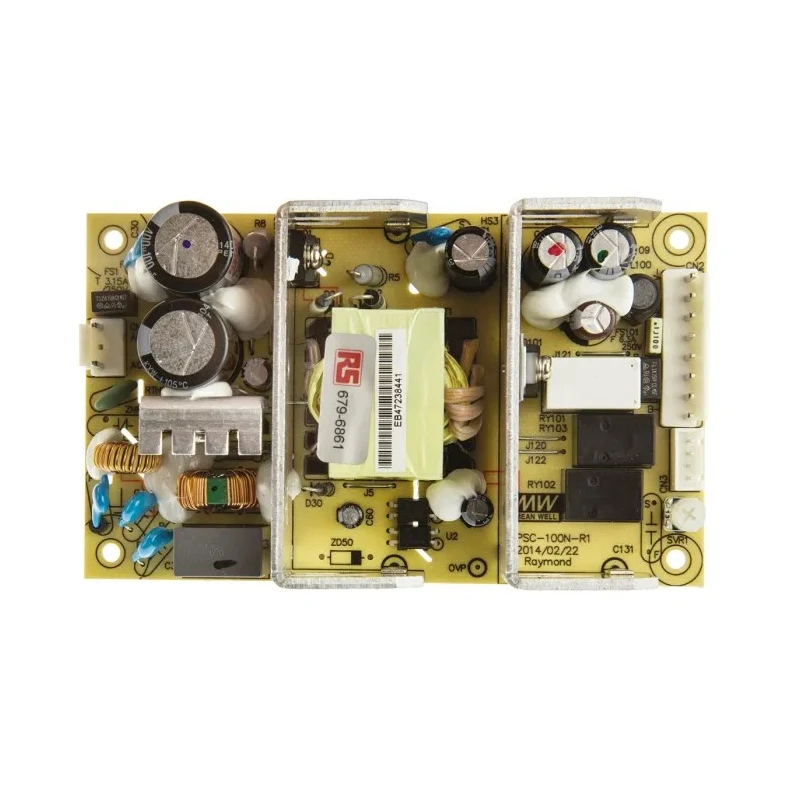

MEAN WELL PSC-100A Switching Power Supply 2 Output 13.8V DC 100W 370V DC/264V AC Chassis Mount Taiwan PSC-100A
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | MEAN WELL |
| Power | 100W |
| Efficiency | 86% |
| Length | 127mm |
| Model | PSC-100A |
| Depth | 31mm |
| Gross Weight | 230g |
| Width | 31mm |
| Mount Type | Chassis |
| Series | PSC |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -20°C |
| Number of outputs | 2 |
| Maximum Input Voltage | 370, 264V dc |
| Maximum Output Voltage | 13.8V dc |
| SMPS Output Current | 4.75A |
| Minimum Input Voltage | 90V ac |
Key Features
- Equipped with dual outputs ensuring versatility for battery backed and monitoring applications.
- Supports a universal AC input voltage range of 90V AC minimum to a maximum of 370V DC or 264V AC.
- Mount type is chassis mount with compact dimensions of 127mm length, 31mm width, and 31mm depth.
- Features short circuit, overload, and over-voltage protection for enhanced reliability.
- High efficiency of 86% promotes energy savings during operation.
- Designed to operate in temperatures from -20°C to 70°C with natural cooling by free air convection.
- Includes battery charger UPS function with battery low and polarity protection via fuse.
- Conforms to multiple international safety standards including UL 62368-1 and TUV BS EN 62368-1.
Product Description
MEAN WELL PSC-100A Switching Power Supply with model PSC-100A provides 2 output channels delivering 13.8V DC at 4.75A current with a total power capacity of 100W. It supports universal AC input voltages ranging from 90V AC to a maximum of 370V DC or 264V AC. This chassis mount unit measures 127mm by 31mm by 31mm and weighs approximately 230 grams.
Designed for industrial, electronic components, power supply, and battery backup applications, the PSC-100A series incorporates short circuit, overload, and over-voltage protections along with battery low and polarity protections by fuse. It includes a battery charger UPS function ideal for continuous power requirements and monitoring in laboratory, manufacturing, and commercial environments.
The power supply operates efficiently at 86% efficiency with natural cooling via free air convection, ensuring reliable thermal management without additional fans. It is compliant with numerous international safety standards such as UL 62368-1, TUV BS EN 62368-1, IS 13252 Part 1/IEC 60950-1, EAC TP TC 00, CSA C22.2 No. 62368-1, CCCGB4943.1, BSMI CNS143361, and AS/NZS62368.1, ensuring safety and quality.
Dual output switching power supply suitable for battery charging and power backup systems. Universal AC input supports wide voltage range for diverse geographic requirements. Includes advanced protections against electrical faults and battery issues.
Compact chassis mount form factor for efficient space usage in panels and cabinets. High reliability guaranteed by 100% full load burn-in testing at 25°C MTBF. Versatile industrial and commercial applicability including electronic, HVAC, and manufacturing sectors.
Battery charger UPS functionality supports 12V 15Ah battery charging within 4 hours.
This product is made in Taiwan, Province of China, and is ideally suited for professionals seeking a dependable Switching Power Supply with reliable performance and international approvals. Explore more power supplies in the Electronics & Electricals category at EnvMart for your industrial and laboratory power requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PSC-100A provides a total power output of 100W.
This model has dimensions of 127mm in length, 31mm in width, and 31mm in depth.
The maximum output voltage is 13.8V DC.
It features two output channels.
The operating temperature range is from -20°C to 70°C.
This unit is designed for chassis mounting.
It includes short circuit, overload, and over-voltage protections, as well as battery low and polarity protections via fuse.
It operates with an efficiency of 86%.
This model weighs approximately 230 grams.
Yes, it conforms to multiple international safety standards including UL 62368-1 and TUV BS EN 62368-1.
It is designed for industrial, electronic components, power supply, and battery backup applications.
