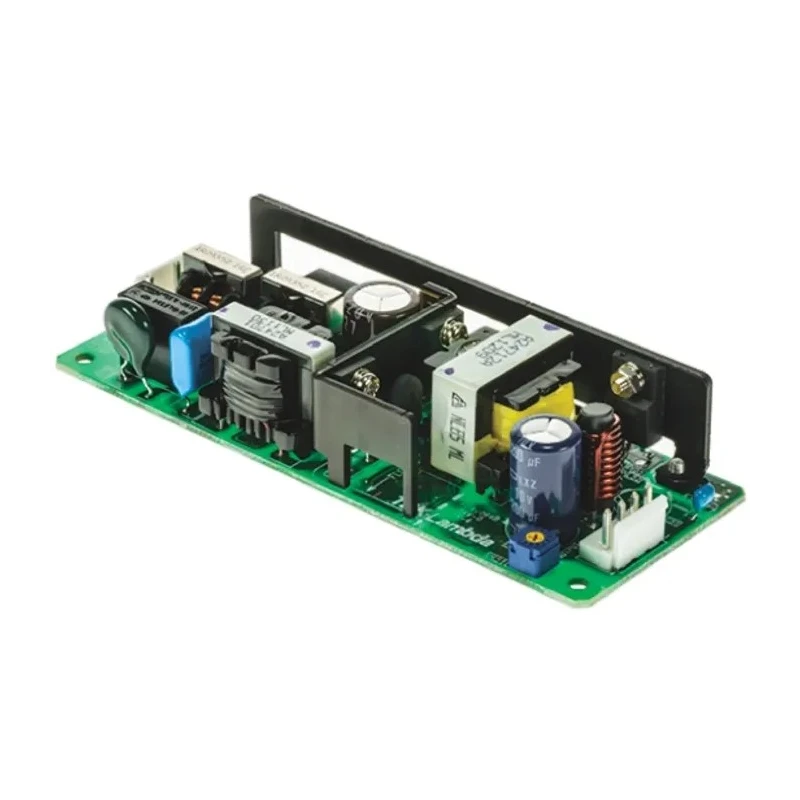

TDK-Lambda ZWS100BAF-24 Switching Power Supply 24 V DC, 103 W, Chassis Mount, 4.3 A Output Current ZWS100BAF-24

TDK-Lambda ZWS100BAF-24 switching power supply is a high-efficiency, reliable device designed for industrial and commercial electronic power management. It provides a maximum DC output voltage of 24 V and continuous power output of 103 W with a current capacity of 4.3 A. The product features a chassis mount design with compact dimensions of 185 mm length, 72 mm width, and 72 mm depth.

With a wide input voltage range spanning 85 V AC minimum to 370 V DC maximum, this power supply supports varied power sources. It is convection cooled, removing the need for additional cooling fans, thus reducing noise and maintenance.

The operational temperature range of -10°C to 70°C allows this power supply to maintain performance reliability under challenging environmental conditions. Additional protections include over current and over voltage safeguards along with high input transient protection, making it suitable for demanding industrial, manufacturing, HVAC, laboratory, and factory automation tasks.

This Switching Power Supply complies with numerous international standards including IEC/UL/CSA/EN 62368-1, EN 55011, EN 55022-B, EN 61000 series immunity standards, FCC Class B, and CE certification, ensuring electromagnetic compatibility and safety requirements are met.

Its active power factor correction (PFC) reaches typical values of 0.98/0.93, improving energy efficiency and reducing harmonic distortion. Applications are broad-ranging including LED signage systems, test and measurement instruments, light industrial equipment, and factory automation controls.

Compact chassis mount design suitable for varied industrial applications. Wide input voltage range from 85 V AC minimum to 370 V DC maximum. Operating temperature range from -10°C to 70°C enables stable operation in diverse environments.

Efficiency rating of 89% ensures energy-efficient performance. Includes multiple safety and compliance standards such as IEC, UL, CSA, CE, and FCC. High input transient protection and convection cooled for reliable use. Over current and over voltage protections incorporated for operational safety.

Active power factor correction (PFC) compliant with EN61000-3-2 standards. Typical applications include factory automation, LED signage, test and measurement, and light industrial equipment.

Choose TDK-Lambda power supplies for robust, efficient, and safe switching power solutions applicable across industrial, manufacturing, commercial, HVAC, and laboratory sectors. Explore more switching power supplies and related products to find the best fit for your application needs.
